What is the working load limit of this REMA eye bolt?

The safe working load limit (WLL) is 2500 kg for straight, axial lifting.

What thread size and thread length does this eye bolt have?

It features a metric M27 thread with a thread length of 36 mm.

What is the inner diameter of the eye?

The inner eye diameter measures 50 mm.

Can this eye bolt be loaded at an angle or sideways?

No, standard DIN 580 eye bolts must only be loaded in a straight vertical pull.

What material and finish are used?

It is manufactured from C15E steel with a zinc-plated surface finish.

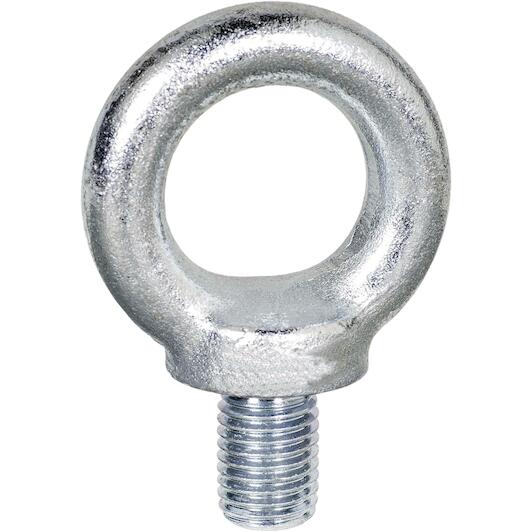

REMA DIN580-C15E-M27-2500KG eye bolt (M27-2500kg) - 3015115

Name: REMA DIN580-C15E-M27-2500KG eye bolt (M27-2500kg) - 3015115
Brand: REMA
SKU: 03047665
Price: 39.69 EUR
Availability: PreOrder

Supplier number: REMA 3015115 | EAN 8717365183591

39.69 tax incl.

€32.80 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/11/2026

Ordered before 20:00 - delivered as of 14/11/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Reliable lifting for heavy loads

Practical benefits

High safe working load: You lift heavy equipment and machinery with confidence thanks to the 2500 kg load capacity.
Forged C15E steel body: Manufactured to DIN 580 standards, the C15E steel provides you with dependable strength under demanding conditions.
Durable zinc plated finish: The protective galvanized coating shields the M27 thread and lifting eye against rust and wear.

In a nutshell

The right choise for

With the Rema din 580 eye bolt M27, you establish a reliable and certified lifting point for moving heavy machinery and structural parts. Forged from sturdy C15E steel, it provides a safe working load of 2500 kg for dependable axial lifting operations. The metric M27 thread with a 36 mm thread length ensures secure fastening into tapped holes, while the 50 mm inner eye diameter accommodates lifting hooks, chains, and shackles with ease. Thanks to the protective zinc-plated finish, the eye bolt remains well protected against corrosion and wear in industrial environments. It delivers the strength and security you need for heavy-duty lifting.

Product information FAQ

€39.69

tax incl.

Key features according to our expert

Lifting point type: Eye bolt
Diameter (eye): 50 mm
Surface treatment (lifting point): Zinc plated
Thread designation: M27
Length (thread): 36 mm
Standard: DIN 580
Max. working load: 2,5 t

Product description

In accordance with DIN 580. Galvanised. Material: C-15E. The safe working load applies exclusively to lifting and pulling in a straight line. The lifting eye must not be subjected to lateral loads. IMPORTANT! Suitable for vertical use only.

All Features

Lifting point type: Eye bolt
Diameter (eye): 50 mm
Surface treatment (lifting point): Zinc plated
Thread designation: M27
Length (thread): 36 mm
Standard: DIN 580
Max. working load: 2,5 t
Weight: 1.22 kg/st/m

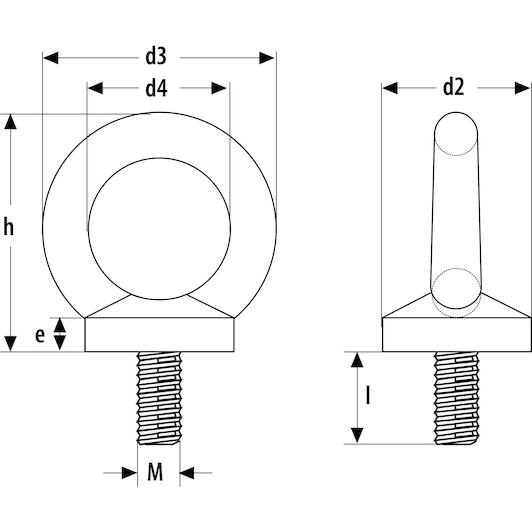

M: 27 mm
D3: 90 mm
Safe working load: 2500 kg
L: 36 mm
D2: 50 mm
E: 18 mm
H: 90 mm
D4: 50 mm

Brand REMA
03047665
EAN 8717365183591
Supplier number REMA 3015115

Frequently asked questions about this product

Answered by specialists

What is the working load limit of this REMA eye bolt?: The safe working load limit (WLL) is 2500 kg for straight, axial lifting.
What thread size and thread length does this eye bolt have?: It features a metric M27 thread with a thread length of 36 mm.
What is the inner diameter of the eye?: The inner eye diameter measures 50 mm.
Can this eye bolt be loaded at an angle or sideways?: No, standard DIN 580 eye bolts must only be loaded in a straight vertical pull.
What material and finish are used?: It is manufactured from C15E steel with a zinc-plated surface finish.
