Product Description:
- Phantom HSS Circular Saw Blade steam oxide
- With universal pinholes

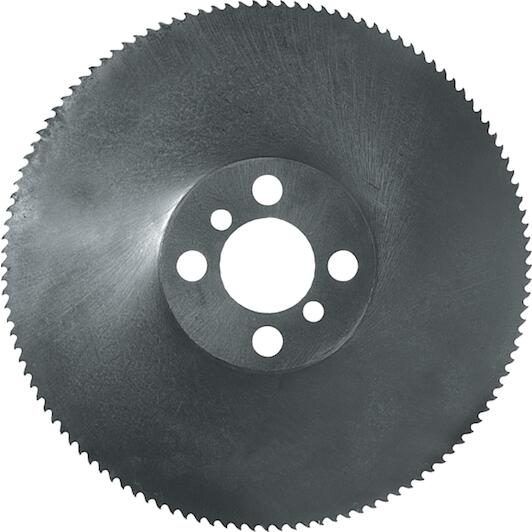

PHANTOM 634003518 HSS circular saw blade for cut-off saw steam extraction 350x3x32mm Z180 C / HZ
325.21
tax incl.
€268.77 excl. VAT (incl. all environmental contributions)
Key features according to our expert
- Saw blade diameter: 350 mm
- Bore size: 32 mm
- Number of teeth: 180
- Kerf width: 3 mm
- For material: Steel; Aluminium; Copper; Plastic; Grey cast iron
- Mounting (saw blade/cutter): Round
Specifications / All features
- Brand: PHANTOM
- EAN: 8716563415336
- Supplier number: PHANTOM 634003518
- Saw blade diameter
- 350 mm
- Bore size
- 32 mm
- Number of teeth
- 180
- Kerf width
- 3 mm
- For material
- Steel; Aluminium; Copper; Plastic; Grey cast iron
- Mounting (saw blade/cutter)
- Round

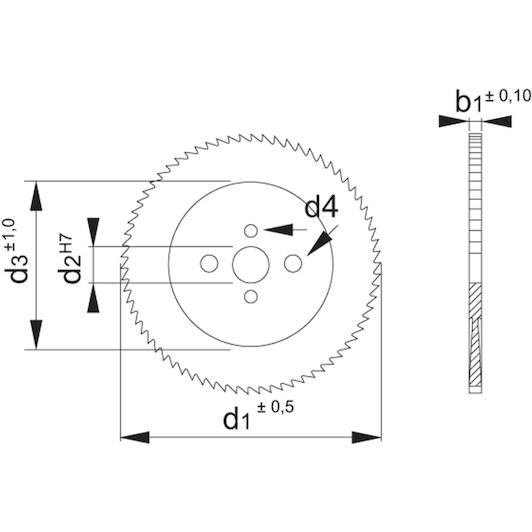

- Pin hole (d4)
- 2/8-45+4/11-63
- Saw diameter (d1)
- 350 mm
- Number of teeth (z)
- 180
- Tolerance d2 (tol. d2)
- H7
- Pitch (t)
- 6 mm
- Hub ø (d3)
- 120 mm
- Tolerance d1 (tol. d1)
- ±0,5
- Bore ø (d2)
- 32 mm
- Shank type
- Bore
- Thickness (b1)
- 3 mm
- Surface
- OXIDE
- Tooth shape
- C(HZ)
- Tool material
- HSS
