PHANTOM

PHANTOM 634003170 HSS circular saw blade for steam-detonated cut-off saw 315x2'5x40mm Z200 C / HZ

225.76 tax incl.
€186.58 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 2 products in stock.
each

  • Ordered before 20:00 - delivered tomorrow 03/07/2026
  • Free shipping
  • Delivery by DHL

Product Description:

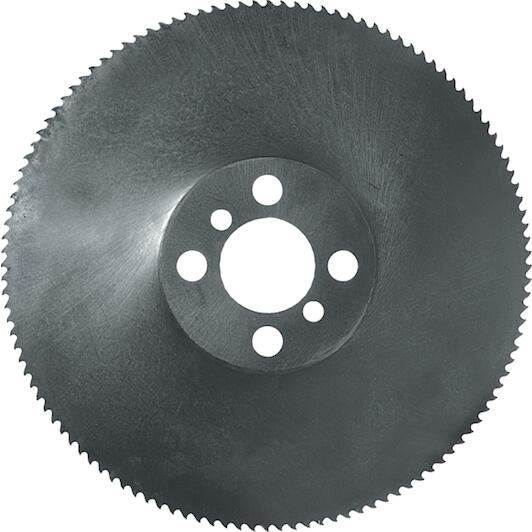

  • Phantom HSS Circular Saw Blade steam oxide
  • With universal pinholes
Key features according to our expert
  • Saw blade diameter: 315 mm
  • Bore size: 40 mm
  • Number of teeth: 200
  • Kerf width: 2,5 mm
  • For material: Steel; Aluminium; Copper; Plastic; Grey cast iron
  • Mounting (saw blade/cutter): Round
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563415282
  • Supplier number: PHANTOM 634003170
Saw blade diameter
315 mm
Bore size
40 mm
Number of teeth
200
Kerf width
2,5 mm
For material
Steel; Aluminium; Copper; Plastic; Grey cast iron
Mounting (saw blade/cutter)
Round

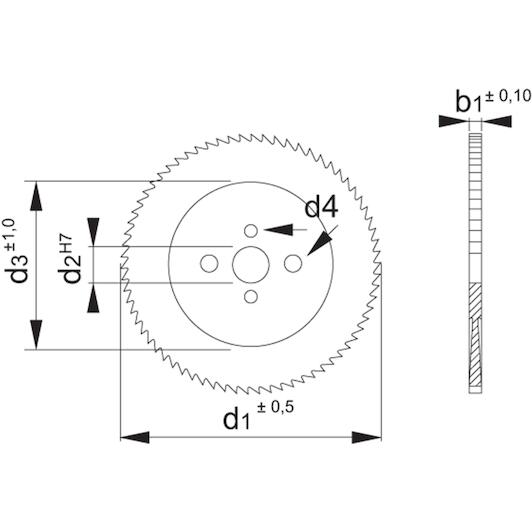

Pin hole (d4)
2/8-55+4/12-64
Saw diameter (d1)
315 mm
Number of teeth (z)
200
Tolerance d2 (tol. d2)
H7
Pitch (t)
5 mm
Hub ø (d3)
100 mm
Tolerance d1 (tol. d1)
±0,5
Bore ø (d2)
40 mm
Shank type
Bore
Thickness (b1)
2,5 mm
Surface
OXIDE
Tooth shape
C(HZ)
Tool material
HSS
