Product Description:
- Phantom HSS Annular Cutter cutting depth 55 mm
- Long series, Weldon type diam. 19 mm and quick change shank
Supplier number:
PHANTOM 621501400
|
EAN
8716563238034
37.28
tax incl.
€30.81 excl. VAT (incl. all environmental contributions)
Accurate and deep drilling
Practical benefits- High cutting depth capacity: With a 55 mm cutting depth, you bore cleanly through thick steel and structural metal components.
- Secure Phantom Weldon shank: The 19 mm Weldon connection provides solid tool clamping and dependable torque transfer on magnetic drills.
- Resilient HSS-EX steel: Crafted from premium HSS-EX alloy, it delivers heat resistance and prolonged sharpness on the 14 mm edge.
In a nutshell

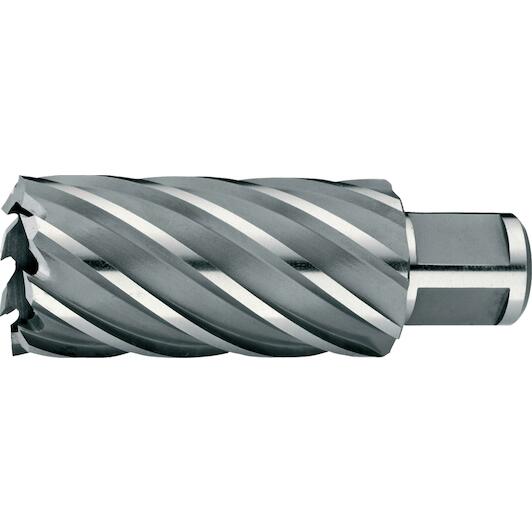

The right choise forWith the Phantom 621501400 hss-ex annular cutter, you drill clean and precise holes through thick metal components without pre-drilling. Featuring a 55 mm cutting depth and a 14 mm diameter, this core drill bit cuts only the perimeter of the hole to save energy and reduce machine strain. The durable hss-ex alloy provides dependable heat resistance and long-lasting edge sharpness when working with unalloyed and alloyed structural steel. Equipped with a standard 19 mm Weldon shank, it ensures secure clamping and solid torque transfer on your magnetic drill or pillar drill.
Product information
Key features according to our expert
- Diameter: 14 mm
- Connection profile: Weldon
- For material: Metal

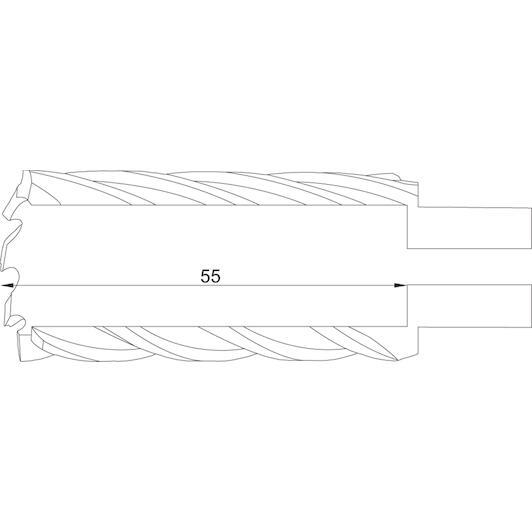

- Cutting length: 55 mm
All Features
- Diameter
- 14 mm
- Connection profile
- Weldon
- For material
- Metal
- Cutting length
- 55 mm
- Surface
- Bright
- Drill diameter (d1)
- 14 mm
- Shank (d2)
- 19 mm
- Tolerance d1 (tol. d1)
- h11
- Cutting depth (ap)
- 55 mm
- Shank type
- Weldon
- Tool material
- HSS-EX
- Brand PHANTOM
- EAN 8716563238034
- Supplier number PHANTOM 621501400
Frequently asked questions about this product
Answered by specialists
- What type of shank does this core drill bit have?
- This core drill features a standard Weldon 19 mm (3/4") shank with clamping flats.
- What is the maximum cutting depth of this drill?
- The maximum cutting depth is 55 mm.
- What drilling diameter does this model produce?
- The drilling diameter is 14 mm.
- Which materials is this HSS-EX annular cutter suitable for?
- It is designed for metals, particularly alloyed and unalloyed structural steel.
- Which machines can this cutter be used on?
- You can use it on magnetic drilling machines and pillar drills fitted with a 19 mm Weldon tool holder.
