What are the cutting diameter and depth of this core drill bit?

This core drill bit has a diameter of 13 mm and a maximum cutting depth of 30 mm.

Which shank type does the Phantom 621221300 core drill have?

It features a standard Weldon-19 (3/4") shank with 2 clamping flats for magnetic drilling machines.

Which materials is this core drill bit suitable for?

It is suitable for metal, including structural steel, alloyed steel, cast iron, and stainless steel.

What is the advantage of the nitrided HSS-EX construction?

The nitriding treatment increases surface hardness, reduces friction, and extends tool life.

Do you need a pilot pin with this annular cutter?

Yes, a pilot pin is used for precise centring and automatic ejection of the cut core.

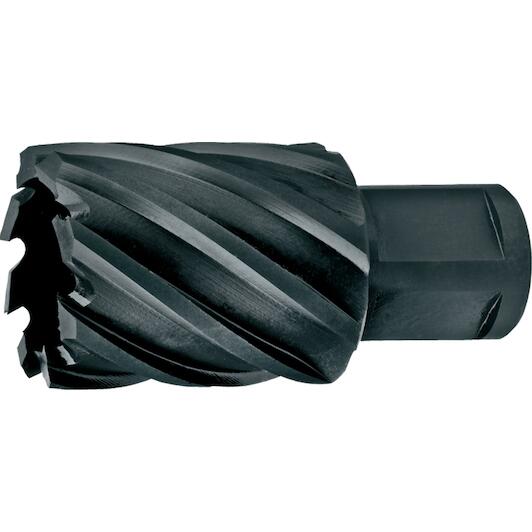

PHANTOM 621221300 HSS-EX core drill nitrided' cutting depth 30 mm 13 mm

Name: PHANTOM 621221300 HSS-EX core drill nitrided' cutting depth 30 mm 13 mm
Brand: PHANTOM
SKU: 02311555
Price: 29.51 EUR
Availability: InStock

Supplier number: PHANTOM 621221300 | EAN 8716563575672

29.51 tax incl.

€24.39 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 03/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Precise metal drilling by Phantom

Practical benefits

Nitrided wear resistance: The nitrided HSS-EX steel withstands high friction and heat, allowing you to achieve long tool life and clean cuts.
Reliable Weldon shank grip: The standardized WELDON-19 connection ensures solid clamping in your magnetic drill spindle for slip-free torque transfer.
Efficient metal core drilling: Designed with a 30 mm cutting depth, you core smoothly through metal structures with minimal effort and fast chip evacuation.

In a nutshell

The right choise for

Drill faster and more accurately through metal with the Phantom 621221300 hss-ex core drill bit. Its nitrided surface treatment protects the hss-ex steel against friction and heat, delivering extended tool life and clean cuts. With a 13 mm diameter and a 30 mm cutting depth, you core smoothly through structural steel and other metals without the need for pilot holes. The standard WELDON-19 shank provides a secure, slip-free grip in your magnetic drilling machine, ensuring dependable control and efficiency on every job.

Product information FAQ

€29.51

In stock - tax incl.

Key features according to our expert

Diameter: 13 mm
Connection profile: Weldon
For material: Metal
Cutting length: 30 mm

Product Description:

Phantom HSS-Co Annular Cutter nitrided cutting depth 30 mm
Short series, Weldon type diam. 19 mm and quick change shank

All Features

Diameter: 13 mm
Connection profile: Weldon
For material: Metal
Cutting length: 30 mm
Surface: Nitride
Drill diameter (d1): 13 mm
Shank (d2): 19 mm
Tolerance d1 (tol. d1): h11

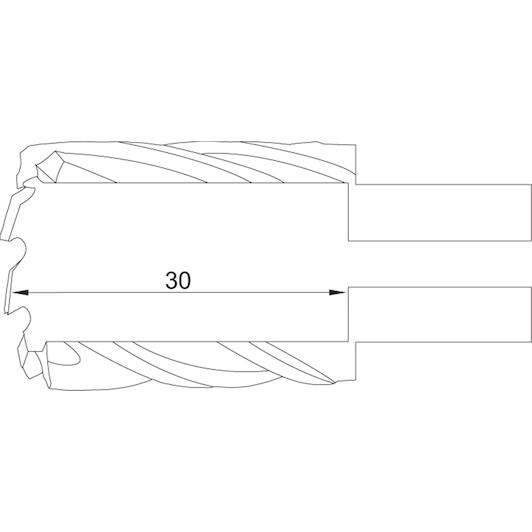

Cutting depth (ap): 30 mm
Shank type: Weldon
Tool material: HSS-EX

Brand PHANTOM
02311555
EAN 8716563575672
Supplier number PHANTOM 621221300

Frequently asked questions about this product

Answered by specialists

What are the cutting diameter and depth of this core drill bit?: This core drill bit has a diameter of 13 mm and a maximum cutting depth of 30 mm.
Which shank type does the Phantom 621221300 core drill have?: It features a standard Weldon-19 (3/4") shank with 2 clamping flats for magnetic drilling machines.
Which materials is this core drill bit suitable for?: It is suitable for metal, including structural steel, alloyed steel, cast iron, and stainless steel.
What is the advantage of the nitrided HSS-EX construction?: The nitriding treatment increases surface hardness, reduces friction, and extends tool life.
Do you need a pilot pin with this annular cutter?: Yes, a pilot pin is used for precise centring and automatic ejection of the cut core.
