Product Description:

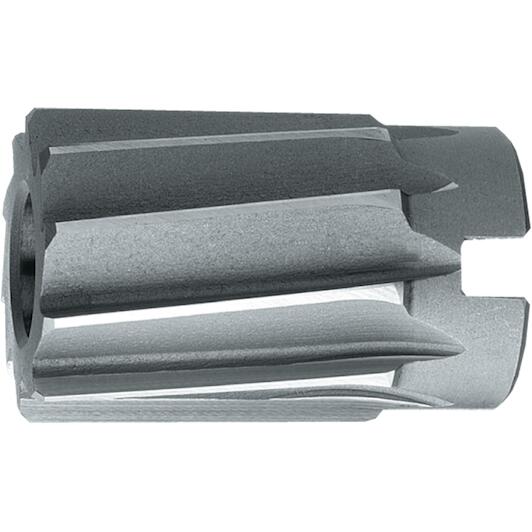

- Phantom HSS Shell Reamer DIN 219 B H7
- DIN 219 B, left hand spiral
Supplier number:
PHANTOM 516504700
|
EAN
8716563279099
450.75
tax incl.
€372.52 excl. VAT (incl. all environmental contributions)
Accurate finishing for precision bores
Practical benefits- Exact H7 hole tolerance: You achieve consistently precise 47 mm bore dimensions with an exceptional surface finish every time.
- Smooth continuous chip removal: The spiral flutes designed to DIN 219-B allow you to clear metal chips cleanly during reaming.
- Durable Phantom HSS body: High-speed steel construction gives you extended tool life and dependable performance across demanding metalworking tasks.
In a nutshell
The right choise forWith the Phantom hss shell reamer 51.650, you finish pre-drilled 47 mm bores to an exact H7 tolerance. Spiral flutes engineered to din 219-B deliver smooth and continuous chip removal, ensuring a high surface finish and circular accuracy without bore wall deviations. Made from wear-resistant high-speed steel, this tool delivers dependable durability during machining operations on lathes, milling machines, and drill presses. Mounting this interchangeable shell head onto a din 217 arbor NR5 helps you reduce tooling costs while maintaining precise results.
Product information
Key features according to our expert
- Diameter: 47 mm
- Working length: 63 mm
All Features
- Diameter
- 47 mm
- Working length
- 63 mm
- Tool material
- HSS

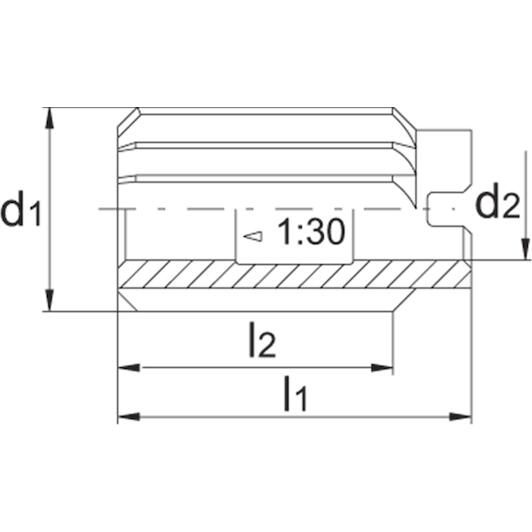

- Diameter ø (d1)
- 47 mm
- Flute length (l2)
- 45 mm
- Coolant feed
- No
- Spiral angle
- 10°
- Tolerance d1 (tol. d1)
- H7
- Bore ø (d2)
- 22 mm
- Shank type
- DIN 217
- Surface
- Bright
- Shape
- B
- Norm
- DIN 219
- Total length (l1)
- 63 mm
- Brand PHANTOM
- EAN 8716563279099
- Supplier number PHANTOM 516504700
Frequently asked questions about this product
Answered by specialists
- What are the cutting diameter and working length of this shell reamer?
- This shell reamer features a 47 mm diameter and a 63 mm working length.
- What tolerance class does this Phantom reamer have?
- The tool is manufactured to the H7 tolerance standard according to DIN 219-B.
- Which arbor is required for this shell reamer?
- This shell reamer mounts on a DIN 217 reamer arbor with a NR5 fitting.
- What material is this reamer made of?
- This model is made of high-speed steel (HSS).
