Product Description:
- Phantom HSS-E Countersink DIN 335 C 90° 3 flute
- DIN 335 C, straight shank

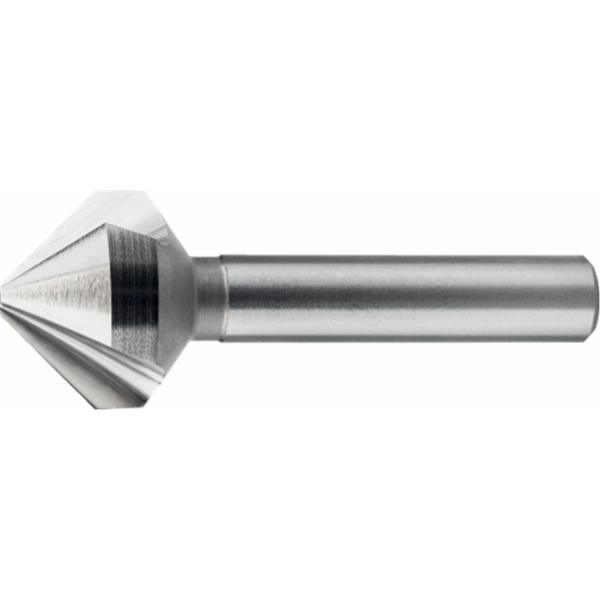

PHANTOM 425400630 HSS-E countersink bit DIN 335-C 90°' 3 cutting edges 6'3mm
Key features according to our expert
- Large diameter: 6,3 mm
- Shank size: 5 mm
Specifications / All features
- Brand: PHANTOM
- EAN: 8716563360520
- Supplier number: PHANTOM 425400630
- Large diameter
- 6,3 mm
- Shank size
- 5 mm
- Tool material
- HSS-E

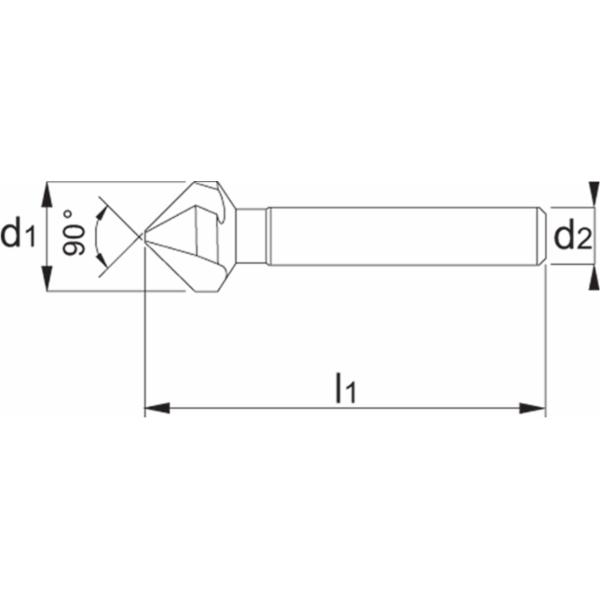

- Diameter ø (d1)
- 6,3 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Cutting direction
- Right
- Counterborereach (min-max ø)
- 1,5-6,3 mm
- Shank ø (d2)
- 5 mm
- Variant
- standard version
- Surface
- Bright
- Shank type
- Straight shank
- Standard
- DIN 335-C
- Total length (l1)
- 45 mm
