Product Description:

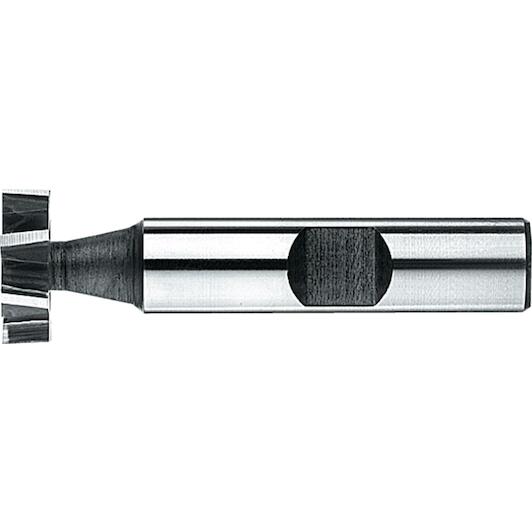

- Phantom HSS-E Woodruff Keyseat Cutter DIN 850 D staggered teeth
- DIN 850 D, Weldon shank (DIN 1835-B)
Supplier number:
PHANTOM 365103280
|
EAN
8716563378983
124.40
tax incl.
€102.81 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 32,5 mm
- Material (milling cutter): HSS-E
- Cutting length: 8 mm
- Shank type (milling cutter): Weldon
- Shank size (milling cutter): 10 mm
- Milling type: T-slot cutter
All Features
- Diameter
- 32,5 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 8 mm
- Shank type (milling cutter)
- Weldon
- Shank size (milling cutter)
- 10 mm
- Milling type
- T-slot cutter
- Tolerance d1 (tol. d1)
- h12
- Total length (l1)
- 63 mm
- Tool material
- HSS-E
- Number of flutes (z)
- 10
- Diameter ø (d1)
- 32,5 mm
- Flute length (l2)
- 8 mm
- Tolerance d2 (tol. d2)
- h6
- Coolant feed
- No
- Shank ø (d2)
- 12 mm
- Surface
- Bright
- Shank type
- Weldon (DIN 1835-B)
- Norm
- DIN 850-D
- Neck ø (d3)
- 8,5 mm
- Brand PHANTOM
- EAN 8716563378983
- Supplier number PHANTOM 365103280
