Product Description:

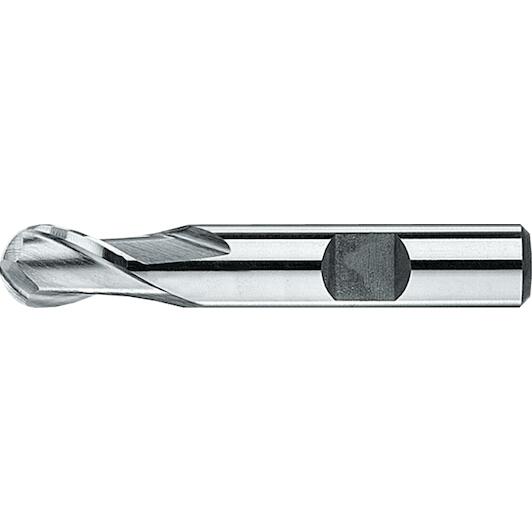

- Phantom HSS-E 2 Flute Ball Nose End Mill DIN 327 B
- DIN 327 B, Weldon shank (DIN 1835-B), in M42 steel
Supplier number:
PHANTOM 362202400
|
EAN
8716563228226
102.26
tax incl.
€84.51 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 24 mm
- Milling type: Ball nose cutter
- Shank size (milling cutter): 25 mm
- Shank type (milling cutter): Weldon
- Number of cutting edges: 2
- Material (milling cutter): HSS-E
- Spiral angle: 30 °
- Cutting length: 26 mm
All Features
- Diameter
- 24 mm
- Milling type
- Ball nose cutter
- Shank size (milling cutter)
- 25 mm
- Shank type (milling cutter)
- Weldon
- Number of cutting edges
- 2
- Material (milling cutter)
- HSS-E
- Spiral angle
- 30 °
- Cutting length
- 26 mm
- Flute length (l2)
- 26 mm
- Coolant feed
- No
- Tolerance d2 (tol. d2)
- h6
- Tool material
- HSS-E
- Diameter ø (d1)
- 24 mm
- Tolerance r (tol. r)
- ±0,02
- Number of flutes (z)
- 2
- Tolerance d1 (tol. d1)
- 0,00/-0,03
- Norm
- DIN 327-B
- Radius (r)
- 12 mm
- Shank ø (d2)
- 25 mm
- Surface
- Bright
- Shank type
- Weldon (DIN 1835-B)
- Total length (l1)
- 102 mm
- Brand PHANTOM
- EAN 8716563228226
- Supplier number PHANTOM 362202400
