Product Description:

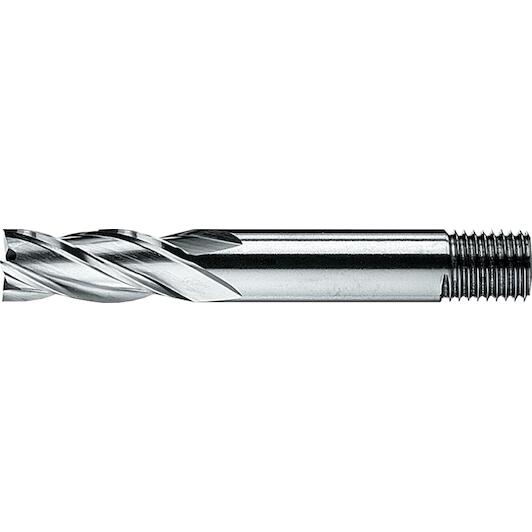

- Phantom HSS-E Multi Flute End Mill DIN 844 D
- DIN 844 D, centre cutting up to 25 mm, threaded shank, in M42 steel
Supplier number:
PHANTOM 342002300
|
EAN
8716563222538
96.87
tax incl.
€80.06 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 23 mm
- Material (milling cutter): HSS-E
- Cutting length: 38 mm
- Spiral angle: 30 °
- Number of cutting edges: 6
- Shank type (milling cutter): External thread
- Shank size (milling cutter): M20
- Milling type: Finger cutter
All Features
- Diameter
- 23 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 38 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 6
- Shank type (milling cutter)
- External thread
- Shank size (milling cutter)
- M20
- Milling type
- Finger cutter
- Tolerance d1 (tol. d1)
- 0,00/-0,040
- Tool material
- HSS-E
- Number of flutes (z)
- 6
- Diameter ø (d1)
- 23 mm
- Flute length (l2)
- 38 mm
- Tolerance d2 (tol. d2)
- h8
- Coolant feed
- No
- Shank ø (d2)
- 25 mm
- Surface
- Bright
- Shank type
- Threaded shank (DIN 1835-D)
- Standard
- DIN 844-D
- Total length (l1)
- 104 mm
- Brand PHANTOM
- EAN 8716563222538
- Supplier number PHANTOM 342002300
