What type of shank does this slot drill have?

It features a threaded cylindrical shank (M12 thread) according to DIN 1835-D, designed for autolock-type chucks.

What are the milling dimensions of this tool?

The tool has a cutting diameter of 15 mm and a flute length of 16 mm.

What applications is this 2-flute end mill suited for?

With two flutes and large chip pockets, it is ideal for cutting keyways, slots, and performing plunging cuts.

What material is this cutter made from?

It is manufactured from premium HSS-E Co8 (M42 steel) for superior heat resistance and durability.

What helix angle does this end mill feature?

It features a 30° helix angle compliant with DIN 327-D type N.

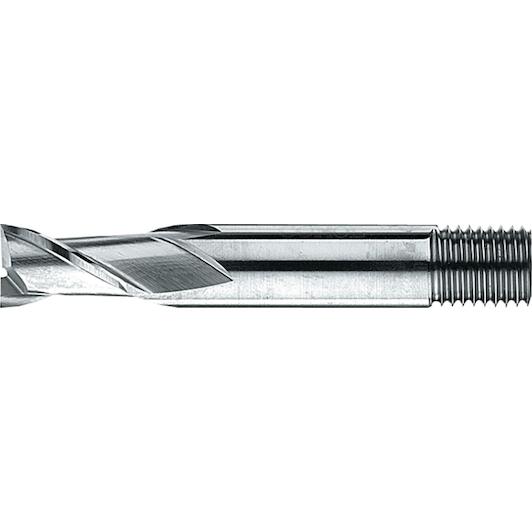

PHANTOM 322001500 HSS-E shank cutter 2-cutter DIN 327-D type N 15x16mm

Name: PHANTOM 322001500 HSS-E shank cutter 2-cutter DIN 327-D type N 15x16mm
Brand: PHANTOM
SKU: 51250026
Price: 38.78 EUR
Availability: InStock

Supplier number: PHANTOM 322001500 | EAN 8716563217206

38.78 tax incl.

€32.05 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Accurate keyway milling in tough metals

Practical benefits

Cobalt alloy heat resistance: Made from HSS-E CO8, it gives you extended tool life and higher cutting speeds under heavy loads.
Efficient chip removal geometry: The 2-flute design with a 30° helix angle ensures you clear swarf smoothly during slotting operations.
Secure threaded shank mounting: The M12 threaded shank lets you mount this Phantom milling cutter firmly to prevent slipping under load.

In a nutshell

The right choise for

With the Phantom hss-e CO8 slot drill 322001500, you mill precise open and closed keyways in steel, cast iron, and non-ferrous metals. The 2-flute centre-cutting geometry allows you to plunge axially and slot directly on conventional or cnc milling machines. Formulated with an 8% cobalt alloy, it offers superior heat and wear resistance to maintain tool life during demanding machining operations. The 30° helix angle provides efficient chip evacuation through wide flutes, while the M12 male threaded shank prevents tool pull-out and ensures a rigid, slip-free fit in your toolholder.

Product information FAQ

€38.78

In stock - tax incl.

Key features according to our expert

Diameter: 15 mm
Material (milling cutter): HSS-E
Cutting length: 16 mm
Spiral angle: 30 °
Number of cutting edges: 2
Shank type (milling cutter): External thread
Shank size (milling cutter): M12
Milling type: Keyway cutter

Product Description:

Phantom HSS-E 2 Flute End Mill DIN 327 D
DIN 327 D, threaded shank, in M42 steel

All Features

Diameter: 15 mm
Material (milling cutter): HSS-E
Cutting length: 16 mm
Spiral angle: 30 °
Number of cutting edges: 2
Shank type (milling cutter): External thread
Shank size (milling cutter): M12
Milling type: Keyway cutter
Tolerance d1 (tol. d1): e8
Tool material: HSS-E
Number of flutes (z): 2
Diameter ø (d1): 15 mm
Flute length (l2): 16 mm
Tolerance d2 (tol. d2): h8
Coolant feed: No
Shank ø (d2): 12 mm
Surface: Bright
Shank type: Threaded shank (DIN 1835-D)
Standard: DIN 327-D
Total length (l1): 73 mm

Brand PHANTOM
51250026
EAN 8716563217206
Supplier number PHANTOM 322001500

Frequently asked questions about this product

Answered by specialists

What type of shank does this slot drill have?: It features a threaded cylindrical shank (M12 thread) according to DIN 1835-D, designed for autolock-type chucks.
What are the milling dimensions of this tool?: The tool has a cutting diameter of 15 mm and a flute length of 16 mm.
What applications is this 2-flute end mill suited for?: With two flutes and large chip pockets, it is ideal for cutting keyways, slots, and performing plunging cuts.
What material is this cutter made from?: It is manufactured from premium HSS-E Co8 (M42 steel) for superior heat resistance and durability.
What helix angle does this end mill feature?: It features a 30° helix angle compliant with DIN 327-D type N.
