Product Description:

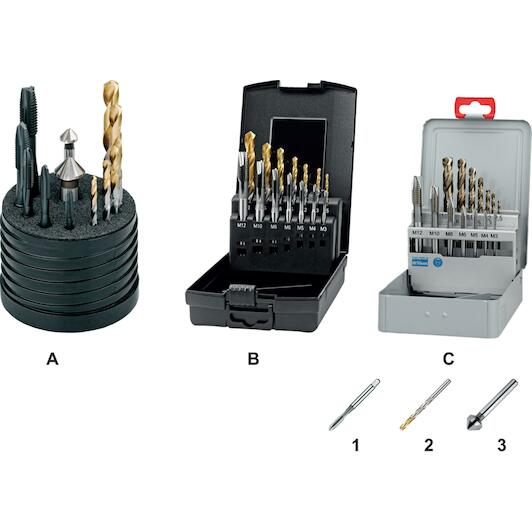

- Phantom Set Threading Tools (combination)
- With machine taps
Supplier number:
PHANTOM 292602600
|
EAN
8716563614968
260.65
tax incl.
€215.41 excl. VAT (incl. all environmental contributions)
Accurate thread cutting in stainless steel
Practical benefits- Complete combination tapping set: You get matched tapping drills and machine taps from M3 to M12 for through-hole threading.
- Superior wear resistant steel: Powder metallurgical HSS-E PM construction delivers high edge strength and toughness in demanding metals.
- Durable Phantom machining performance: The steam-tempered surface reduces friction and prevents cold welding during intensive metal cutting operations.
In a nutshell
The right choise forWith the Phantom 29.260 hss-e pm machine tap and drill set, you cut accurate metric threads in stainless steel and tough alloys with confidence. Instead of searching for individual tools, you get a matched combination of din 371/6 machine taps (M3 to M12) and corresponding twist drills (2.5 to 10.2 mm) designed for through holes. The powder metallurgical hss-e pm steel provides outstanding toughness, high heat resistance, and extended tool life during demanding metal cutting operations. Thanks to the steam-tempered finish, friction is minimized and cold welding on the cutting edges is prevented, giving you clean and reliable results on drill presses, milling machines, and cnc setups.
Product information
Key features according to our expert
- Drill diameter: 2,5 mm; 3,3 mm; 4,2 mm; 5 mm; 6,8 mm; 8,5 mm; 10,2 mm
- Thread designation: M3; M4; M5; M6; M8; M10; M12
All Features
- Drill diameter
- 2,5 mm; 3,3 mm; 4,2 mm; 5 mm; 6,8 mm; 8,5 mm; 10,2 mm
- Thread designation
- M3; M4; M5; M6; M8; M10; M12
- Standard
- DIN 371/6
- Surface
- OXIDE
- Hole type
- for through holes
- Tolerance d1 (tol. d1)
- ISO 2 / 6H
- Cutting direction
- Right
- Type of cassette (a, b, c)
- plastic cassette (B)
- Tool material
- HSS-E PM
- Brand PHANTOM
- EAN 8716563614968
- Supplier number PHANTOM 292602600
Frequently asked questions about this product
Answered by specialists
- Which materials is this set suitable for?
- This HSS-E PM set is engineered specifically for threading stainless steel (Inox) and tough alloyed steels.
- What thread sizes and drill diameters are included?
- The set includes machine taps in sizes M3, M4, M5, M6, M8, M10, and M12, along with matching twist drills from 2.5 to 10.2 mm.
- What type of holes are these machine taps designed for?
- Complying with DIN 371 and DIN 376 standards, these taps are designed for cutting metric threads in through holes.
- What is the benefit of HSS-E PM tool steel?
- Powder metallurgy steel (HSS-E PM) provides superior toughness, high heat resistance, and extended tool life when machining stainless steel.
