Which thread type does this die cut?

It cuts right-hand BSP gas threads (BSPP) in size 3/8" with a pitch of 19 TPI.

What are the outer dimensions of this round die?

The die has an outer diameter of 45 mm and a thickness of 14 mm.

What is the benefit of the spiral point (peel point)?

The spiral point pushes chips forward smoothly and reduces cutting resistance.

What material is this die made from?

This round threading die is made of HSS according to DIN EN 24231 standards.

What is the cutting direction of this die?

This die is designed for right-hand cutting operations.

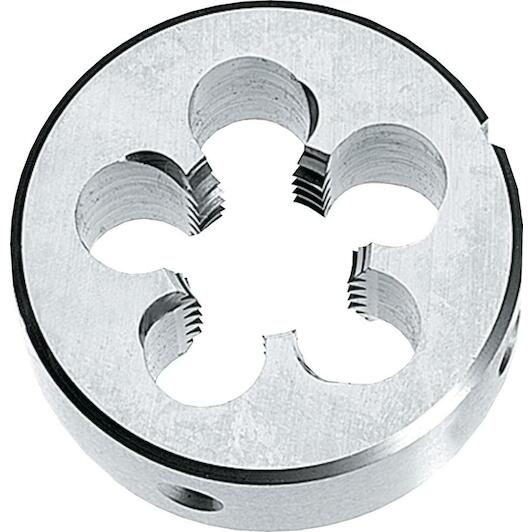

PHANTOM 275201666 HSS round cutting plate DIN EN 24231 peel cut' BSP (gas thread) 3/8"-19

Name: PHANTOM 275201666 HSS round cutting plate DIN EN 24231 peel cut' BSP (gas thread) 3/8"-19
Brand: PHANTOM
SKU: 51300122
Price: 119.19 EUR
Availability: InStock

Supplier number: PHANTOM 275201666 | EAN 8716563336013

119.19 tax incl.

€98.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Precise thread cutting with Phantom

Practical benefits

Smooth forward chip clearance: The spiral point design pushes chips forward cleanly so you achieve uniform external threads without jamming.
Resilient high-speed steel construction: Built from durable HSS, the cutting edges stay sharp longer through demanding metal threading tasks.
Standardized BSP thread accuracy: Made according to DIN EN 24231, it ensures you cut reliable and exact 3/8"-19 BSP threads every time.

In a nutshell

The right choise for

With the Phantom 27.520 round threading die, you can cut clean and accurate external threads on pipes and metal bars. Manufactured in accordance with din en 24231, it delivers a precise right-hand 3/8"-19 bsp gas thread profile every time. The integrated spiral point guides chips smoothly forward, reducing cutting resistance and preventing clogging during operation. Built from robust hss steel, the cutting edges retain their sharpness through demanding threading and pipefitting tasks. Featuring an outer diameter of 45 mm and a thickness of 14 mm, this die gives you the stability and control needed to cut new threads or restore damaged external fittings.

Product information FAQ

€119.19

In stock - tax incl.

Key features according to our expert

Thread type: BSPP
Pitch: 19 tpi
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 14 mm
Thread size: 3/8"

Product Description:

Phantom HSS Thread Die DIN EN 24231 gun nosed BSP (G)
DIN EN 24231, 55°, for hand and machine use

All Features

Thread type: BSPP
Pitch: 19 tpi
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 14 mm
Thread size: 3/8"

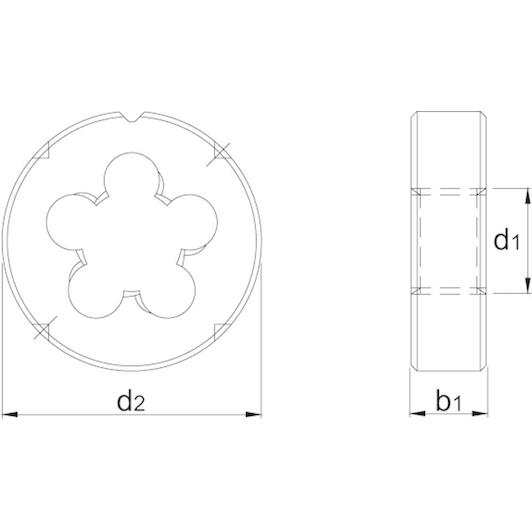

Outside ø (d2): 45 mm
Tool material: HSS
Thread diameter (d1): G 3/8
Tolerance d1 (tol. d1): class A
Die thickness (b1): 14 mm
Surface: Bright
Norm: DIN EN 24231
Pitch-inch (tpi): 19 Threads per inch

Brand PHANTOM
51300122
EAN 8716563336013
Supplier number PHANTOM 275201666

Frequently asked questions about this product

Answered by specialists

Which thread type does this die cut?: It cuts right-hand BSP gas threads (BSPP) in size 3/8" with a pitch of 19 TPI.
What are the outer dimensions of this round die?: The die has an outer diameter of 45 mm and a thickness of 14 mm.
What is the benefit of the spiral point (peel point)?: The spiral point pushes chips forward smoothly and reduces cutting resistance.
What material is this die made from?: This round threading die is made of HSS according to DIN EN 24231 standards.
What is the cutting direction of this die?: This die is designed for right-hand cutting operations.
