PHANTOM

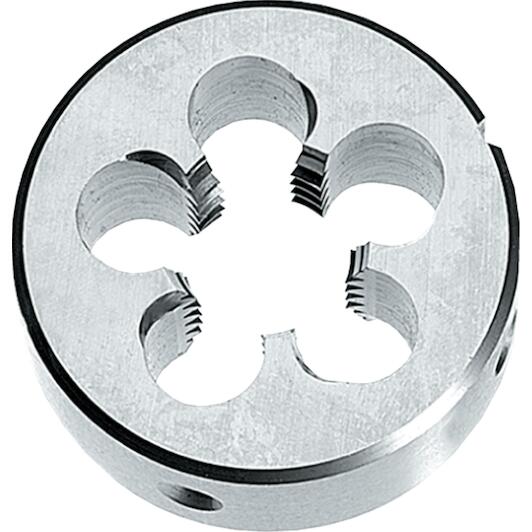

PHANTOM 273200482 HSS round cutting plate DIN EN 22568 peel cut' UNC No.10-24

64.55 tax incl.
€53.35 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product Description:

  • Phantom HSS Thread Die DIN EN 22568 gun nosed UNC
  • DIN EN 22568, 60°, for hand and machine use
Key features according to our expert
  • Thread type: UNC
  • Pitch: 24 tpi
  • Cutting direction: Right
  • Outer diameter: 20 mm
  • Thickness: 7 mm
  • Thread size: Nr.10
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563335504
  • Supplier number: PHANTOM 273200482
Thread type
UNC
Pitch
24 tpi
Cutting direction
Right
Outer diameter
20 mm
Thickness
7 mm
Thread size
Nr.10

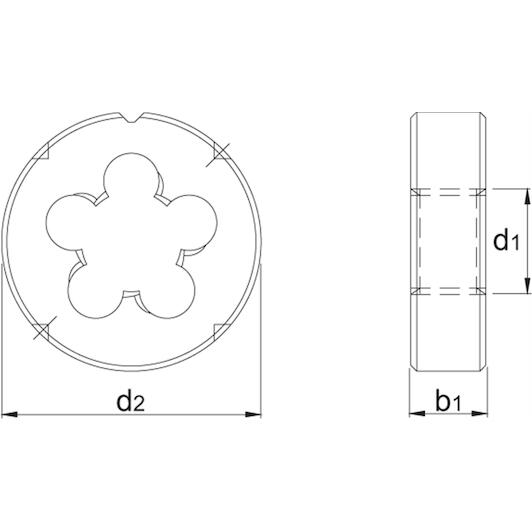

Outside ø (d2)
20 mm
Tool material
HSS
Thread diameter (d1)
UNC Nr. 10
Tolerance d1 (tol. d1)
2A
Die thickness (b1)
7 mm
Surface
Bright
Norms
DIN EN 22568
Pitch-inch (tpi)
24 Threads per inch
