Product Description:

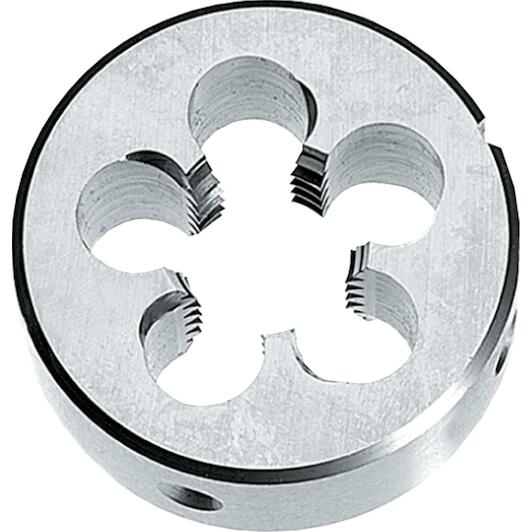

- Phantom HSS DIN EN 22568 Metric Fine gun nosed
- DIN EN 22568, 60°, for hand and machine use
Supplier number:
PHANTOM 272201215
|
EAN
8716563333265
92.87
tax incl.
€76.75 excl. VAT (incl. all environmental contributions)
Accurate fine thread cutting performance
Practical benefits- Smooth and efficient chip flow: The gun nose geometry lets you push chips cleanly ahead for effortless fine external threading.
- Durable high speed steel construction: The hardened HSS body ensures you maintain sharp cutting edges through repeated metalworking tasks.
- Standardized DIN EN 22568 fit: The 38x10 mm dimension ensures seamless compatibility with standard round die holders and machines.
In a nutshell
The right choise forWith the Phantom hss round threading die din en 22568, you accurately cut and repair right-hand metric fine external threads of type MF12 with a 1.5 mm pitch on shafts and bolts. Thanks to the gun nose spiral point, chips are pushed cleanly forward during cutting, preventing chip build-up and ensuring a smooth, precise thread profile. The durable high speed steel construction maintains sharp cutting edges throughout repeated metalworking and maintenance tasks. Featuring standardized dimensions of 38x10 mm, this die fits securely into standard die stocks.
Product information
Key features according to our expert
- Thread type: Metric fine
- Pitch: 1,5 mm
- Cutting direction: Right
- Outer diameter: 38 mm
- Thickness: 10 mm
- Thread size: M12
All Features
- Thread type
- Metric fine
- Pitch
- 1,5 mm
- Cutting direction
- Right
- Outer diameter
- 38 mm
- Thickness
- 10 mm
- Thread size
- M12

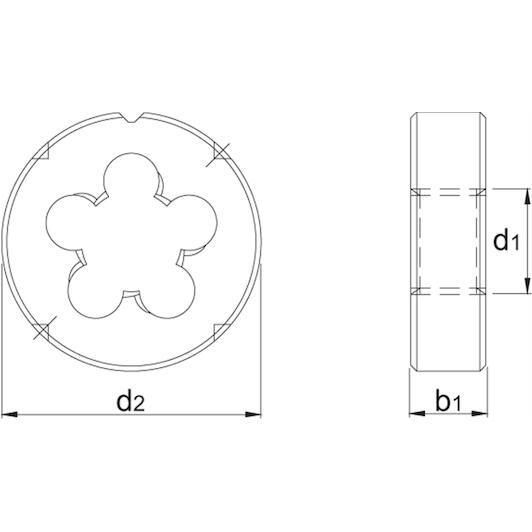

- Outside ø (d2)
- 38 mm
- Tool material
- HSS
- Thread diameter (d1)
- MF12
- Tolerance d1 (tol. d1)
- 6g
- Die thickness (b1)
- 10 mm
- Surface
- Bright
- Norm
- DIN EN 22568
- Pitch (p)
- 1,5 mm
- Brand PHANTOM
- EAN 8716563333265
- Supplier number PHANTOM 272201215
Frequently asked questions about this product
Answered by specialists
- What thread type does this die cut?
- It cuts right-hand metric fine external threads of type MF12 with a 1.5 mm pitch.
- Which die stock fits this threading die?
- You need a die stock designed for an outer diameter of 38 mm and a thickness of 10 mm.
- What is the purpose of the spiral point (gun nose)?
- The spiral point pushes chips forward during cutting, preventing chip build-up and ensuring clean threads.
- What material is this die made from?
- The die is made of HSS (high-speed steel) in accordance with DIN EN 22568 standards.
