Which thread size does this die cut?

This die cuts standard metric M18 external threads with a 2.5 mm pitch.

What are the outer dimensions of this round die?

The die has an outer diameter of 45 mm and a thickness of 18 mm.

What is the cutting direction of this tool?

This die cuts to the right and is designed for standard right-hand threads.

What material is this die made from?

The die is manufactured from HSS (high-speed steel) according to DIN EN 22568.

What is the benefit of the spiral point (gun nose)?

The spiral point guides chips forward, ensuring smooth chip evacuation during external threading.

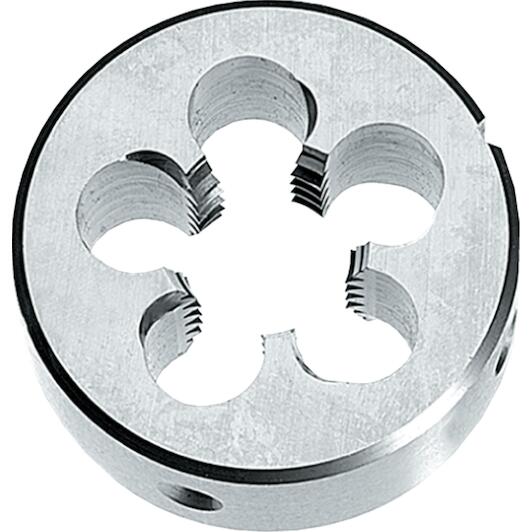

PHANTOM 271201800 HSS round cutting plate DIN EN 22568 metric' peel cut M18

Name: PHANTOM 271201800 HSS round cutting plate DIN EN 22568 metric' peel cut M18
Brand: PHANTOM
SKU: 51300024
Price: 117.43 EUR
Availability: InStock

Supplier number: PHANTOM 271201800 | EAN 8716563332763

117.43 tax incl.

€97.05 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Accurate and smooth external threading

Practical benefits

Clean cuts with spiral point: The spiral point entry pushes chips forward cleanly, allowing you to cut accurate M18 threads without clogging.
Consistent dimensional accuracy: Manufactured to DIN EN 22568 standards, it ensures precise outer dimensions and reliable fit across standard holders.
Tough and wear-resistant HSS: High-speed steel construction retains sharp cutting edges and delivers exceptional tool life across demanding metalworking tasks.

In a nutshell

The right choise for

With the Phantom 27.120 round die, you cut clean and accurate external threads on metal rods and bolts with ease. Made from durable hss for right-hand cutting, it is designed for standard metric M18 threads with a 2.5 mm pitch. The integrated spiral point ensures chips are guided forward smoothly, preventing clogging and keeping your cuts clean. Manufactured to din en 22568 standards with an outer diameter of 45 mm and an 18 mm thickness, it delivers reliable fit and consistent precision. It is the ideal tool for machining new threads or restoring damaged threads in demanding workshop environments.

Product information FAQ

€117.43

In stock - tax incl.

Key features according to our expert

Thread type: Metric
Pitch: 2,5 mm
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 18 mm
Thread size: M18

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Coarse gun nosed
DIN EN 22568, 60°, from M3 Gun nosed, for hand and machine use

All Features

Thread type: Metric
Pitch: 2,5 mm
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 18 mm
Thread size: M18

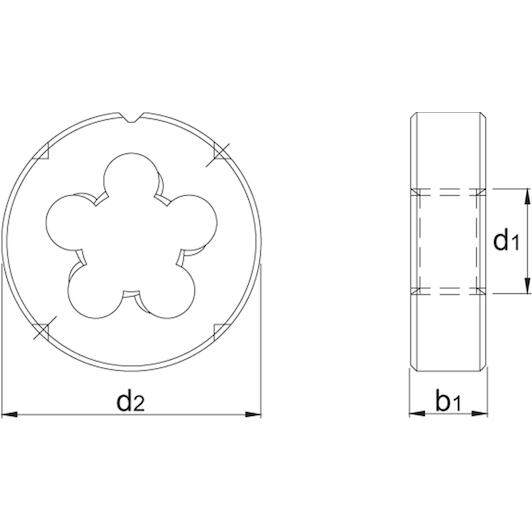

Outside ø (d2): 45 mm
Tool material: HSS
Thread diameter (d1): M18
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 18 mm
Surface: Bright
Norm: DIN EN 22568
Pitch (p): 2,5 mm

Brand PHANTOM
51300024
EAN 8716563332763
Supplier number PHANTOM 271201800

Frequently asked questions about this product

Answered by specialists

Which thread size does this die cut?: This die cuts standard metric M18 external threads with a 2.5 mm pitch.
What are the outer dimensions of this round die?: The die has an outer diameter of 45 mm and a thickness of 18 mm.
What is the cutting direction of this tool?: This die cuts to the right and is designed for standard right-hand threads.
What material is this die made from?: The die is manufactured from HSS (high-speed steel) according to DIN EN 22568.
What is the benefit of the spiral point (gun nose)?: The spiral point guides chips forward, ensuring smooth chip evacuation during external threading.
