What thread type can you cut with this die?

You can cut standard metric external threads of size M12 with a pitch of 1.75 mm.

What are the dimensions of this round die?

The die has an outer diameter of 38 mm and a thickness of 14 mm, conforming to DIN EN 22568.

What is the benefit of the spiral point?

The spiral point pushes chips forward during cutting, ensuring smooth operation and a clean thread finish.

What is the cutting direction of this die?

This die is designed for right-hand cutting (standard right-hand threads).

What material is this die made from?

This model is made from HSS (High Speed Steel), providing excellent wear resistance and reliable cutting performance.

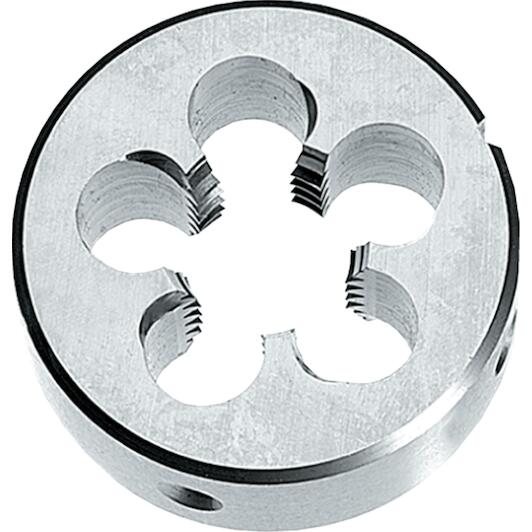

PHANTOM 271201200 HSS round cutting plate DIN EN 22568 metric' peel cut M12

Name: PHANTOM 271201200 HSS round cutting plate DIN EN 22568 metric' peel cut M12
Brand: PHANTOM
SKU: 51300021
Price: 84.82 EUR
Availability: InStock

Supplier number: PHANTOM 271201200 | EAN 8716563332732

84.82 tax incl.

€70.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 03/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Precise external threads with smooth chip clearance

Practical benefits

Efficient forward chip evacuation: The spiral point entry pushes chips forward so you cut clean M12 threads without jamming the cutting edges.
Durable high speed steel: Made from quality HSS, the cutting edges maintain their sharpness during demanding threading tasks in tough metals.
Standardized and secure fit: Designed to DIN EN 22568 with 38 x 14 mm dimensions, you can fit it directly into standard die stocks.

In a nutshell

The right choise for

With the Phantom 27.120 round die, you can cut accurate metric M12 external threads with a 1.75 mm pitch with ease. Thanks to the spiral point entry, chips are pushed forward during cutting, ensuring smooth operation and a clean finish without clogging. The durable hss construction offers excellent wear resistance and long-lasting sharpness when working with unalloyed steel, free-cutting steel, and non-ferrous metals. Whether you are threading new shafts and studs or repairing damaged bolt threads, the standardized din en 22568 dimensions of 38 x 14 mm ensure this right-hand die fits securely into standard die stocks.

Product information FAQ

€84.82

In stock - tax incl.

Key features according to our expert

Thread type: Metric
Pitch: 1,75 mm
Cutting direction: Right
Outer diameter: 38 mm
Thickness: 14 mm
Thread size: M12

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Coarse gun nosed
DIN EN 22568, 60°, from M3 Gun nosed, for hand and machine use

All Features

Thread type: Metric
Pitch: 1,75 mm
Cutting direction: Right
Outer diameter: 38 mm
Thickness: 14 mm
Thread size: M12

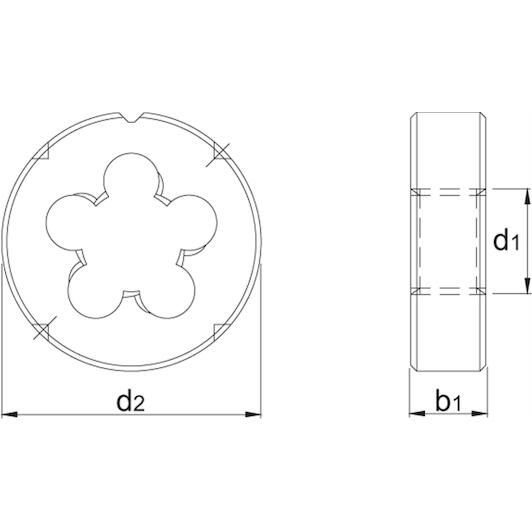

Outside ø (d2): 38 mm
Tool material: HSS
Thread diameter (d1): M12
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 14 mm
Surface: Bright
Standard: DIN EN 22568
Pitch (p): 1,75 mm

Brand PHANTOM
51300021
EAN 8716563332732
Supplier number PHANTOM 271201200

Frequently asked questions about this product

Answered by specialists

What thread type can you cut with this die?: You can cut standard metric external threads of size M12 with a pitch of 1.75 mm.
What are the dimensions of this round die?: The die has an outer diameter of 38 mm and a thickness of 14 mm, conforming to DIN EN 22568.
What is the benefit of the spiral point?: The spiral point pushes chips forward during cutting, ensuring smooth operation and a clean thread finish.
What is the cutting direction of this die?: This die is designed for right-hand cutting (standard right-hand threads).
What material is this die made from?: This model is made from HSS (High Speed Steel), providing excellent wear resistance and reliable cutting performance.
