What thread size does this die cut?

This die cuts standard metric M5 external thread with a thread pitch of 0.8 mm.

What are the outer dimensions of this round die?

The die has an outer diameter of 20 mm and a thickness of 7 mm.

What is the benefit of the spiral point (gun nose)?

The spiral point pushes chips forward during cutting, ensuring clear chip evacuation and smoother operation.

Can this die be used for both manual and machine cutting?

Yes, the HSS construction allows for reliable operation in both manual die stocks and machine holders.

What is the cutting direction of this die?

This tool is right-hand cutting, designed for standard right-hand M5 threads.

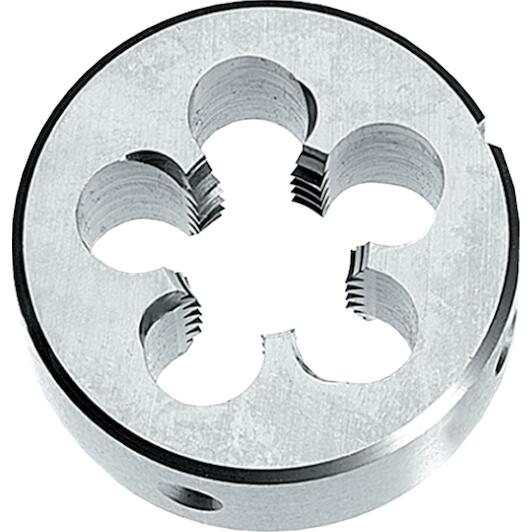

PHANTOM 271200500 HSS round cutting plate DIN EN 22568 metric' peel cut M5

Name: PHANTOM 271200500 HSS round cutting plate DIN EN 22568 metric' peel cut M5
Brand: PHANTOM
SKU: 51300014
Price: 48.82 EUR
Availability: InStock

Supplier number: PHANTOM 271200500 | EAN 8716563332657

48.82 tax incl.

€40.35 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Clean and precise external thread cutting

Practical benefits

Reliable Phantom cutting accuracy: You effortlessly create clean and accurate M5 metric external threads conforming to DIN EN 22568 standards.
Smooth continuous chip clearance: The integrated spiral point pushes chips forward during cutting, preventing clogging and ensuring smooth operation.
Tough high-speed steel build: Made from durable HSS, it delivers long tool life for both manual and machine threading applications.

In a nutshell

The right choise for

With the Phantom 27.120 round die, you effortlessly cut clean and precise M5 metric external threads with a 0.8 mm pitch conforming to din en 22568. Thanks to the integrated spiral point, chips are smoothly pushed forward during cutting, effectively preventing clogging and thread damage. Crafted from robust hss with an outer diameter of 20 mm and a thickness of 7 mm, this right-hand cutting die easily tackles unalloyed and low-alloy steel, non-ferrous metals, and plastics. Whether you are threading round bars and bolts or restoring damaged threads in the workshop, Phantom ensures complete accuracy and control across both manual and machine setups.

Product information FAQ

€48.82

In stock - tax incl.

Key features according to our expert

Thread type: Metric
Pitch: 0,8 mm
Cutting direction: Right
Outer diameter: 20 mm
Thickness: 7 mm
Thread size: M5

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Coarse gun nosed
DIN EN 22568, 60°, from M3 Gun nosed, for hand and machine use

All Features

Thread type: Metric
Pitch: 0,8 mm
Cutting direction: Right
Outer diameter: 20 mm
Thickness: 7 mm
Thread size: M5

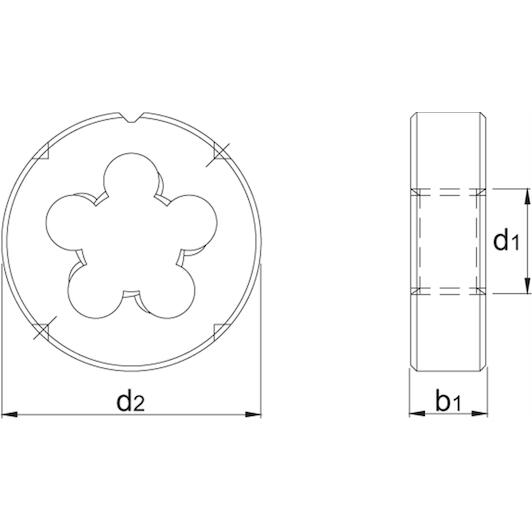

Outside ø (d2): 20 mm
Tool material: HSS
Thread diameter (d1): M5
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 7 mm
Surface: Bright
Standard: DIN EN 22568
Pitch (p): 0,8 mm

Brand PHANTOM
51300014
EAN 8716563332657
Supplier number PHANTOM 271200500

Frequently asked questions about this product

Answered by specialists

What thread size does this die cut?: This die cuts standard metric M5 external thread with a thread pitch of 0.8 mm.
What are the outer dimensions of this round die?: The die has an outer diameter of 20 mm and a thickness of 7 mm.
What is the benefit of the spiral point (gun nose)?: The spiral point pushes chips forward during cutting, ensuring clear chip evacuation and smoother operation.
Can this die be used for both manual and machine cutting?: Yes, the HSS construction allows for reliable operation in both manual die stocks and machine holders.
What is the cutting direction of this die?: This tool is right-hand cutting, designed for standard right-hand M5 threads.
