Product Description:
- Phantom HSS-E Machine Tap DIN 5156 BSP (G)
- DIN 5156, 55°, reduced shank, Gun nosed for through holes, lead 5 chamfer

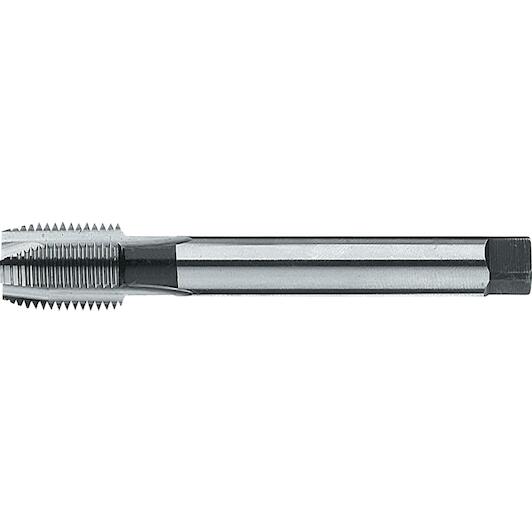

PHANTOM 251002096 HSS-E machine tap DIN 5156 BSP (gas thread) for through-holes 1/2"-14
100.19
tax incl.
€82.80 excl. VAT (incl. all environmental contributions)
Key features according to our expert
- Thread size: 1/2"
- Max. cutting depth: 25
- Thread type: BSPP
- Material (machine tap): HSS-E
- With innercooling: No
- Machine tap application: Through hole
- Square size: 12 mm
- Shank type: External square
- Shank size: 16 mm
- Cutting direction: Right
- Pitch: 14 tpi
Specifications / All features
- Brand: PHANTOM
- EAN: 8716563345985
- Supplier number: PHANTOM 251002096
- Thread size
- 1/2"
- Max. cutting depth
- 25
- Thread type
- BSPP
- Material (machine tap)
- HSS-E
- With innercooling
- No
- Machine tap application
- Through hole
- Square size
- 12 mm
- Shank type
- External square
- Shank size
- 16 mm
- Cutting direction
- Right
- Pitch
- 14 tpi
- Pre-drilling diameter (ø)
- 19 mm
- Total length (l1)
- 125 mm
- Tool material
- HSS-E
- Flute length (l2)
- 25 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Thread diameter (d1)
- G 1/2
- Square wide (sw)
- 12 mm
- Norms
- DIN 5156
- Shank ø (d2)
- 16 mm
- Hole type
- for through holes
- Surface
- Bright
- Shape
- B
- Pitch-inch (tpi)
- 14 Threads per inch
