Product Description:

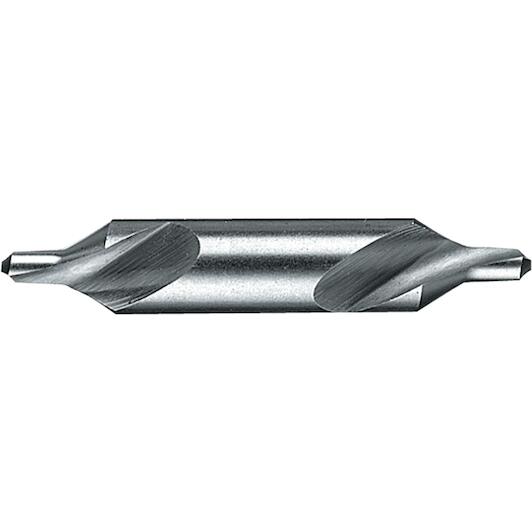

- Phantom HSS Centre Drill DIN 333-A left hand 60°
- DIN 333-A
Supplier number:
PHANTOM 199515014
|
EAN
8716563332350
60.35
tax incl.
€49.88 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 5 mm
- Point angle: 60 °
- Overall length: 69 mm
- Shank size: 14 mm
All Features
- Diameter
- 5 mm
- Point angle
- 60 °
- Overall length
- 69 mm
- Shank size
- 14 mm
- Shank ø (d2)
- 14 mm
- Total length (l1)
- 69 mm
- Tool material
- HSS
- Drill diameter (d1)
- 5 mm
- Tolerance d2 (tol. d2)
- h7
- Coolant feed
- No
- Flute length from till (l2)
- 6,3-7,2 mm
- Cutting direction
- Left
- Tolerance d1 (tol. d1)
- k12
- Surface
- Bright
- Point type
- Relieved cone
- Shank type
- Straight shank
- Shape
- A
- Norm
- DIN 333-A
- Brand PHANTOM
- EAN 8716563332350
- Supplier number PHANTOM 199515014
