Product Description:

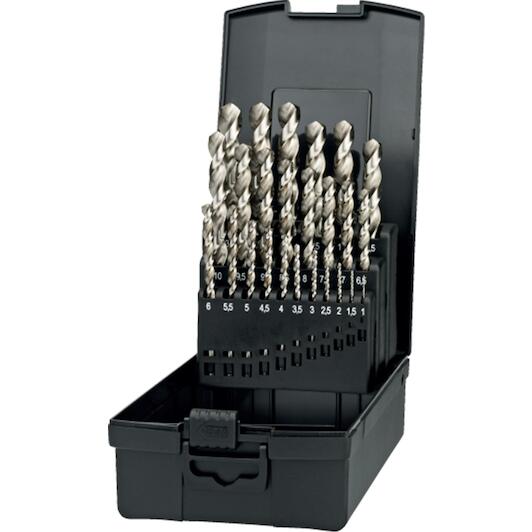

- Phantom HSS Drill set DIN 338
- DIN 338, in plastic case, filled with drills from article group 11.710
Supplier number:
PHANTOM 191711300
|
EAN
8716563320289
318.01
tax incl.
€262.82 excl. VAT (incl. all environmental contributions)
Clean drilling in aluminium and soft materials
Practical benefits- Smooth and efficient chip clearance: The specialized flute geometry and 130° point angle prevent clogging when you drill into aluminium, copper, or plastics.
- Comprehensive Phantom drill set: You get 25 high-speed steel drills from 1 to 13 mm in 0.5 mm increments to cover various hole sizes.
- Organized and protective storage: The rugged cassette keeps your DIN 338 twist drills neatly arranged and easily accessible in your workshop.
In a nutshell
The right choise forWith the Phantom 19.171 hss metal drill bit set, you drill cleanly and accurately into soft materials such as aluminium, copper, and plastics. The specialized type w flute geometry and 130° point angle deliver smooth chip clearance, preventing clogging during demanding workshop tasks. With 25 drill bits ranging from 1 to 13 mm in 0.5 mm increments, you always have the right size ready for assembly or repair work. The rugged cassette keeps your din 338 twist drills from the 11.710 series organized and fully protected.
Product information
Key features according to our expert
- Smallest diameter: 1 mm
- Drill set type: Metal drilling set
- Quantity per set: 25
- Largest diameter: 13 mm
All Features
- Smallest diameter
- 1 mm
- Drill set type
- Metal drilling set
- Quantity per set
- 25
- Largest diameter
- 13 mm
- Point type
- Relieved cone
- Tool material
- HSS
- Contains diameters (ø mm)
- 1-13 mm x 0,5 mm
- Coolant feed
- No
- Cutting direction
- Right
- Spiral type
- Type W
- Tolerance d1 (tol. d1)
- h8
- Model
- 11.710
- Surface
- Bright
- Shank type
- Straight shank
- Standard
- DIN 338
- Point angle
- 130°
- Brand PHANTOM
- EAN 8716563320289
- Supplier number PHANTOM 191711300
Frequently asked questions about this product
Answered by specialists
- Which materials is this drill bit set designed for?
- This DIN 338 type W set is designed for aluminum, copper, and various plastics.
- Which drill sizes are included in this case?
- The case contains 25 drill bits ranging from 1 mm to 13 mm in 0.5 mm steps.
- What is the benefit of the 130° point angle?
- The 130° point angle and wide flute profile ensure rapid chip removal and prevent clogging in soft metals.
- What type of shank do these drill bits have?
- The bits feature a straight cylindrical shank compatible with standard drill chucks.
- What quality of drill bits is included?
- The set contains 25 HSS twist drill bits from the 11.710 series with h8 tolerance.
