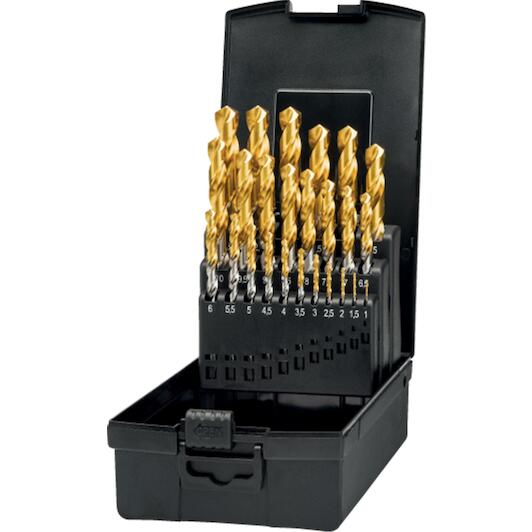

PHANTOM 191471300 HSS spiral drill bit set DIN 338 TiN-tip (hand use) 26-piece

Name: PHANTOM 191471300 HSS spiral drill bit set DIN 338 TiN-tip (hand use) 26-piece
Brand: PHANTOM
SKU: 03051365
Price: 210.84 EUR
Availability: InStock

Supplier number: PHANTOM 191471300 | EAN 8716563733690

210.84 tax incl.

€174.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

set

Ordered before 20:00 - delivered tomorrow 01/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precision drilling in metal

Practical benefits

Immediate and accurate starting: The split point design prevents walking and lets you begin drilling right where you need it.
Resilient Phantom TiN coating: The hardened titanium coating on the cutting tip reduces friction and significantly extends overall tool life.
Comprehensive size selection: You have 25 bits from 1 to 13 mm ready to cover a full range of drilling tasks.

In a nutshell

The right choise for

With the Phantom 11.461 twist drill set, you drill through metal quickly, cleanly, and without slipping. Thanks to the split point design and 118° point angle, each bit self-centers immediately on the workpiece, making pilot drilling unnecessary. The durable TiN-coated tip significantly reduces friction and heat build-up, extending tool life during demanding handheld drilling tasks. Featuring 25 drill bits ranging from 1 to 13 mm in 0.5 mm increments, this set ensures you always have the right metric size at hand for maintenance, fabrication, and installation jobs.

Product information FAQ

€210.84

In stock - tax incl.

Key features according to our expert

Smallest diameter: 1 mm
Drill set type: Metal drilling set
Quantity per set: 25
Largest diameter: 13 mm

Product description:

Phantom HSS Set Spiral Drills DIN 338 TiN-tip (hand use)
DIN 338, short ground version, with cross grinding from 1.6 mm, in plastic case, filled with drills from article group 11.461

All Features

Smallest diameter: 1 mm
Drill set type: Metal drilling set
Quantity per set: 25
Largest diameter: 13 mm
Point type: Split point
Tool material: HSS
Contains diameters (ø mm): 1-13 mm x 0,5 mm
Coolant feed: No
Cutting direction: Right
Spiral type: Phantom
Tolerance d1 (tol. d1): h8
Model: 11.461
Surface: TiN
Shank type: Straight shank
Standard: DIN 338
Point angle: 118°

Brand PHANTOM
03051365
EAN 8716563733690
Supplier number PHANTOM 191471300

Frequently asked questions about this product

Answered by specialists

Which drill sizes are included in this Phantom drill set?: The set contains 25 drill bits from 1 to 13 mm, increasing in increments of 0.5 mm.
What applications are these drill bits suitable for?: These DIN 338 HSS twist drills are designed for drilling metal using handheld drills or pillar drill presses.
What is the benefit of the TiN-tip coating?: The titanium nitride coating on the tip reduces friction, minimizes wear, and significantly extends tool life.
Is pilot drilling necessary with these drill bits?: No, the split point (from 1.6 mm) and the 118° point angle ensure precise self-centering without pilot drilling.
What type of shank do these drills have?: The drill bits feature a cylindrical straight shank compatible with all standard drill chucks.
