Supplier number:
PHANTOM 191451150
|
EAN
8716563567523
121.23
tax incl.
€100.19 excl. VAT (incl. all environmental contributions)
Accurate drilling with Phantom
Practical benefits- Precise non-slip starting: The split point tip ensures you start drilling immediately on target without any wandering.
- Optimized for threading: This 24-piece set includes critical core hole diameters to help you prepare clean tapping sizes.
- Resists high heat: The steam-tempered HSS construction reduces friction so you maintain sharp cutting edges through heavy metalwork.
In a nutshell

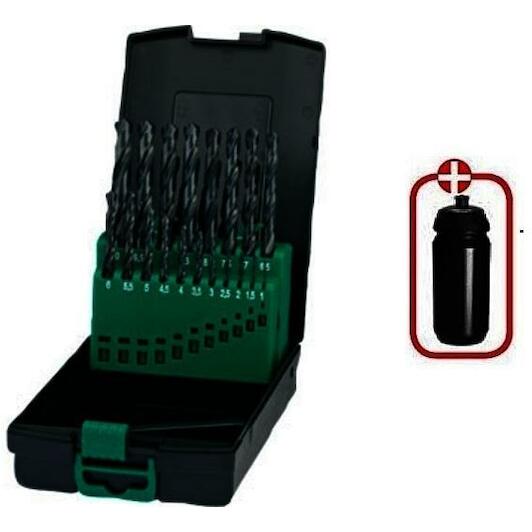

The right choise forWith the Phantom 19.145 hss metal drill bit set, you drill quickly and accurately into steel and common metals. This 24-piece din 338 set covers diameters from 1 to 10.5 mm and includes intermediate sizes 3.3 mm, 4.2 mm, 6.8 mm, and 10.2 mm. This gives you the exact tapping sizes ready for M4, M5, M8, and M12 metric threads without wasting time searching. The 118° split point tip delivers precise, non-slip centering directly on target, while the steam-tempered hss construction reduces friction to maximize tool life during metalworking. Thanks to the cylindrical shank, every drill bit fits standard drill chucks seamlessly.
Product information
Key features according to our expert
- Smallest diameter: 1 mm
- Drill set type: Metal drilling set
- Quantity per set: 24
- Largest diameter: 10,5 mm
All Features
- Smallest diameter
- 1 mm
- Drill set type
- Metal drilling set
- Quantity per set
- 24
- Largest diameter
- 10,5 mm
- Point type
- Split point
- Tool material
- HSS
- Contains diameters (ø mm)
- 1-10,5 mm x 0,5 mm + 3,3-4,2-6,8-10,2 mm
- Coolant feed
- No
- Cutting direction
- Right
- Spiral type
- Type N
- Tolerance d1 (tol. d1)
- h8
- Model
- 11.450
- Surface
- OXIDE
- Shank type
- Straight shank
- Standard
- DIN 338
- Point angle
- 118°
- Brand PHANTOM
- EAN 8716563567523
- Supplier number PHANTOM 191451150
Frequently asked questions about this product
Answered by specialists
- Which drill bit sizes are included in this Phantom set?
- The set includes sizes from 1 to 10 mm in 0.5 mm increments, plus tapping sizes 3.3 mm, 4.2 mm, 6.8 mm, and 10.2 mm.
- Which materials are these HSS drill bits suitable for?
- These DIN 338 metal drill bits are designed for drilling into steel and various common metals.
- What are the extra intermediate sizes used for?
- The 3.3 mm, 4.2 mm, 6.8 mm, and 10.2 mm bits are dedicated tapping sizes for M4, M5, M8, and M12 threads.
- What shank type do these drill bits have?
- All bits in this set have a cylindrical shank compatible with standard drill chucks.
- What is the point angle of these drill bits?
- They feature a 118° point angle with a split point for precise centering.
