PHANTOM 158400800 HSS-E centre drill DIN 332/2 for tapped holes' 60°' with clamping surface M8 6'8x8'4mm

Supplier number: PHANTOM 158400800 | EAN 8716563331285
118.91 tax incl.
€98.27 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/11/2026

  • Ordered before 20:00 - delivered as of 27/11/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL


€118.91
tax incl.

Product information

Key features according to our expert

  • Diameter: 6,8 mm
  • Point angle: 60 °
  • Overall length: 88 mm
  • Shank size: 14 mm

Product Description:

  • Phantom HSS-E DIN 332-A for threaded holes 60° with flat face
  • DIN 332-A, for drilling centre holes according to DIN 332/2, straight shank, with flat face

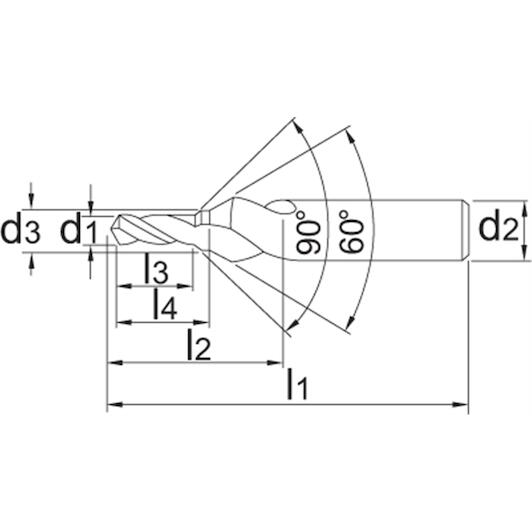

All Features

Diameter
6,8 mm
Point angle
60 °
Overall length
88 mm
Shank size
14 mm
Metric (m)
8
Total length (l1)
88 mm
Tool material
HSS-E
Flute length (l2)
41 mm
Drill diameter (d1)
6,8 mm
Tolerance d2 (tol. d2)
h7
Diameter ø (d3)
8,4 mm
Coolant feed
No
Cutting direction
Right
Working length (l3)
19 mm
Tolerance d1 (tol. d1)
0/-0,05
Shank ø (d2)
14 mm
Second length (l4)
23 mm
Point type
Thinned point
Surface
Bright
Shank type
Cylindrical with flat
Shape
D
Standard
DIN 332-D
  • Brand PHANTOM
  • EAN 8716563331285
  • Supplier number PHANTOM 158400800
