PHANTOM

PHANTOM 158400500 HSS-E centre drill bit DIN 332/2 for tapped holes' 60°' with clamping surface M5 4'2x5'3mm

100.54 tax incl.
€83.09 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product Description:

  • Phantom HSS-E Centre Drill DIN 332-A for threaded holes 60° with flat face
  • DIN 332-A, for drilling centre holes according to DIN 332/2, straight shank, with flat face
Key features according to our expert
  • Diameter: 4,2 mm
  • Point angle: 60 °
  • Overall length: 67 mm
  • Shank size: 10 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563331261
  • Supplier number: PHANTOM 158400500
Diameter
4,2 mm
Point angle
60 °
Overall length
67 mm
Shank size
10 mm
Metric (m)
5

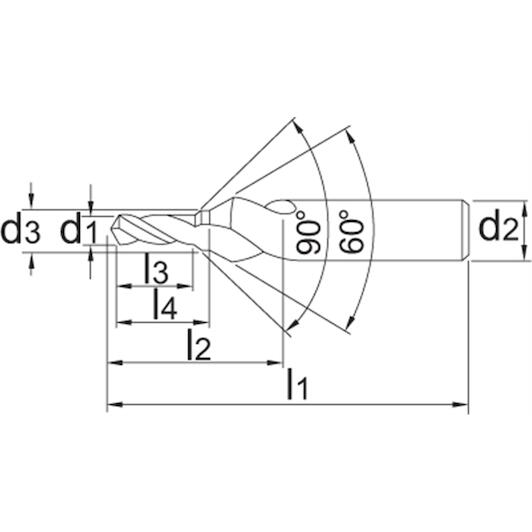

Total length (l1)
67 mm
Tool material
HSS-E
Flute length (l2)
27 mm
Drill diameter (d1)
4,2 mm
Tolerance d2 (tol. d2)
h7
Diameter ø (d3)
5,3 mm
Coolant feed
No
Cutting direction
Right
Working length (l3)
13 mm
Tolerance d1 (tol. d1)
0/-0,05
Shank ø (d2)
10 mm
Second length (l4)
15,1 mm
Point type
Thinned point
Surface
Bright
Shank type
Cylindrical with flat
Shape
D
Norms
DIN 332-D
