PHANTOM 158201000 HSS-E centre drill bit DIN 332/2 for tapped holes' 60° M10 8'5x10'5mm

PHANTOM
Supplier number: PHANTOM 158201000 | EAN 8716563331230
118.91 tax incl.
€98.27 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

  • Ordered before 20:00 - delivered as of 14/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
✆ Talk to a specialist


Product information
€118.91
tax incl.

Product information

Key features according to our expert

  • Diameter: 8,5 mm
  • Point angle: 60 °
  • Overall length: 90 mm
  • Shank size: 16 mm

Product Description:

  • Phantom HSS-E Centre Drill DIN 332-A for threaded holes 60°
  • DIN 332-A, for drilling centre holes according to DIN 332/2, straight shank

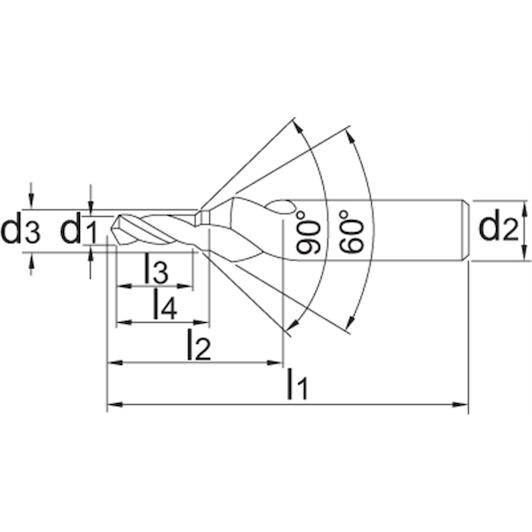

All Features

Diameter
8,5 mm
Point angle
60 °
Overall length
90 mm
Shank size
16 mm
Metric (m)
10
Total length (l1)
90 mm
Tool material
HSS-E
Flute length (l2)
47 mm
Drill diameter (d1)
8,5 mm
Tolerance d2 (tol. d2)
h7
Diameter ø (d3)
10,5 mm
Coolant feed
No
Cutting direction
Right
Working length (l3)
23 mm
Tolerance d1 (tol. d1)
0/-0,05
Shank ø (d2)
16 mm
Second length (l4)
27,7 mm
Point type
Thinned point
Surface
Bright
Shank type
Straight shank
Shape
D
Norm
DIN 332-D
  • Brand PHANTOM
  • EAN 8716563331230
  • Supplier number PHANTOM 158201000
