PHANTOM

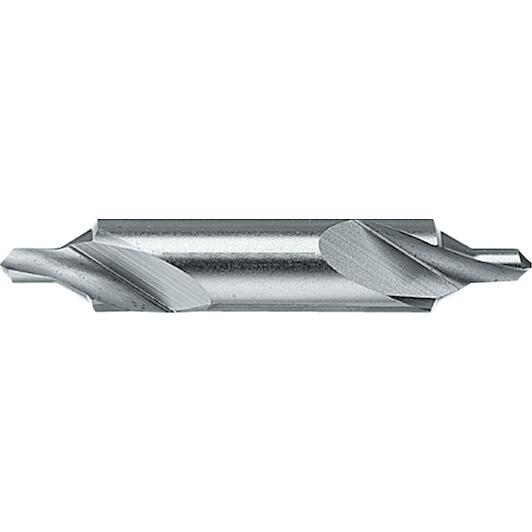

PHANTOM 153805012 HSS centre drill bit DIN 333-B double-angled' 60°' 120° 5x12 mm

36.06 tax incl.
€29.80 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product Description:

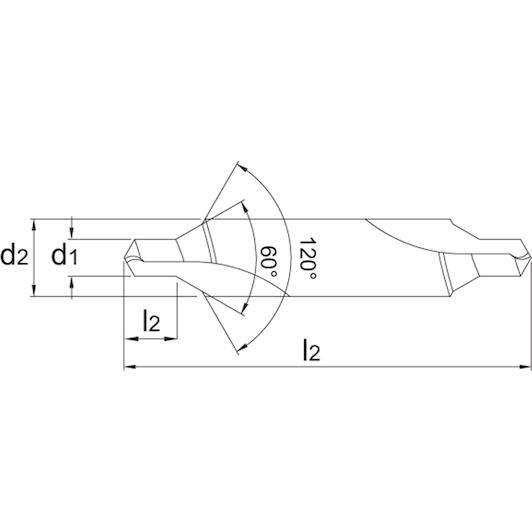

  • Phantom HSS Centre Drill DIN 333-B Bell type 60° 120°
  • DIN 333-B, the angle of 120° countersinks and protects the bore
Key features according to our expert
  • Diameter: 5 mm
  • Point angle: 60 °
  • Overall length: 63 mm
  • Shank size: 12 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563330097
  • Supplier number: PHANTOM 153805012
Diameter
5 mm
Point angle
60 °
Overall length
63 mm
Shank size
12 mm
Shank ø (d2)
12 mm
Total length (l1)
63 mm
Tool material
HSS
Drill diameter (d1)
5 mm
Tolerance d2 (tol. d2)
h7
Coolant feed
No
Flute length from till (l2)
6,3-7,2 mm
Cutting direction
Right
Tolerance d1 (tol. d1)
k12
Surface
Bright
Point type
Relieved cone
Shank type
Straight shank
Shape
B
Norms
DIN 333-B
