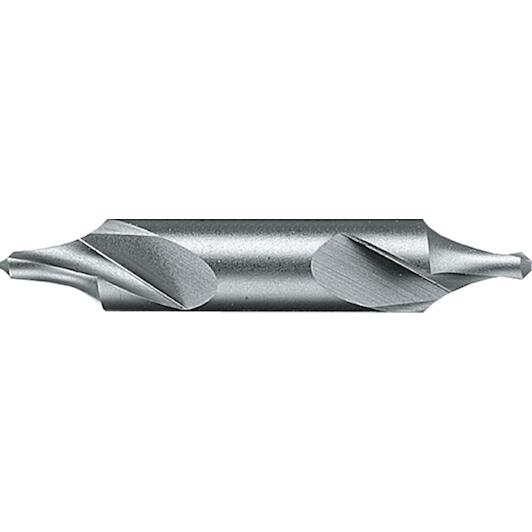

PHANTOM 152501640 HSS centre drill bit DIN 333-R with radius' 60° 1'6x4 mm

7.54 tax incl.
€6.23 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product Description:

  • Phantom HSS Centre Drill DIN 333-R radius form 60°
  • DIN 333-R, the radius strengthens the point and protects the bore that has been countersunk by the radius. The radius also guarantees accurate centring
Key features according to our expert
  • Diameter: 1,6 mm
  • Point angle: 60 °
  • Overall length: 35 mm
  • Shank size: 4 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563329596
  • Supplier number: PHANTOM 152501640
Diameter
1,6 mm
Point angle
60 °
Overall length
35 mm
Shank size
4 mm
Radius (r)
4 mm
Total length (l1)
35 mm
Tool material
HSS
Drill diameter (d1)
1,6 mm
Tolerance d2 (tol. d2)
h7
Coolant feed
No
Flute length from till (l2)
4,2-4,7 mm
Cutting direction
Right
Tolerance d1 (tol. d1)
k12
Surface
Bright
Shank ø (d2)
4 mm
Point type
Relieved cone
Shank type
Straight shank
Shape
R
Norms
DIN 333-R
