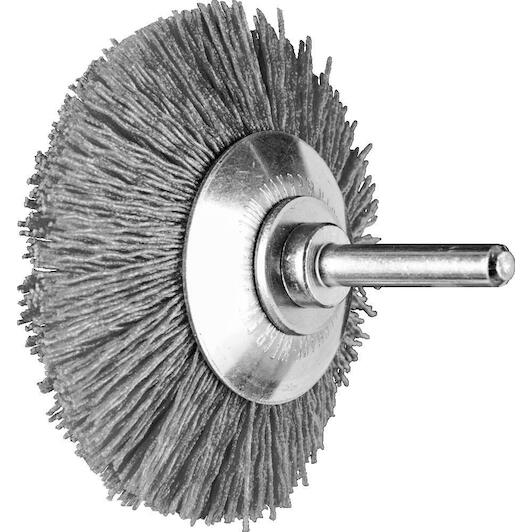

PFERD KBU 7010/6 CO 120 0,55 disk brush unturned Ø 70x10 mm shank-Ø 6 mm ceramic filament wire-Ø 0.55 mm grit 120 - 43220075

Show more features

Brush diameter

70 mm

Connection size (machine)

6 mm

Connection type (machine)

Shank

Wire thickness

0,55 mm

Twisted

No

Thickness

10 mm

Max. no-load speed

15000 rpm

Filling material

Ceramic grit (CO)

Workable materials 1

Bronze

Grit size

120

Processing tasks

Cleaning

Workable materials 12

Steel grades with hardness > 54 HRC

Length, trim

15

Processing tasks 1

Deburring

Workable materials 14

Titanium

Max. rpm

15000

ø outside metric

70

Workable materials 3

Cast steel

Workable materials 9

Other non-ferrous metals

Workable materials 7

Nickel-based alloys (e.g. Inconel and Hastelloy)

Workable materials 10

soft titanium alloys (tensile strength 500 N/mm²)

ø topping material

0.55

Rpm, opt., to

9800

Workable materials 5

Non-ferrous metal hard

Workable materials 13

Steel up to 1,200 N/mm² (< 38 HRC)

Workable materials 4

Cobalt-based alloys

Workable materials 6

Heat-resistant materials

Workable materials

Aluminium

Workable materials 2

Cast iron

Width metric

10

Processing tasks 2

Texturing (matting, seamless matting and satin)

Workable materials 11

Steel, cast steel

Workable materials 15

Titanium alloys

Recording system

Pin

Length, total

58

ø shaft metric

6

Workable materials 8

Nickel- or titanium-based superalloys

Rpm, opt., of

6000
