PFERD

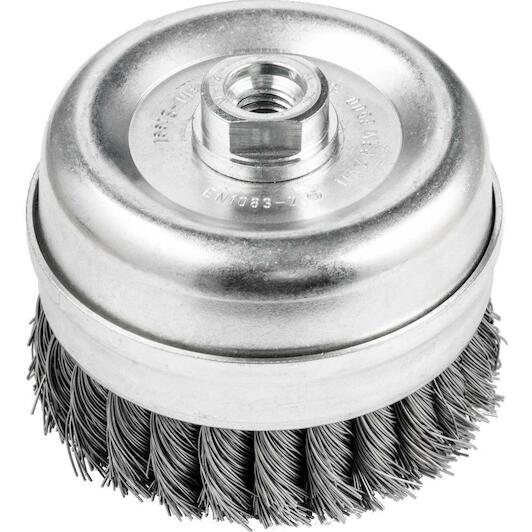

PFERD 43308001 cup brush with support ring knotted TBGR Ø 100 mm M14 steel wire dia. 0.50 mm angle grinders

55.64 tax incl.
€45.98 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/09/2026
each

  • Ordered before 20:00 - delivered as of 01/09/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • PFERD cup brush with bridle knotted TBGR dia. 100mm M14 steel wire dia. 0.50mm angle grinders

Characteristics

  • Aggressive brush with bridle
  • Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter on large areas
  • Steel wire is the most common filament material
  • Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
  • PFERD special wire has high tensile strength and bending fatigue strength
  • This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications
  • Steel wire withstands temperatures up to 300 °C

Advantages:

  • The bridle prevents the wires spreading out sideways.
  • Particularly long tool life.
  • The bridle enables the spreading out and flexibility of the brush filament to be controlled.
  • If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behaviour.
  • Aggressive brushing effect due to the very stiff wire knots.
  • Long tool life through use of PFERD special wire.
Key features according to our expert
  • Brush diameter: 100 mm
  • Connection size (machine): M14
  • Connection type (machine): Internal thread
  • Twisted: Yes
  • Wire thickness: 0,5 mm
  • Material (brush filament): Steel wire
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220153505
  • Supplier number: PFERD 43308001
Brush diameter
100 mm
Connection size (machine)
M14
Connection type (machine)
Internal thread
Twisted
Yes
Wire thickness
0,5 mm
Material (brush filament)
Steel wire
Processing tasks 1
Deburring
Workable materials 1
Cast steel
Processing tasks
Cleaning
Processing tasks 3
Oxidation removal
Length, trim
40
Max. rpm
8500
Filling material
Steel wire (ST)
Processing tasks 5
Removal of lacquers
Workable materials 4
Steel up to 1,200 N/mm² (< 38 HRC)
ø outside metric
100
Workable materials 3
Steel grades with hardness > 54 HRC
ø topping material
0.5
Rpm, opt., to
8500
Number, threaded ends
26
Processing tasks 8
Corner seam machining
Processing tasks 7
welding
Processing tasks 4
Removing oxide layers
ø thread
M14x2
Recording system
Thread
Length, siege to ring
25
Processing tasks 6
V-seam machining
Processing tasks 2
Derusting
Workable materials 2
Steel, cast steel
Workable materials
Cast iron
Rpm, opt., of
4300
