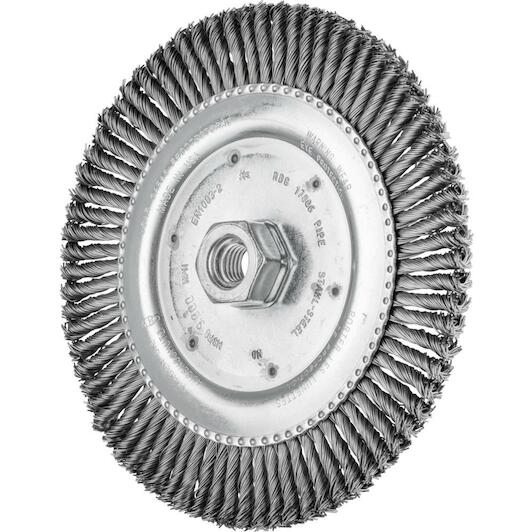

PFERD 17806/M14 PIPE ST 0,50 76Z PIPELINE brush twisted RBG Ø 178x6mm M14 steel wire-Ø 0.50mm 76 threaded ends angle grinder - 43303805

63.27 tax incl.
€52.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 04/09/2026
each

The minimum purchase order quantity for the product is 10.

  • Ordered before 20:00 - delivered as of 04/09/2026
  • Free shipping
  • Delivery by DHL

Product description

  • PFERD PIPELINE brush knotted RBG dia. 178x6 mm M14 steel wire dia. 0.50 mm 76 knots angle grinders

Characteristics

  • Aggressive and robust brush that is able to withstand high mechanical loads
  • Perfect for heavy-duty brushing in pipeline and container construction
  • Steel wire is the most common filament material
  • Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
  • PFERD special wire has high tensile strength and bending fatigue strength
  • This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications
  • Steel wire withstands temperatures up to 300 °C

Advantages:

  • Aggressive brushing effect due to the very stiff wire knots.
  • Extra-slim design enables optimal access to hard-to-reach areas such as root weld seams.
  • Long tool life through use of PFERD special wire.
Key features according to our expert
  • Brush diameter: 178 mm
  • Connection type (machine): Internal thread
  • Material (brush filament): Steel wire
  • Wire thickness: 0,5 mm
  • Twisted: Yes
  • Thickness: 6 mm
  • Max. no-load speed: 9000 rpm
  • Connection size (machine): M14
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220751114
  • Supplier number: PFERD 43303805
Brush diameter
178 mm
Connection type (machine)
Internal thread
Material (brush filament)
Steel wire
Wire thickness
0,5 mm
Twisted
Yes
Thickness
6 mm
Max. no-load speed
9000 rpm
Connection size (machine)
M14
Processing tasks 1
Deburring
Workable materials 1
Cast steel
Processing tasks
Cleaning
Processing tasks 3
Oxidation removal
ø shaft hole
0
Length, trim
28
ø outside metric
178
Filling material
Steel wire (ST)
Processing tasks 5
Removal of lacquers
Max. rpm
9000
Workable materials 4
Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials 3
Steel grades with hardness > 54 HRC
ø topping material
0.5
Rpm, opt., to
8500
Number, threaded ends
76
ø thread
M14x2
Width metric
6
Workable materials
Cast iron
Recording x-lock
ohne
Workable materials 2
Steel, cast steel
Processing tasks 7
welding
Processing tasks 2
Derusting
Processing tasks 6
V-seam machining
Placement of toppings
twisted Pipeline
Recording system
Thread
Processing tasks 8
Corner seam machining
Processing tasks 4
Removing oxide layers
Rpm, opt., of
4500
