MITUTOYO K551048 Eco-Fix clamping system kit S 60-piece

Name: MITUTOYO K551048 Eco-Fix clamping system kit S 60-piece
Brand: MITUTOYO
SKU: 02866070
Price: 1031.2 EUR
Availability: PreOrder

Supplier number: MITUTOYO K551048 | EAN 4250516610408

Recommended Retail Price €1,292.40

1,031.20 tax incl.

€852.23 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

kit

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precise workpiece clamping with Mitutoyo K551048

Practical benefits

Modular and flexible fixturing: You quickly build adaptable clamping setups for coordinate measuring machines without needing dedicated custom fixtures.
Stable and repeatable positioning: The included base plate and various location pins ensure you position workpieces reliably for accurate inspection.
Complete set with tools: You receive all necessary spring clamps, receiver brackets, and hex keys to assemble your setup immediately.

In a nutshell

The right choise for

With the Mitutoyo K551048 Eco-Fix clamping kit, you secure workpieces stably, flexibly, and repeatably on your coordinate measuring machine. This 60-piece modular system eliminates the need for dedicated custom fixtures and speeds up your inspection workflow. The 250 mm x 250 mm base plate with M6 grid works seamlessly with locating pins, clamping claws, receiver brackets, and spring clamps to give you obstruction-free probe access without vibrations. Complete with dedicated hex keys and an open-ended spanner, you can assemble precise fixturing setups immediately.

Product information FAQ

€1,031.20

tax incl.

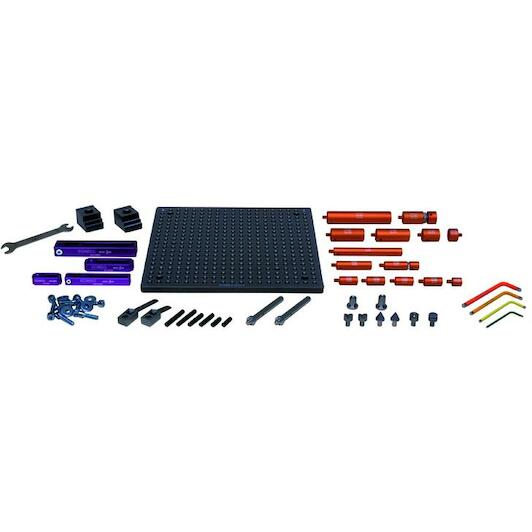

Scope of delivery

1x K551034 - Bottom plate 250 mm x 250 mm
2x K551032 - Clamping claw
1x K551024 - Location pin Ø 12 mm x 13 mm
1x K551025 - Location pin Ø 12 mm x 25 mm
1x K551026 - Location pin Ø 12 mm x 50 mm
1x K551027 - Location pin Ø 12 mm x 100 mm
1x K551028 - Location pin Ø 20 mm x 13 mm
1x K551029 - Location pin Ø 20 mm x 25 mm
1x K551030 - Location pin Ø 20 mm x 50 mm
1x K551031 - Location pin Ø 20 mm x 100 mm
1x K551040 - Adjustable location pin Ø 20 mm
1x K551041 - Adjustable location pin Ø 12 mm
3x K551042 - Location pin Ø 12 mm with bore 6 mm
1x K551035 - Collecting bracket small
1x K551036 - Locating bracket large
1x K551044 - Locating pin L = 90 mm, Ø 12 mm
1x K551045 - Support bar L = 120 mm, Ø 20 mm
1x K551046 - Slotted nut for catch bracket h = 12 mm
1x K551047 - Slotted nut for catch bracket h = 15 mm
2x K550262 - V-block mini, Ø 12 mm
2x K550261 - Cone receiver mini, Ø12 mm
1x K550250 - Stop element mini, Ø 6 mm
1x K550247 - Back square mini, Ø 6 mm
2x K550888 - Straight pin Ø 6 mm x 20 mm
2x K550889 - Straight pin Ø 6 mm x 30 mm
2x K550890 - Straight pin Ø 6 mm x 40 mm
2x K550716 - Straight pin with thread, M6 x 75 mm
< li>1x K550279 - Spring clamp, Ø 8 mm, L = 60 mm
1x K550554 - Spring clamp, Ø 8 mm, L = 40 mm
2x K550563 - Cylinder head screw M6 x 25 mm
6x K550110 - Machine head screw M6 x 20 mm
8x K550591 - Washer Ø 6.4 mm x Ø 17 mm
1x K551050 - Allen key 2 mm
1x K551051 - Allen key 3 mm
1x K551052 - Allen key 4 mm
1x K551053 - Allen key 5 mm
1x K551054 - Double open end spanner 10-17

Brand MITUTOYO
02866070
EAN 4250516610408
Supplier number MITUTOYO K551048

Frequently asked questions about this product

Answered by specialists

What is the Mitutoyo K551048 Eco-Fix clamping kit used for?: This modular fixture kit is designed for stable, flexible, and repeatable workpiece clamping on coordinate measuring machines (CMM).
What are the dimensions of the included base plate?: The set includes a 250 mm x 250 mm base plate with an M6 threaded hole grid spaced at 12.5 mm intervals.
How do you secure parts onto the fixturing system?: You screw locating pins directly into the plate grid or receiver brackets, then clamp the workpiece using spring clips and clamping claws.
Are assembly tools included in the kit?: Yes, the kit comes with hex keys (2, 3, 4, and 5 mm) and a 10-17 double open-ended spanner.
