What is the measuring range of this dial indicator?

This dial indicator has a measuring range of 10 mm with 1 mm travel per revolution.

What graduation does the Mitutoyo 2046AB-09 feature?

The indicator features a precise graduation of 0.01 mm.

What type of back does this model have?

This model comes with a flat back without a mounting lug.

Is this dial indicator shockproof?

Yes, it is equipped with a shockproof mechanism to protect internal components.

What is the stem diameter of this indicator?

The mounting stem has a standard diameter of 8 mm for use with regular holders and stands.

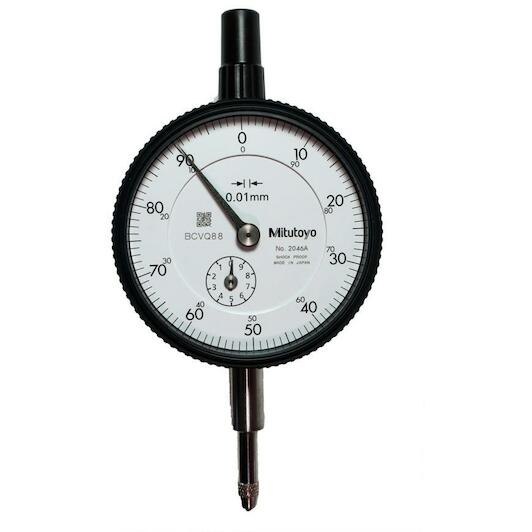

MITUTOYO 2046AB-09 dial gauge with flat back, ISO version, shock-proof, 10 mm, 0.01mm

Name: MITUTOYO 2046AB-09 dial gauge with flat back, ISO version, shock-proof, 10 mm, 0.01mm
Brand: MITUTOYO
SKU: 03217537
Price: 74.8 EUR
Availability: PreOrder

Supplier number: MITUTOYO 2046AB-09 | EAN 4946368841946

74.80 tax incl.

€61.82 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Precise tolerance inspection with Mitutoyo

Practical benefits

Accurate and fine readings: Featuring a 0.01 mm graduation and a 10 mm range, you capture precise dimensional variances.
Reliable shockproof internal mechanism: The shockproof build protects internal components against sudden spindle movements during regular workshop use.
Flat back mounting versatility: The flat back design allows you to secure the dial indicator flush against fixtures or stands.

In a nutshell

The right choise for

With the Mitutoyo 2046AB-09 dial indicator, you accurately verify dimensional tolerances in the workshop or inspection lab. Featuring a 10 mm measuring range and a fine 0.01 mm graduation, it allows you to detect minute variations in alignment, runout, and surface flatness with ease. The shockproof internal mechanism protects sensitive gear components from sudden spindle impacts during daily use, ensuring lasting accuracy. Thanks to the flat back design, you can mount the indicator flush and securely onto fixtures or stands using the standard 8 mm stem. You achieve consistent, reliable measurements every single time.

Product information FAQ

€74.80

tax incl.

Key features according to our expert

Measuring range: 10 mm
Scale division: 0,01 mm mm

Product description

This is a standard model metric dial gauge with 0.01 mm scale, with housing Ø 57 mm, 10 mm range
Probe lever (optional) can be connected to the right or left. They can be easily mounted and removed without tools.
No through screw holes in the frame and precise fit between the housing and the glass and the use of an O-ring prevents water or oil penetration

All Features

Measuring range: 10 mm
Scale division: 0,01 mm mm

Brand MITUTOYO
03217537
EAN 4946368841946
Supplier number MITUTOYO 2046AB-09

Frequently asked questions about this product

Answered by specialists

What is the measuring range of this dial indicator?: This dial indicator has a measuring range of 10 mm with 1 mm travel per revolution.
What graduation does the Mitutoyo 2046AB-09 feature?: The indicator features a precise graduation of 0.01 mm.
What type of back does this model have?: This model comes with a flat back without a mounting lug.
Is this dial indicator shockproof?: Yes, it is equipped with a shockproof mechanism to protect internal components.
What is the stem diameter of this indicator?: The mounting stem has a standard diameter of 8 mm for use with regular holders and stands.
