Product description:
- These optional interchangeable measuring pins enable precision measurement of flank diameters.
Supplier number:
MITUTOYO 124-822
|
EAN
4946368014180
137.40
tax incl.
€113.55 excl. VAT (incl. all environmental contributions)
Reliable gear inspection with Mitutoyo
Practical benefits- Precise gear tooth measurement: You accurately determine over-pin diameters on module 1.5 gears with dedicated spherical contact points.
- Hardened precision ball anvils: The 2.5mm spherical tips provide consistent alignment and prevent deflection during repetitive quality checks.
- Seamless interchangeable tip fit: You easily pair these inserts with series 324 gear tooth micrometers for dependable measurements.
In a nutshell

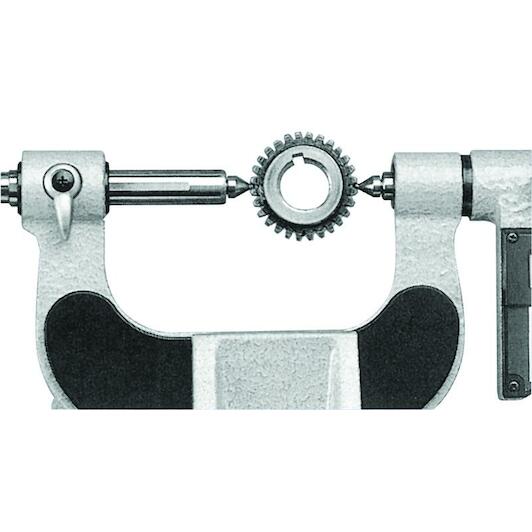

The right choise forWith the Mitutoyo 124-822 ball insert set, you achieve dependable precision during gear tooth inspections. This 2-piece set with 2.5 mm precision balls is specifically designed to measure over-pin diameters and pitch dimensions on module 1.5 gears. You can quickly fit the interchangeable tips onto the anvil and spindle of your compatible Mitutoyo series 124 or 324 gear tooth micrometer. The spherical contact points seat accurately against curved gear tooth flanks, eliminating alignment errors and ensuring consistent, repeatable results across all your dimensional quality checks.
Product information
Key features according to our expert
- Accessory/Part type: Ball tip set for micrometer
All Features
- Accessory/part type
- Ball tip set for micrometer
- Brand MITUTOYO
- EAN 4946368014180
- Supplier number MITUTOYO 124-822
Frequently asked questions about this product
Answered by specialists
- What is the Mitutoyo 124-822 tip set used for?
- It is used with a gear tooth micrometer to measure the over-pin or over-ball diameter of gears.
- Which micrometers are compatible with this set?
- This set is compatible with Mitutoyo series 124 and 324 gear tooth micrometers.
- Which gear module is this set designed for?
- This ball tip set is specifically designed for gear module 1.5.
- What is the ball diameter of this insert?
- The ball anvil has a diameter of 2.5 mm.
- How many tips are included in this set?
- The set includes 2 pieces: one anvil tip and one spindle tip.
