Which rotary hammers are compatible with this extractor?

It fits all Milwaukee SDS-plus rotary hammers and competitor tools with a 41 to 61 mm collar diameter.

What maximum drill bit size can be used?

It supports drill bits up to 30 mm in diameter and 210 mm in length, with a maximum drilling depth of 203 mm.

What filter type is installed in this unit?

The tool is equipped with a HEPA H13 filter for reliable capture of fine concrete dust.

Are a battery and charger included in the box?

No, this M12 UDEL-0B model is supplied as a bare tool in a tool bag without battery or charger.

How do you empty the dust box cleanly?

The transparent dust box features a 32 mm port to connect an external vacuum for dust-free emptying.

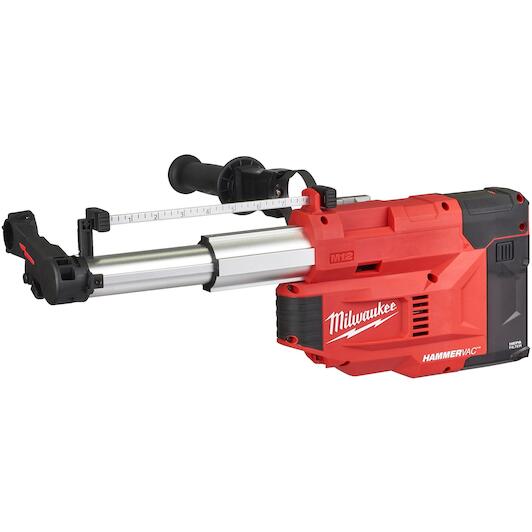

MILWAUKEE M12 UDEL-0B universal dust extractor in transport bag (without battery and charger) - 4933471460

Name: MILWAUKEE M12 UDEL-0B universal dust extractor in transport bag (without battery and charger) - 4933471460
Brand: MILWAUKEE
SKU: 03167226
Price: 286.04 EUR
Availability: PreOrder

Supplier number: MILWAUKEE 4933471460 | EAN 4058546290887

Variant

This product has been discontinued.

✆ Talk to a specialist

How does it work?

Buy Milwaukee products with a total order value of at least €250 excl. VAT.
For a total order value of €250 excl. VAT up to but excluding €500 excl. VAT, you receive a FREE Milwaukee 12-piece Tri-Lobe screwdriver set (4932472003) worth €55.90.
For a total order value of €500 excl. VAT up to but excluding €750 excl. VAT, you receive a FREE Milwaukee M18 125 mm Random Orbital Sander cordless random orbital sander (4933464228) worth €168.90.
For a total order value of €750 excl. VAT or more, you receive a FREE Milwaukee M18 FUEL 125 mm cordless angle grinder with slide switch and brake (4933498062) worth €357.90.
The free item is automatically added to your order. No registration is required.
This promotion cannot be combined with the ongoing Milwaukee Cashback Promotion on Milwaukee hand tools. An invoice for which you receive a free Buy More, Get More gift therefore cannot also be submitted for the Milwaukee hand tools cashback promotion.
The promotion is valid from 01.10.2026 to 31.10.2026.
Milwaukee Buy More, Get More deals are recognisable by the promotion label on the product page. Click the label to view all available deals.

Dustless drilling performance with Milwaukee

Practical benefits

Broad universal tool compatibility: You can attach this extractor to most SDS-plus rotary hammers with a 41 to 61 mm collar using the versatile side handle.
High efficiency particulate filtration: The built-in HEPA H13 filter captures fine dust directly at the source, helping you maintain a cleaner and safer workspace while drilling.
Flexible capacity and reach: A telescopic guide and two interchangeable nozzles allow you to use drill bits up to 210 mm long and 30 mm in diameter.

In a nutshell

The right choise for

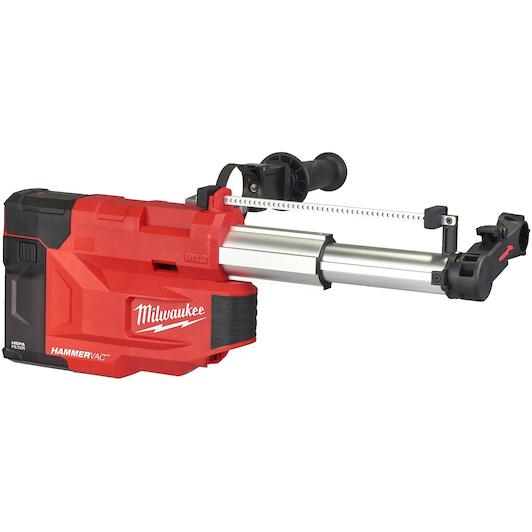

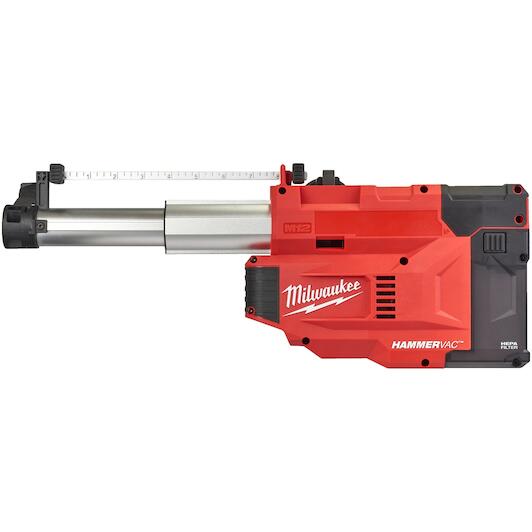

Drill cleanly and protect your working environment with the Milwaukee M12 UDEL-0B universal dust extractor. This compact attachment captures harmful concrete and masonry dust right at the drill hole, eliminating the hassle of holding a separate vacuum hose during overhead drilling tasks. With its adjustable side handle, the unit fits securely onto most SDS-plus rotary hammers featuring a 41 to 61 mm collar. The built-in hepa H13 filter reliably traps fine airborne particles to maintain clean air on the jobsite. Thanks to the telescopic guide and two interchangeable nozzles, it easily accommodates drill bits up to 210 mm in length and 30 mm in diameter. Supplied in a sturdy tool bag without battery or charger.

Product information Accessories FAQ

Key features according to our expert

Supplied as standard

No batteries supplied
No charger supplied
Supplied in: Tool bag
2x nozzles
Side handle

Product description

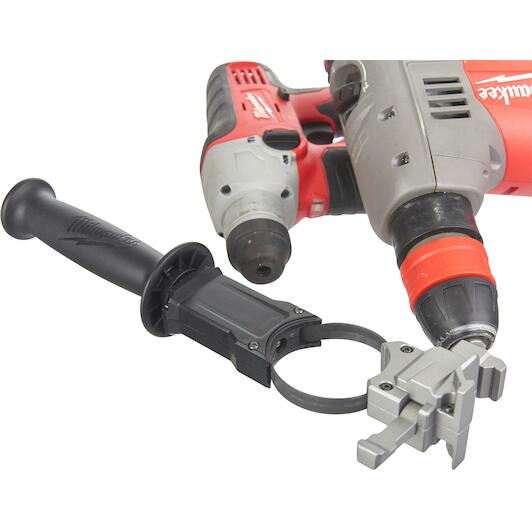

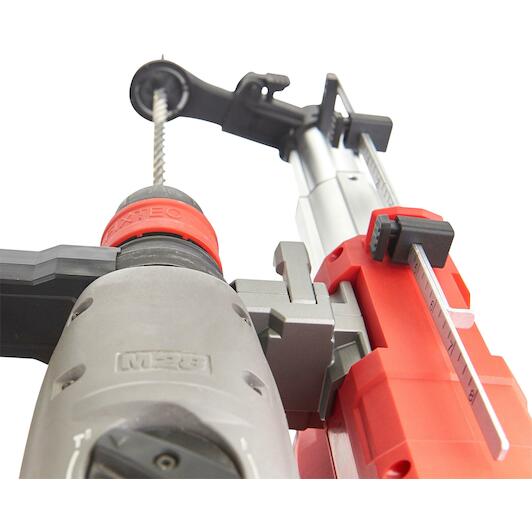

Fits all MILWAUKEE SDS-plus and the majority of competitor's hammers between 41-61 mm neck size with just one adjustable side handle which can be mounted right or left of the hammer

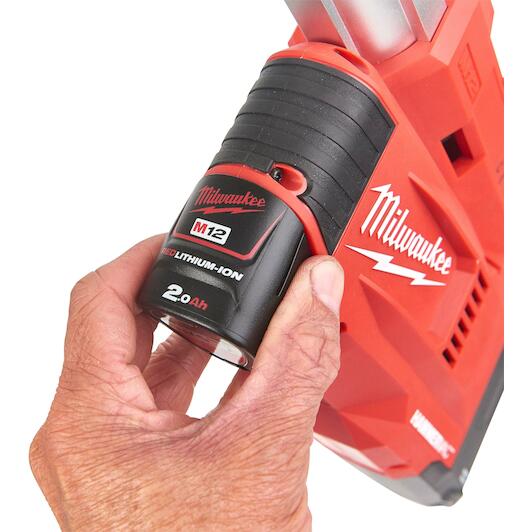

Delivering more than 40 min run time on a single M12 B2 2.0 Ah battery
Due to telescopic nozzle capable of operating with up to 210 mm long SDS-plus drill bits

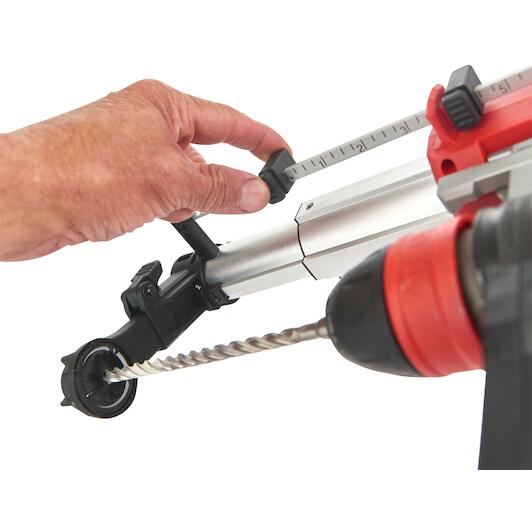

Adjustable drilling depth gauge for a perfect adjustment to the task

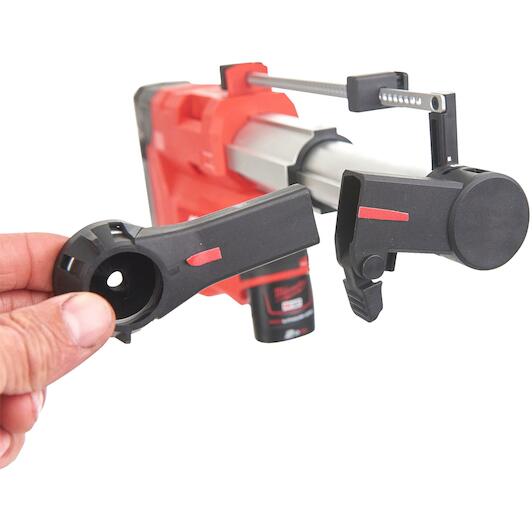

2 exchangeable nozzles with brushes to cover drilling diameters up to Ø30 mm ( Ø5-16 mm, Ø16-30 mm)

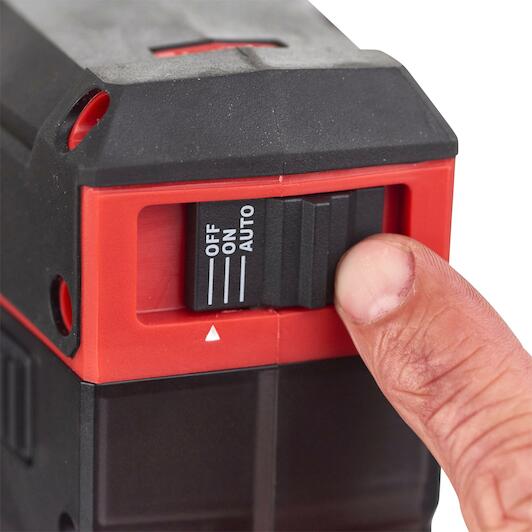

2 different vacuum modes to switch the unit either permanently on or activate it automatically when the actual drilling starts
Automatic 5 sec switch off time delay to ensure a clean drill hole

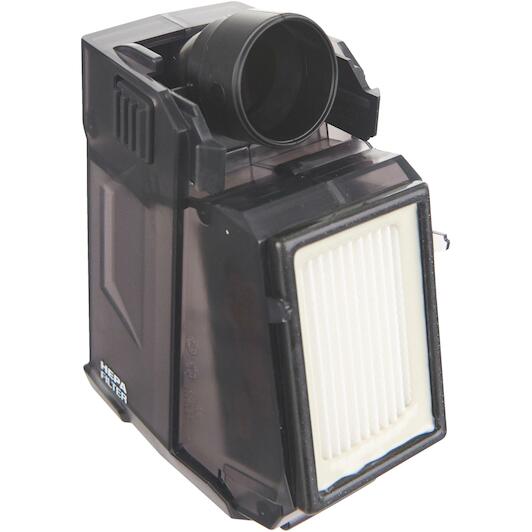

Equipped with a HEPA H13 class filter as well as a filter cleaning mechanism for best performance and a longer filter life time

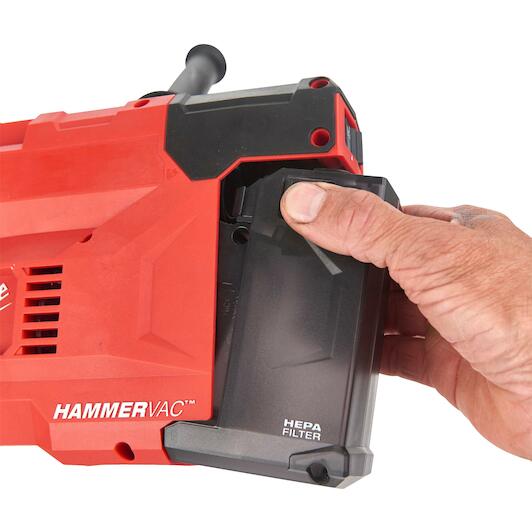

Equipped with a transparent tank for full capacity visibility as well as a Ø32 mm vacuum connector to empty the dust bin without any dust exposure

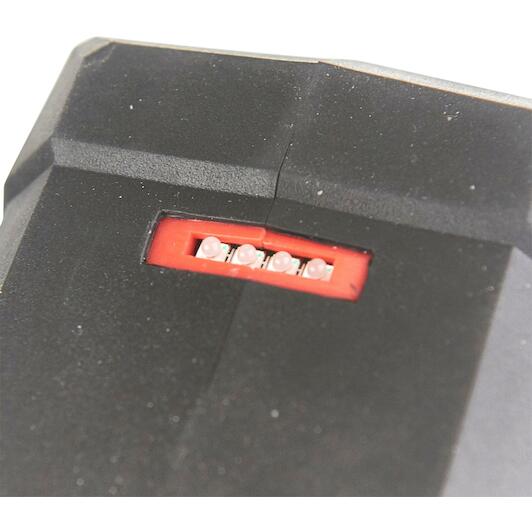

Fuel gauge displays remaining charge

All Features

Air volume (l/min): 466
Drilling diameter (mm): 30
Sound pressure level, deviation (db(a)): 2
Air flow rate (m/hour): 28
Sound power level, deviation (db(a)): 2
Vibration level, deviation (m/s²): 0.5
Sound power level (lwa(db(a)): 86.5
Vibration level (m/s²): 0.2
Liquid capacity (l): 0.31
Max. vacuum (mbar): 23.4
Battery type: Li-ion
Voltage (v): 12
Stroke length (mm): 203
Max. drilling length (mm): 210
Max drilling depth (mm): 203

Brand MILWAUKEE
03167226
EAN 4058546290887
Supplier number MILWAUKEE 4933471460
