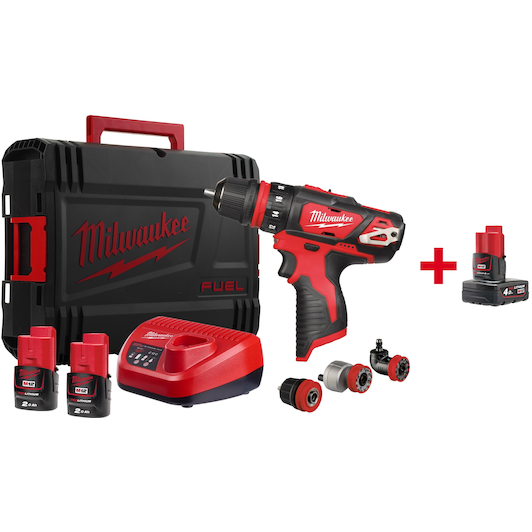

MILWAUKEE M12 BDDXKIT-202C subcompact cordless drill in case (2x 2.0Ah battery + charger) - 4933447836

MILWAUKEE
Supplier number: MILWAUKEE 4933447836 | EAN 4002395006595
Recommended Retail Price €373.13
297.71 tax incl.
€246.04 excl. VAT (incl. all environmental contributions)
On order: delivered from 31/10/2026

✆ Talk to a specialist

Exceptional versatility in tight spots

Practical benefits
  • Milwaukee FIXTEC quick-change system: You effortlessly switch between the standard chuck, offset head, and right-angle attachment to reach difficult corners and edges.
  • Ultra compact body length: Removing the chuck reduces the tool length to 153 mm using the 1/4" hex drive, allowing you to work inside tight spaces.
  • Controlled power and torque: Delivering 32 Nm of torque across 18 clutch settings, you achieve clean results in both wood and metal.

In a nutshell

The right choise for

With the Milwaukee M12 BDDXKIT-202C, you can easily drill and drive in confined spaces and right up against edges. Thanks to the removable fixtec chuck system, you quickly switch between the standard 10 mm keyless chuck, the offset attachment, and the right-angle head. Removing the chuck reveals the direct 1/4" hex drive, shortening the tool to just 153 mm for easy access inside cabinets. Delivering 32 Nm of torque across 18 clutch settings, it drills up to 25 mm in wood and 10 mm in steel. Its lightweight 1 kg build ensures comfortable overhead use. This complete set comes in a carry case with two 12V 2.0Ah M12 B2 batteries, a C12 C charger, belt clip, and PZ2 bit.

Recommended Combinations
With Milwaukee M12 3 Ah Battery
With Milwaukee M12 4 Ah Battery
milwaukee_4933447836
MILWAUKEE M12 BDDXKIT-202C... x 1
297.71
milwaukee_4932451388
MILWAUKEE M12 B3 Li-ion... x 1
89.00
Original Price (tax incl.): 386.71
You Save: -4.45
Bundle Price (tax incl.): 382.26


Product information FAQ
€297.71
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 12 V
  • Number of settings (torque): 18 (+drill mode)
  • Number of batteries included: 2
  • Chuck material: Plastic
  • Weight: 1 kg
  • Type of system case: Not applicable
  • Supplied in: Case
  • UN number: UN3481
  • Max. tightening torque: 32 Nm
  • Capacity (battery): 2 Ah
  • Max. drilling diameter (wood): 25 mm
  • Max. clamping capacity: 10 mm
  • Min. clamping capacity: 1,5 mm
  • Max. drilling diameter (steel): 10 mm
  • Product Range: Milwaukee M12

Supplied as standard

  • 2 x M12 B2 Battery packs
  • C12 C Charger
  • Supplied in: Kitbox
  • Removable FIXTEC chuck
  • Offset attachment
  • Right angle drill attachment
  • Belt clip
  • 25 mm PZ2 bit

Product description

  • High performance sub compact 5-in-1 drill driver system for extreme versatility
  • Removable chuck system with 3 different heads for multiples of applications
  • Standard 10 mm keyless chuck, full metal right angle 1/4" hex drive head and full metal offset 1/4" hex drive head
  • 1/4" hex drive behind chuck fitting, reduces drill length to 153 mm when required
  • REDLINK overload protection electronics in tool and battery pack deliver best in class system durability
  • Full metal planetary gearbox transmission for extreme durability
  • LED light for workspace illumination
  • Flexible battery system: works with all MILWAUKEE M12 batteries

All Features

Battery voltage
12 V
Number of settings (torque)
18 (+drill mode)
Number of batteries included
2
Chuck material
Plastic
Weight
1 kg
Type of system case
Not applicable
Supplied in
Case
Un number
UN3481
Max. tightening torque
32 Nm
Capacity (battery)
2 Ah
Max. drilling diameter (wood)
25 mm
Max. clamping capacity
10 mm
Min. clamping capacity
1,5 mm
Max. drilling diameter (steel)
10 mm
Wood screws up to (mm)
6
Screw vibration level (m/s²)
0.4
Max chuck capacity (mm)
10
Sound power level (lwa(db(a))
96
Vibration level drilling in metal, deviation (m/s²)
1.5
Sound power level, deviation (db(a))
3
Vibration level screws, deviation (m/s²)
1.5
Sound pressure level, deviation (db(a))
3
Product range
Milwaukee M12
Voltage (v)
12
Battery type
Li-ion
Max. drill ø in steel (mm)
10
Speed level 1 (rpm)
0 - 400
Max. drill ø in wood (mm)
25
Vibration level drilling in metal (m/s²)
1.5
Number of batteries supplied
2
Max. torque (nm)
32

Frequently asked questions about this product

Answered by specialists
Which chuck attachments are included with this kit?
It includes a removable 10 mm FIXTEC keyless chuck, an offset attachment, and a right-angle attachment.
What is the maximum drilling capacity of this tool?
It drills up to 25 mm in wood and up to 10 mm in steel.
Can you use screwdriver bits directly without an attachment?
Yes, the spindle has a built-in 1/4" hex drive behind the fitting, giving a compact length of 153 mm.
Which batteries are compatible with this drill driver?
The tool is compatible with all 12V batteries from the Milwaukee M12 platform.
What is the maximum torque output of this machine?
It delivers a maximum torque of 32 Nm across 18 clutch settings plus drill mode.
