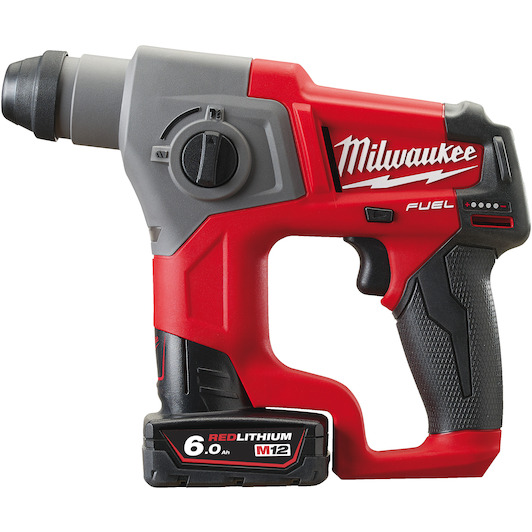

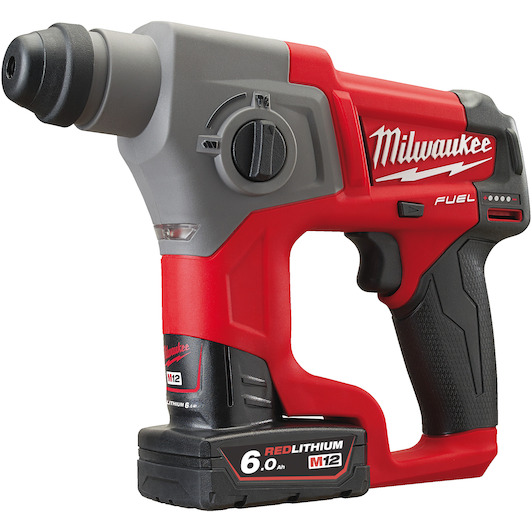

MILWAUKEE CH-602X M12 FUEL sub compact SDS-plus cordless drill in HD box (2 x 6.0Ah battery + charger) - 4933451510

MILWAUKEE
Supplier number: MILWAUKEE 4933451510 | EAN 4002395161584
This product has been discontinued.

Successor to this product

milwaukee_4933451510
MILWAUKEE M12 FHAC16-502X FUEL compact cordless drill SDS-Plus...
View product
✆ Talk to a specialist


Product information Accessories

Product information

Key features according to our expert

  • Battery voltage: 12 V
  • Capacity (battery): 6 Ah
  • Tool holder type: SDS-plus
  • Impact energy: 1,1 J
  • Max. drilling diameter (concrete): 13 mm
  • Max. drilling diameter (wood): 13 mm
  • Max. drilling diameter (steel): 10 mm
  • Supplied in: System case
  • Type of system case: HD Box
  • Weight: 1,5 kg
  • UN number: UN3481
  • Number of batteries included: 2
  • Product Range: Milwaukee M12 FUEL

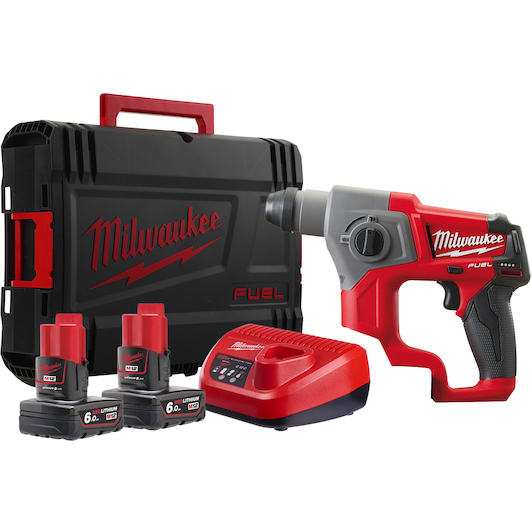

Scope of delivery

  • 2 x M12 B6 Battery packs
  • C12C Charger
  • HD Box

Product description

  • Industry's first brushless compact 12V rotary hammer with 1.1 Joules (EPTA), 0 - 6575 bpm & 0 - 900 rpm
  • Exceptionally low vibration value 8.8 m/s² can be used for 8 hours in a day
  • Will drill over 60 50 mm x 6 mm holes per battery charge
  • Superior power to weight ratio in its class with brushless POWERSTATE motor for up to 3x longer motor life and up to 2x more run time
  • REDLINK PLUS intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load
  • REDLITHIUM battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

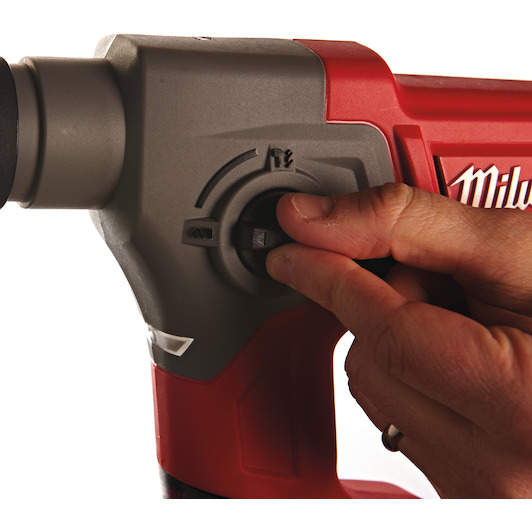

  • 2-mode operation: choose rotary hammer or rotation only for maximum versatility
  • Optimised hammer drilling up to 6 - 10 mm (max 13 mm)
  • 43 mm neck size - compatible with M12 DE dust extractor
  • Flexible battery system: works with all MILWAUKEE M12 batteries

All Features

Battery voltage
12 V
Capacity (battery)
6 Ah
Tool holder type
SDS-plus
Impact energy
1,1 J
Max. drilling diameter (concrete)
13 mm
Max. drilling diameter (wood)
13 mm
Max. drilling diameter (steel)
10 mm
Supplied in
System case
Type of system case
HD Box
Weight
1,5 kg
Un number
UN3481
Number of batteries included
2
Drilling capacity in concrete (mm)
Ø 5.5 - 12
Battery capacity (ah)
6.0
Vibration level when drilling (m/s²)
8.8
Max. drill ø in concrete (mm)
13
Vibration level drilling, deviation (m/s²)
1.5
Sound power level (lwa(db(a))
95.5
Sound power level, deviation (db(a))
3
Sound pressure level (lpa(db(a))
84.5
Sound pressure level, deviation (db(a))
3
Impact energy (j(epta))
1.1
Voltage (v)
12
Battery type
Li-ion
Loaded number of strokes (per min)
0 - 6575
No load speed (rpm)
0 - 900
Max. drill ø in wood (mm)
13
Number of batteries supplied
2
Max. drill ø in steel (mm)
10
Product range
Milwaukee M12 FUEL
