Scope of delivery
- Carbide saw blade with alternately bevel-ground tips (30 teeth)
- Stand
- Hard rubber tyres
- Rip Fence
- Mitre Fence
- Table Length Extension
- Table width extension (left)
- Table width extension (right)
- Chip and Dust Extraction Unit
- Push stick

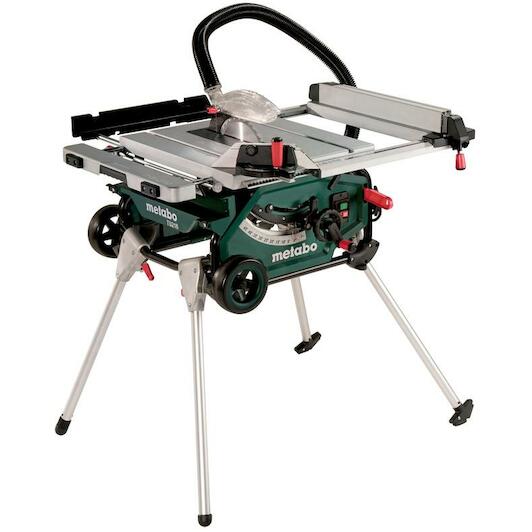

Product description
- Lightest table saw with trolley function, also suitable for one-handed transport
- Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand
- Very compact with folded stand for comfortable transport and space-saving storage
- Second working height for working near ground level
- Anti-twist tubular frame construction for highest demands on the building site and during installations
- Cables and all add-on components for transport can be stored on the casing
- Powerful motor with electronic overload protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents unintentional start-up after power supply interruption
- Soft start for long service life of motor and drive
- Precise parallel guide/rip fence with double clamping and quick fastening
- Precise saw blade inclination via gear guide
- Automatic resetting to 0 - 45 ° after undercuts
- Easy saw blade change with spindle lock
- Splitting wedge can be countersunk without tools for transport
- Precise, extendable table width extension for extra large working surfaces
- Dual port dust extraction for low dust emission
Key features according to our expert
-
Power: 1500 W
-
Constant speed control: No
-
Weight: 28,5 kg
-
Saw blade diameter: 216 mm
-
Max. cutting capacity (left): 165 mm
-
Max. cutting capacity (right): 425 mm
-
Adjustment (rip fence): Clamping lever on guide rail
-
Number of spanners (blade change): 1
-
With spindle lock: Yes
-
Adjustable riving knife: Yes
-
Variable speed: No
-
Included extensions: Table extension; Table widening
-
Engine brake: Yes
-
Max. no-load speed: 5000 rpm
-
Inrush current limiter: Yes
-
Max. cutting depth at 90°: 63 mm
-
Max. cutting depth at 45°: 43 mm
-
Max. cutting depth: 63 mm
-
With stand: Yes
-
Voltage: 230 V
-
Dust extraction position: Under the saw blade
-
Slide function: No
Specifications / All features
- Power
- 1500 W
- Constant speed control
- No
- Weight
- 28,5 kg
- Saw blade diameter
- 216 mm
- Max. cutting capacity (left)
- 165 mm
- Max. cutting capacity (right)
- 425 mm
- Adjustment (rip fence)
- Clamping lever on guide rail
- Number of spanners (blade change)
- 1
- With spindle lock
- Yes
- Adjustable riving knife
- Yes
- Variable speed
- No
- Included extensions
- Table extension; Table widening
- Engine brake
- Yes
- Max. no-load speed
- 5000 rpm
- Inrush current limiter
- Yes
- Max. cutting depth at 90°
- 63 mm
- Max. cutting depth at 45°
- 43 mm
- Max. cutting depth
- 63 mm
- With stand
- Yes
- Voltage
- 230 V
- Dust extraction position
- Under the saw blade
- Slide function
- No
- Dimensions
- 670 x 730 x 355 mm
- Max. bearing surface
- 780 x 930 mm
- Cutting height
- 0 - 63 mm
- Saw blade tilt range
- -1.5 - 46.5 °
- Zero load speed
- 5000 rpm
- Cable length
- 3 m
- Max. cutting height 90°/45°
- 63 / 43 mm
- Zero load speeds
- 5000 rpm
- Cutting speed
- 57 m/s
- Saw blade
- 216 x 30 mm
- Working height
- 850 / 355 mm
- Max. cutting width on parallel guide
- 425 mm
- Power consumption
- 1500 W
- Max. material width on angle guide
- 165 mm
