Scope of delivery
- Industrial holder for Weldon shank 19 mm
- Ejector pins 75 and 100 mm
- MK 2 drift key
- Safety strap
- Hexagon socket wrench SW 5
- Swarf protection guard
- Transport case

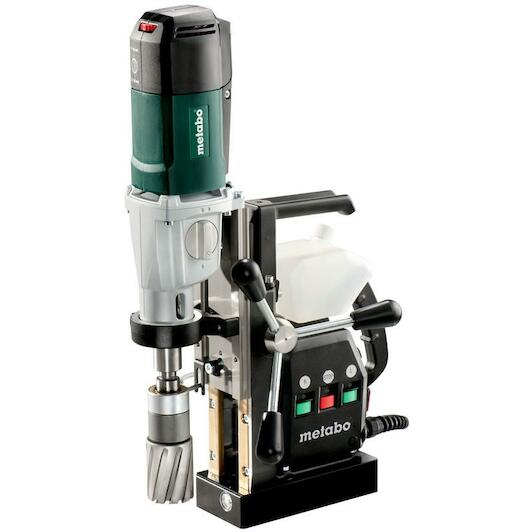

Product description
- Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Clockwise/anti-clockwise rotation with thread cutter
- Durable two-speed gearbox with oil bath lubrication for ideal speeds
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Overload protection: protects the motor from overheating
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5 m) with rubber shroud
Key features according to our expert
-
Input power: 1200 W
-
Tool holder type: Morse taper
-
Supplied in: Case
-
Type of system case: Not applicable
-
Tool holder size: MK2
Specifications / All features
- Input power
- 1200 W
- Tool holder type
- Morse taper
- Supplied in
- Case
- Type of system case
- Not applicable
- Tool holder size
- MK2
- Speed under load
- 250 / 450 rpm
- Speeds at nominal load
- 250 / 450 rpm
- Height skids lower position
- 457 mm
- Height of skids upper position
- 610 mm
- Max. magnetic force
- 12250 N
- Cable length
- 5 m
- Dimensions of the magnetic base
- 90 x 190 mm
- Torque
- 90 / 50 Nm
- Max. drilling ø with twist drill bit
- 20 mm
- Max drilling depth
- 50 mm
- Number of revolutions
- 250 / 450 rpm
- Max. drill diameter with core drill bit
- 50 mm
- Max stroke
- 160 mm
- Power consumption
- 1200 W
- Power output
- 620 W
- Thread cutting
- M 16
