Which machines are compatible with this diamond core bit?

It features an M14 thread designed for direct mounting on standard angle grinders.

Is water cooling required during drilling?

No, this core drill bit is engineered for dry drilling without separate cooling.

Which materials can you drill with this bit?

It is suitable for hard tiles, porcelain stoneware, and granite slabs.

What is the diameter of this diamond core bit?

The drilling diameter of this tile diamond core bit is 32 mm.

How do you remove the drilled core?

Side slots in the body allow you to easily push out and clear the drilled core.

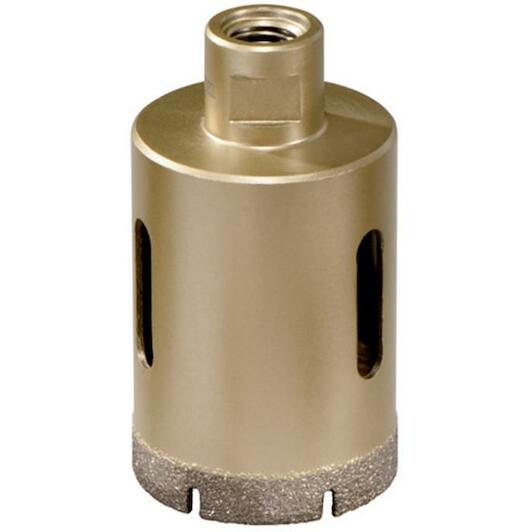

METABO 628308000 tile diamond drill crown Dry, 32 mm, M14

Name: METABO 628308000 tile diamond drill crown Dry, 32 mm, M14
Brand: METABO
SKU: 02310453
Price: 53.8 EUR
Availability: PreOrder

Supplier number: METABO 628308000 | EAN 4007430230638

53.80 tax incl.

€44.46 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Ordered before 20:00 - delivered as of 14/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Efficient dry drilling with Metabo tegel-diamantboorkroon Dry 32 mm M14 628308000

Practical benefits

Direct angle grinder mounting: The integrated M14 thread lets you attach the core bit securely to your angle grinder.
Fast and clean cutting: Vacuum brazed diamonds ensure you achieve a long service life and rapid drilling progress.
Easy drill core removal: Lateral side slots allow you to quickly and effortlessly eject the remaining tile core.

In a nutshell

The right choise for

With the Metabo Dry tile diamond core bit 32 mm M14, you can create clean cutouts in hard tiles, porcelain stoneware, and granite slabs with precision. Vacuum-brazed diamonds deliver a long service life and fast drilling progress through tough materials. The M14 thread mounts directly onto standard angle grinders, ensuring a secure fit and controlled performance. Designed specifically for dry drilling, it eliminates the need for separate water cooling and keeps your workspace tidy. When finished, you can quickly clear the remaining core through the convenient side slots to keep your installation work moving forward efficiently.

Product information FAQ

€53.80

tax incl.

Key features according to our expert

Diameter: 32 mm
Product Range: Metabo Dry

Product description

M14 Thread for use on angle grinders
Long service life and fast drilling progress thanks to vacuum hard soldered diamonds
Easy removal of the drill core thanks to lateral recesses
No extra cooling required. . For Ø 6-14 mm an additional paraffin emulsion is integrated for improved cooling. We commend to briefly cool the tip with water in case of drilling in quick succession!
We recommend using the thickness of the tile / fine earthenware / granite board as useful length. As a rule, max. 2 cm granite boards / work boards up to 5 cm can be drilled (applies to the diamond drill bits from Ø 20mm). Retract the drill bit often from the drilled hole so that it can cool down!
Important: Do not drill into the subsurface in case of laid material!
Maximum working speed: 80 m/s

All Features

Diameter: 32 mm
Product range: Metabo Dry

Brand METABO
02310453
EAN 4007430230638
Supplier number METABO 628308000

Frequently asked questions about this product

Answered by specialists

Which machines are compatible with this diamond core bit?: It features an M14 thread designed for direct mounting on standard angle grinders.
Is water cooling required during drilling?: No, this core drill bit is engineered for dry drilling without separate cooling.
Which materials can you drill with this bit?: It is suitable for hard tiles, porcelain stoneware, and granite slabs.
What is the diameter of this diamond core bit?: The drilling diameter of this tile diamond core bit is 32 mm.
How do you remove the drilled core?: Side slots in the body allow you to easily push out and clear the drilled core.
