What tool holder type does this magnetic core drill use?

The Makita HB500 is equipped with a 3/4" Weldon shank for fitting compatible core drill cutters securely.

What is the maximum core drilling capacity of the Makita HB500?

When using core drill bits in steel, you can drill holes up to a maximum diameter of 50 mm.

How strong is the magnetic clamping force?

The magnetic base delivers a clamping force of 9300 N, ensuring solid stability and safety while drilling steel.

What is the motor power of the HB500?

It features an 1150 W motor with a two-speed gearbox to deliver the right speed for your chosen drill diameter.

Does the Makita HB500 come with a carry case?

Yes, the magnetic core drill is supplied in a durable carry case for secure transport and storage.

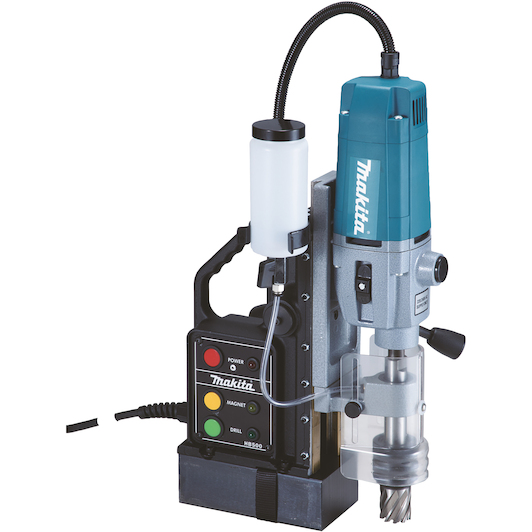

MAKITA HB500 core drill with magnetic base 1150W 50mm in case

Name: MAKITA HB500 core drill with magnetic base 1150W 50mm in case
Brand: MAKITA
SKU: 02393236
Price: 1341.28 EUR
Availability: PreOrder

Supplier number: MAKITA HB500 | EAN 0883816229816

Recommended Retail Price €1,632.74

1,341.28 tax incl.

€1,108.49 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on Makita after successful registration!

✆ Talk to a specialist

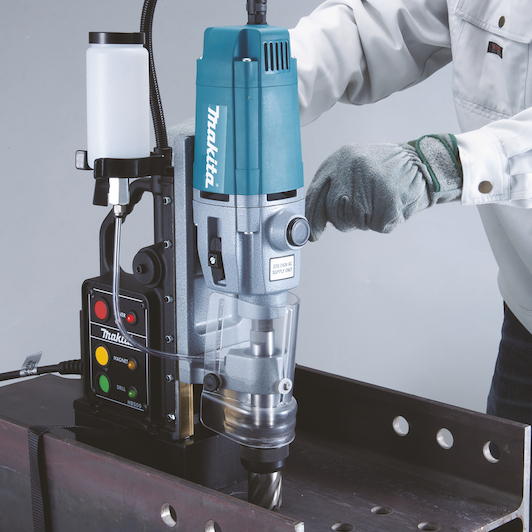

Accurate steel drilling with the Makita HB500

Practical benefits

Strong magnetic hold: Thanks to the 9300 N magnetic clamping force, you maintain complete stability while drilling into heavy structural steel.
High cutting capacity: The 1150 W motor delivers consistent power, enabling you to produce core holes up to 50 mm in diameter.
Dual mechanical speeds: You can easily adjust the rotational speed across two gears to match your specific cutter size and material.

In a nutshell

The right choise for

With the Makita HB500 magnetic core drill, you drill large holes into heavy structural steel with complete stability and accuracy. Its magnetic base delivers a powerful clamping force of 9300 N, keeping the machine firmly fixed to eliminate slipping and vibrations. The 1150 w motor and two-speed mechanical gearbox let you match the right drilling speed for core cutters up to 50 mm in diameter. Featuring a standard 3/4" Weldon tool holder, it ensures a secure fit for your accessories. Supplied in a sturdy carry case, this 18.5 kg drilling machine is well protected and easy to store between demanding metalworking jobs.

Product information FAQ

€1,341.28

tax incl.

Key features according to our expert

Input power: 1150 W
Tool holder type: Weldon
Max. core drilling diameter: 50 mm
Clamping force magnetic base: 9300 N
Supplied in: Case
Type of system case: Not applicable
Weight: 18,5 kg
Tool holder size: 3/4"

Product description

Magnetic core drill with Weldon take-up for intensive use.

Magnetic base, drill stand and drill bit in one package ensure easy adjustment. Equipped with an oil feed system for smooth drilling.

Double insulated.
Easy transport and installation as all parts are combined in one machine
Powerful electromagnetic clamp for precise and safe drilling work
Equipped with oil feed system for smooth drilling

All Features

Input power: 1150 W
Tool holder type: Weldon
Max. core drilling diameter: 50 mm
Clamping force magnetic base: 9300 N
Supplied in: Case
Type of system case: Not applicable
Weight: 18,5 kg
Tool holder size: 3/4"
Dimensions (l x w x h): 290 x 218 x 450 mm
Drill head capacity: - 16 mm
Max traction force: 9300 N
Max. drilling diameter in steel: 50 mm
Maximum power output: 1150 W
Rated power: 1150 W
Weight without cable: 18.5 kg

Brand MAKITA
02393236
EAN 0883816229816
Supplier number MAKITA HB500
Warranty Up to 5 years warranty on Makita after successful registration!

Frequently asked questions about this product

Answered by specialists

What tool holder type does this magnetic core drill use?: The Makita HB500 is equipped with a 3/4" Weldon shank for fitting compatible core drill cutters securely.
What is the maximum core drilling capacity of the Makita HB500?: When using core drill bits in steel, you can drill holes up to a maximum diameter of 50 mm.
How strong is the magnetic clamping force?: The magnetic base delivers a clamping force of 9300 N, ensuring solid stability and safety while drilling steel.
What is the motor power of the HB500?: It features an 1150 W motor with a two-speed gearbox to deliver the right speed for your chosen drill diameter.
Does the Makita HB500 come with a carry case?: Yes, the magnetic core drill is supplied in a durable carry case for secure transport and storage.
