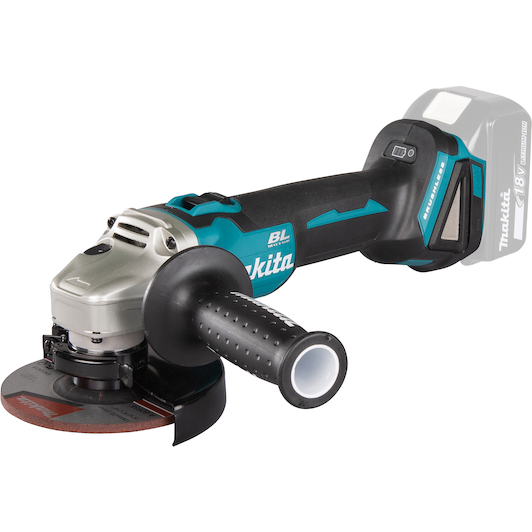

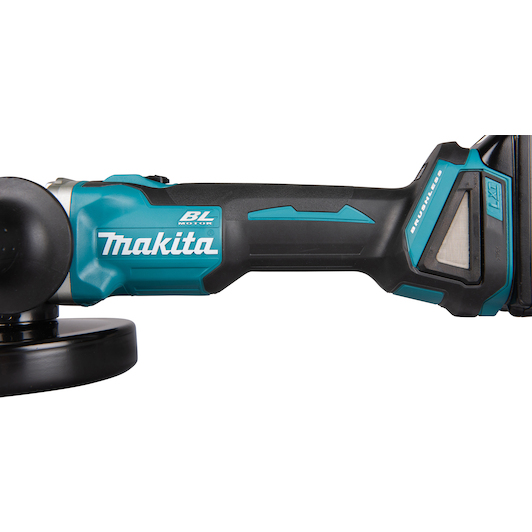

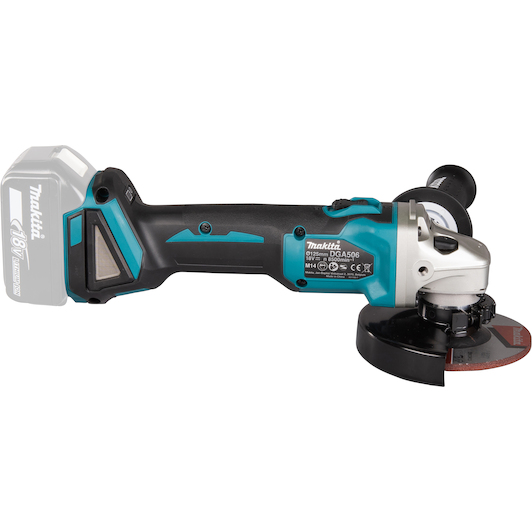

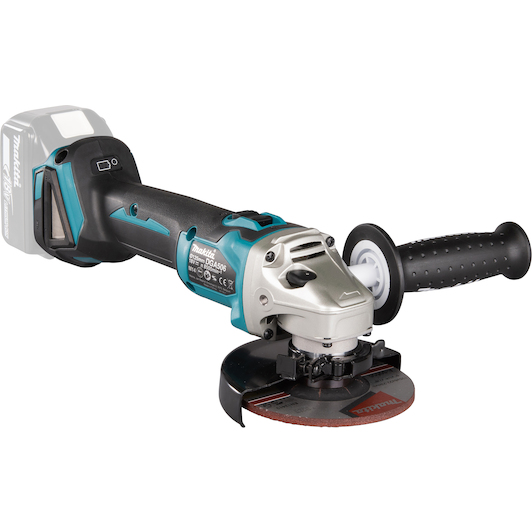

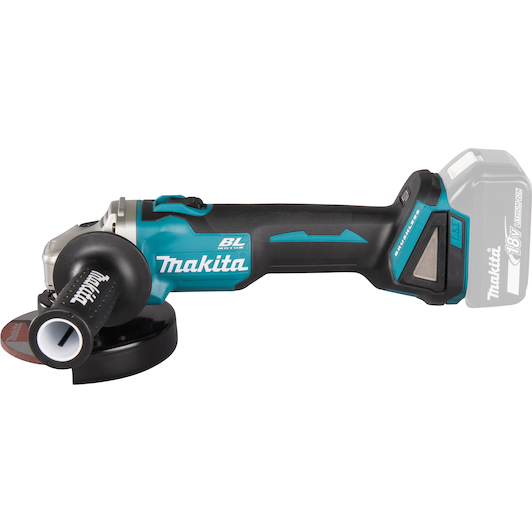

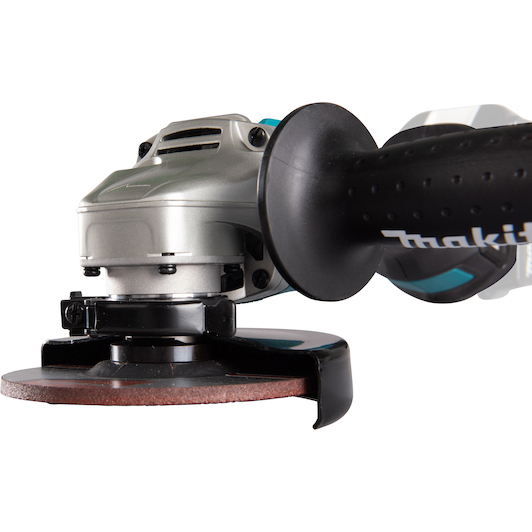

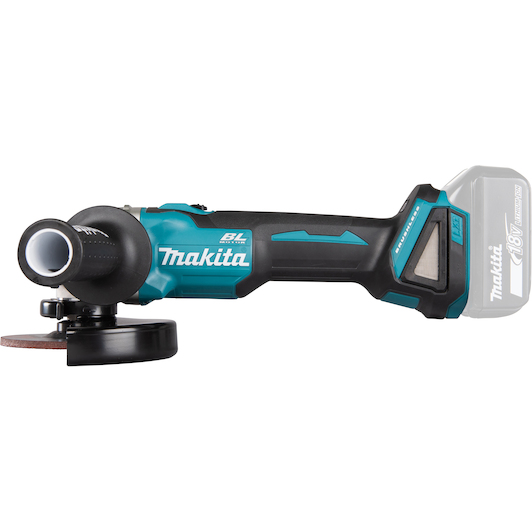

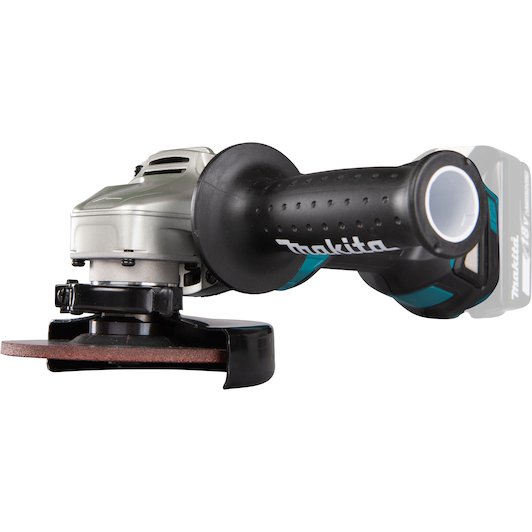

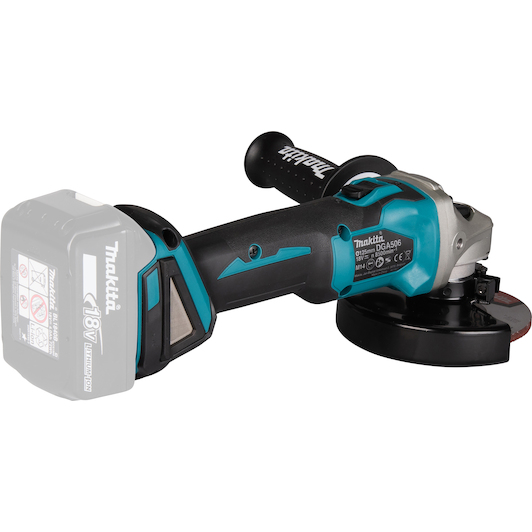

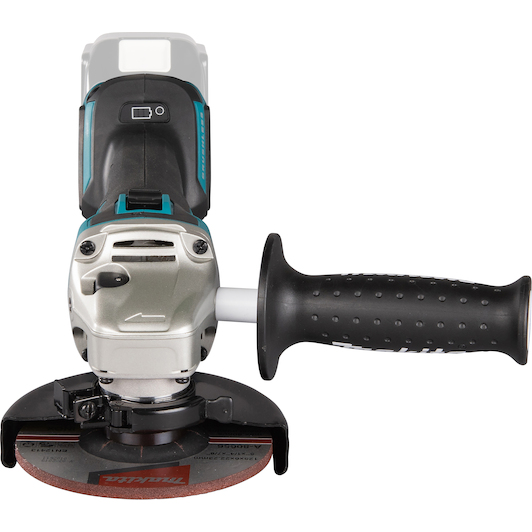

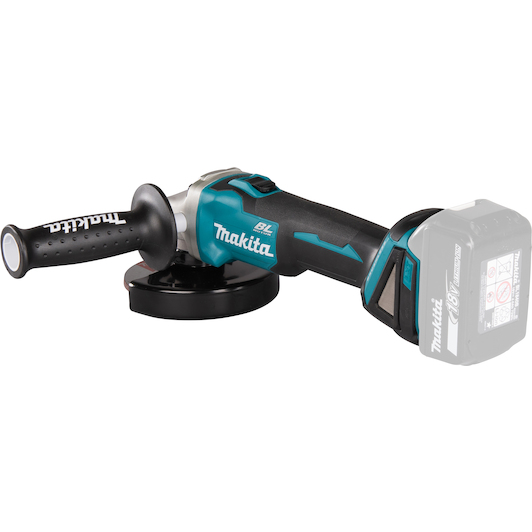

MAKITA DGA506Z 18V LXT cordless angle grinder 125mm with slide switch in cardboard box (without battery and charger)

Supplier number: MAKITA DGA506Z | EAN 0088381814287
Recommended Retail Price €212.20
155.33 tax incl.
€128.37 excl. VAT (incl. all environmental contributions)
On stock - immediately available

Efficient cutting with advanced control

Practical benefits
  • Brushless Makita motor drive: Delivering speeds up to 8500 rpm, the brushless motor maintains high power and sustained torque under demanding grinding applications.
  • Rapid stopping electric brake: An electronic brake brings the 125 mm disc to a quick stop after switch release, keeping you protected between cuts.
  • Active kickback and restart protection: Sensors shut down power if the cutting wheel binds, while anti-restart circuitry prevents unintended starts when inserting fresh batteries.

In a nutshell

The right choise for

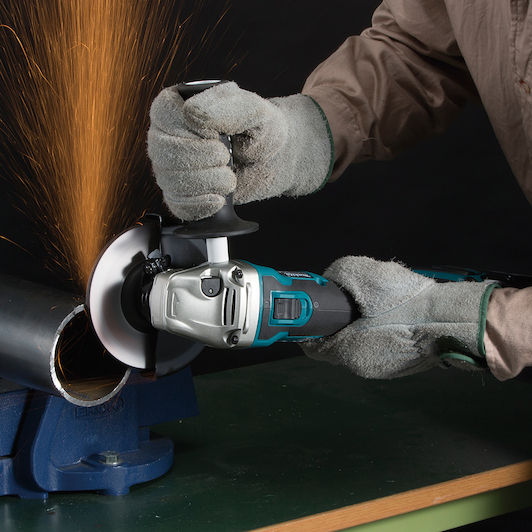

The Makita DGA506Z cordless angle grinder delivers reliable power for cutting steel, profiling rebar, and smoothing masonry where mains power is unavailable. Driven by Makita 18V lxt batteries, its brushless motor sustains speeds up to 8500 rpm for demanding jobsite tasks.

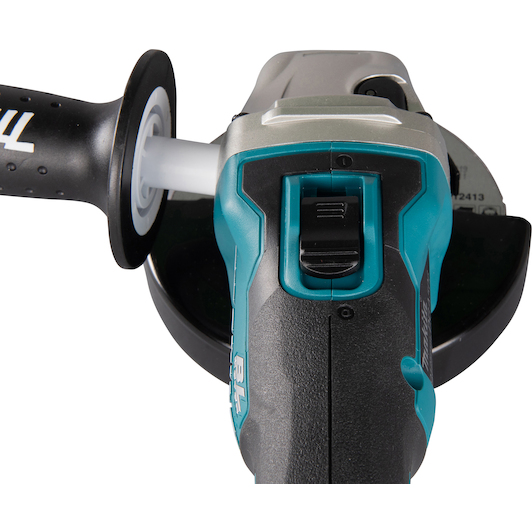

A lock-on slide switch enables continuous grinding without hand strain during extended jobs. An electric brake halts the 125 mm grinding wheel quickly when switched off, while built-in kickback sensors and anti-restart circuitry protect against sudden binding or accidental starts after battery changes.

Weighing only 1.92 kg, this bare tool gives you agile handling in tight spots. It arrives in a cardboard box complete with a side handle, protective guard, inner flange, M14 lock nut, and pin wrench.



€155.33
In stock - tax incl.

Product information

Key features according to our expert

  • Diameter (disc): 125 mm
  • Restart protection: Yes
  • Battery voltage: 18 V
  • UN number: Not applicable
  • Weight: 1,92 kg
  • Type of system case: Not applicable
  • Supplied in: Cardboard box
  • Dead man' s switch: No
  • Tool holder type: External thread
  • Tool holder size: M14
  • Number of batteries supplied: 0
  • Product Range: Makita LXT 18V

Contents of the delivery

  • 1 x 123145-8 Tool-free disc guard, 125 mm

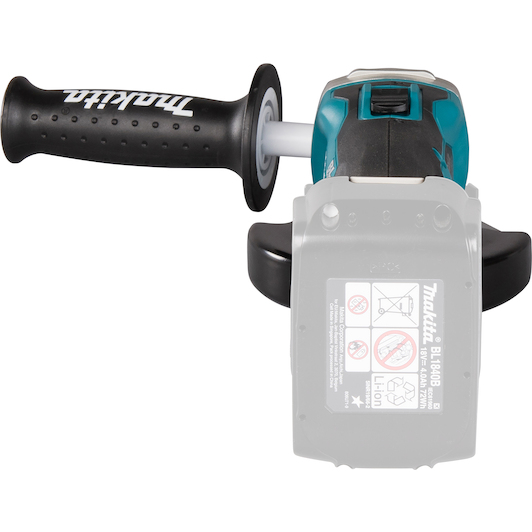

  • 1 x 158237-4 Handle 36, complete
  • 1 x 199710-5 Disc guard, 125 mm
  • 1 x 224447-6 Inner flange
  • 1 x 224554-5 Lock nut M14
  • 1 x 782423-1 Cam spanner 35

Product description

Large brushless tool with brake for grinding and deburring

A compact, brushless angle grinder with a 125 mm disc for demanding professional use. Constant speed electronics and a fast-acting disc brake for added safety. The tool, battery and charger are not included.

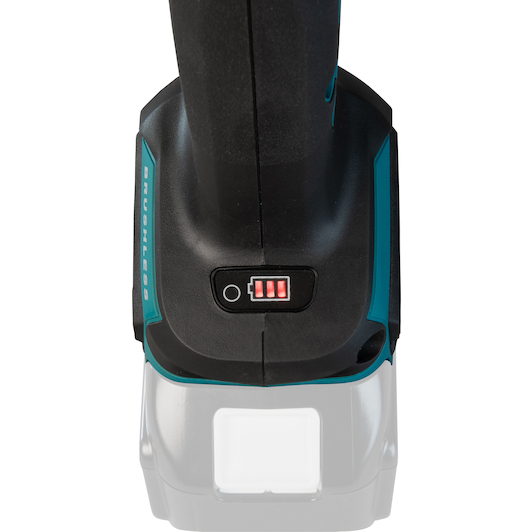

  • The 3-stage LED indicator displays the battery's charge level, overheating and overload status
  • ADT (Automatic Torque Drive Technology) adjusts speed and torque during use for optimum performance
  • The anti-restart function prevents the motor from restarting unintentionally after the power supply is interrupted.
  • Electric brake for maximum productivity and greater user safety
  • Electronic overload protection safeguards both the user and the machine
  • The battery protection circuit protects against overloading, over-discharge and overheating
  • Maintenance-free brushless motor with a long service life
  • Slim housing design for a secure grip.
  • Soft-start function for smooth start-up

All Features

Diameter (disc)
125 mm
Restart protection
Yes
Battery voltage
18 V
Un number
Not applicable
Weight
1,92 kg
Type of system case
Not applicable
Supplied in
Cardboard box
Dead man' s switch
No
Tool holder type
External thread
Tool holder size
M14
Number of batteries supplied
0
Vibration uncertainty (k factor), plane grinding
1.5 m/s²
Electronic brake
1
Brushless motor
1
Max. cutting depth
29 mm
Product range
Makita LXT 18V
Vibration level, surface grinding
6.5 m/s²
Diameter of the disc
125 mm
Weight with battery
2.3 - 2.6 kg
Lxt voltage
1
Noise uncertainty (k-factor)
3 dB(A)
Shaft hole
22.23 mm
Anti restart function (nvr switch)
1
Nominal battery voltage
18 V
Dimensions (l x w x h)
362 x 140 x 151 mm

Accessories

View more accessories (10)

Frequently asked questions about this product

Answered by specialists
Are a battery and charger included with this angle grinder?
No, this is a bare tool (z version) in a cardboard box. It works with your existing Makita 18V lxt batteries.
What disc size fits the Makita DGA506Z?
This grinder uses standard 125 mm diameter discs with an M14 spindle thread.
What type of power switch does this model use?
It features a lock-on slide switch for continuous use rather than a dead man paddle switch.
Does the grinder have restart protection?
Yes, anti-restart protection prevents accidental startup if you insert a battery while the switch remains locked on.
Does the DGA506Z feature a brake?
Yes, an electric brake brings the grinding wheel to a rapid halt as soon as you switch off the tool.
