Concealed furniture assembly with Lamello
- Detachable and reusable joints: You easily lock and release connections repeatedly using the built-in rotating cam lever.

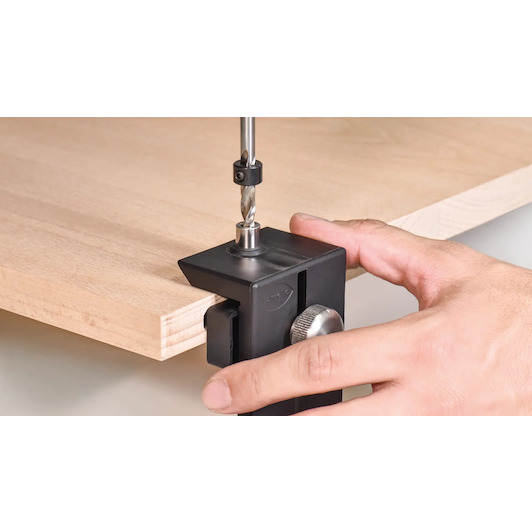

- Minimal and discreet opening: You achieve pristine furniture aesthetics because only an unobtrusive 6 mm access hole remains visible.
- Versatile angle joinery: You create robust miter joints from 22.5° to 180° without needing glue or clamps.

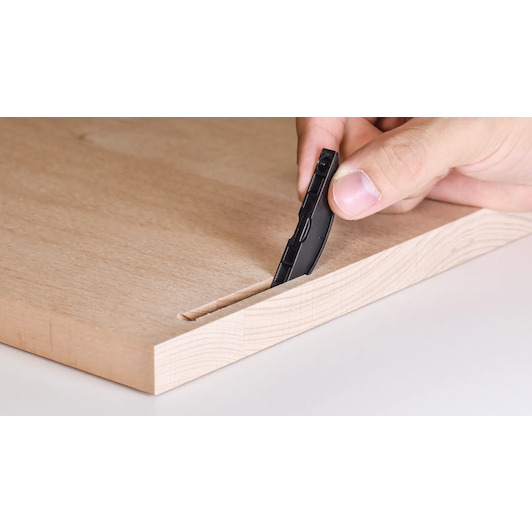

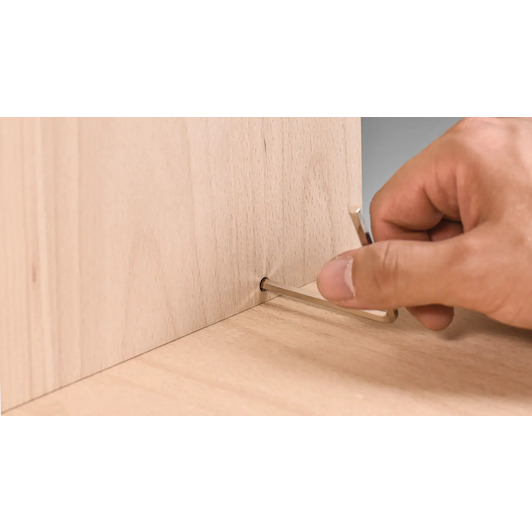

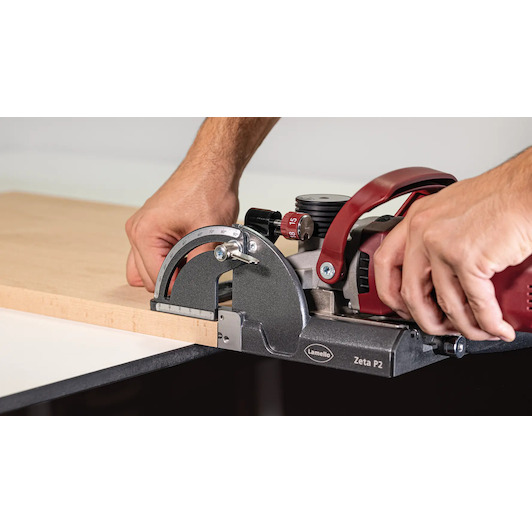

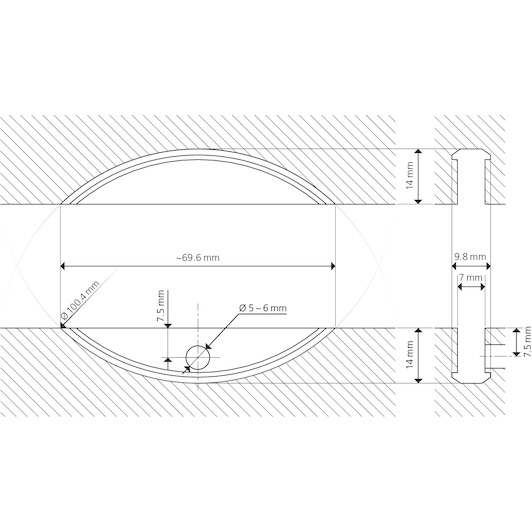

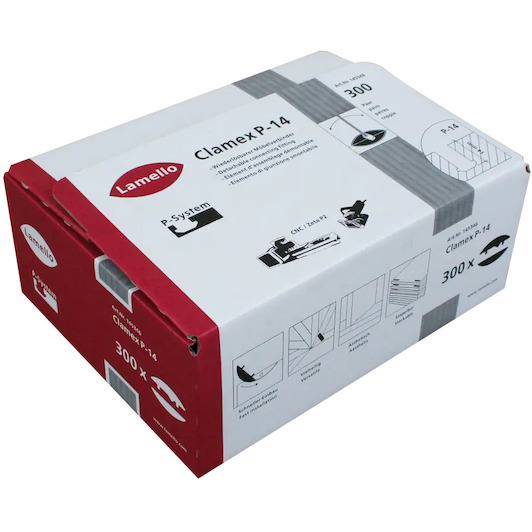

With Lamello Clamex P-14 detachable connectors, you create strong, form-locking furniture joints that can be repeatedly assembled and disassembled with ease. You slide the connector halves directly into the profiled groove by hand without glue or screws, using grooves cut with a Lamello Zeta P2 or a cnc machining centre. An internal lever locks and unlocks through a minimal 6 mm access hole with a 4 mm hex key, delivering a clean, virtually invisible finish with no visible screws or caps. Suitable for butt joints from 15 mm panel thickness and miter joints from 22.5° to 180° in panels from 18 mm, this box of 300 pairs streamlines flat-pack transport and professional interior fitting.
Product description
- Removable furniture connector, installed in seconds
- Aesthetic appearance with the barely visible 6 mm drill hole
- All-rounder for all corner and mitre joints from 22.5° to 180°
- High clamping force for perfectly closed joints

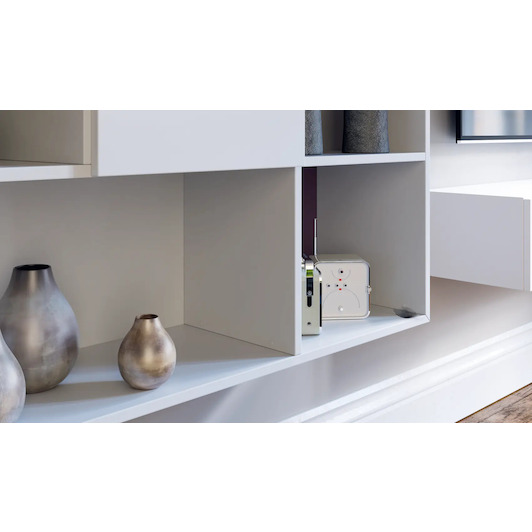

- Ideal for open shelves, cupboards or wardrobes under sloping ceilings

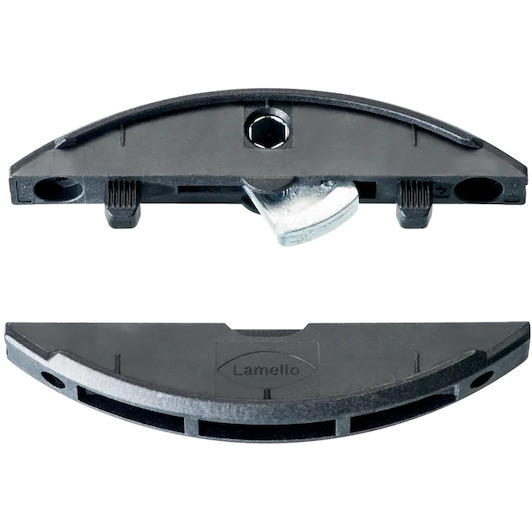

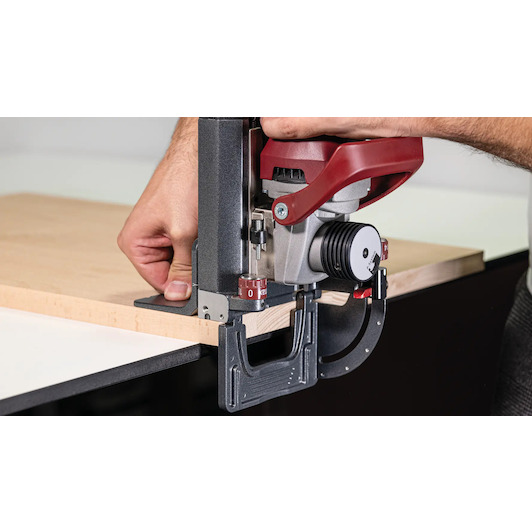

Clamex P-14 is a demountable furniture connector and is anchored into the workpiece within seconds with the interlocking P-System grooves. With its minimalist operating opening of 6 mm, Clamex P-14 is powerfully joined and released via a lever, similar to an eccentric joiner. Clamex P-14 is highly aesthetic thanks to its small operating aperture of only 6 mm diameter and allows almost completely hidden connections. Clamex P-14 is designed for butt joints and as a mitre connector. It is also distinguished by a very time-saving production process. The P-System grooves are precisely manufactured either with the groove milling machine Zeta P2 or with a CNC machine. The connectors are then effortlessly pushed into the grooves, the workpieces seamlessly joined and powerfully connected by lightly pressing the lever. So there is no need to wait and an assembled workpiece can immediately be further processed or prepared for shipment. With Clamex P-14, wood joints can be joined at almost any angle and mitre, as with the tried-and-tested Lamello system. Unlike an eccentric, obtuse, pointed or flat corners can also be assembled and powerfully joined. Therefore, the joiner is also often used as a gluing aid for difficult to clamp workpieces.
Applications
- Removable connecting fittings for sheet materials in furniture construction
- Gluing aid for mitred joints or corners that are difficult to stretch
- In kitchen construction in tall units, frame constructions or open shelves
- In interior construction for built-in cupboards, wardrobes under stairs or sloping roofs

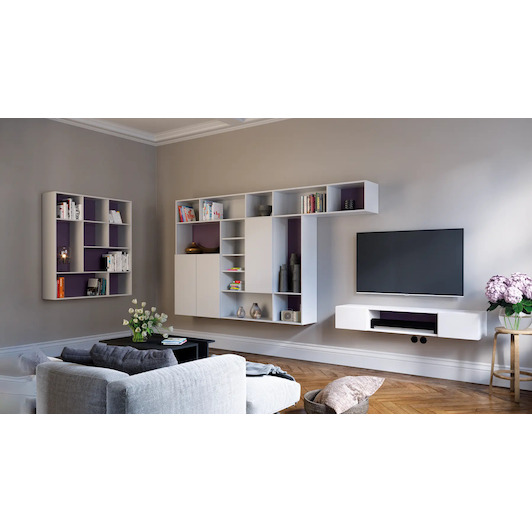

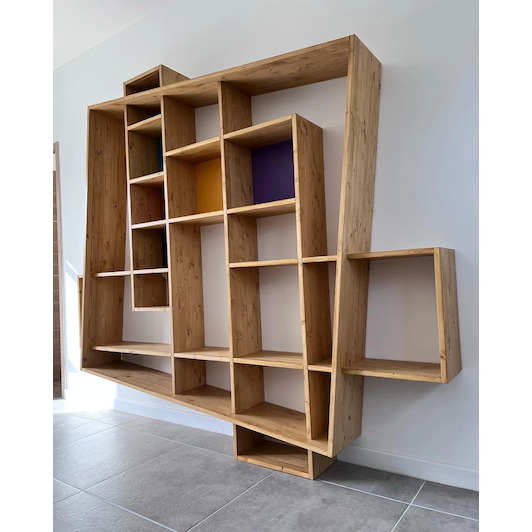

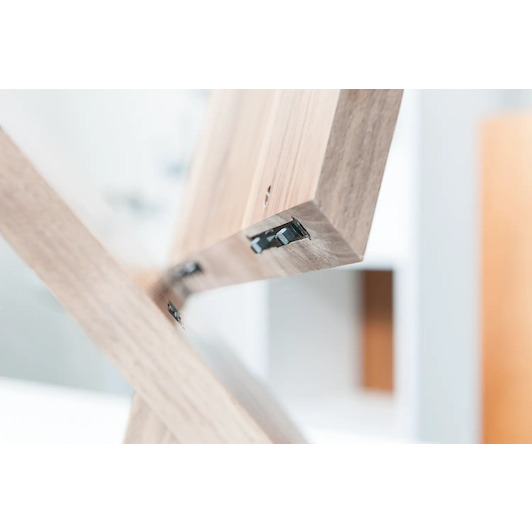

- In furniture construction for high-quality furniture with mitred joints or unusual angles, wine racks or bookcases
- Powerful alternative to connection fittings standards
- Rapid construction of prototypes for the start of a new furniture series
- Blunt joints from a material thickness of 15 mm
- Mitre joints from a material thickness of 18 mm
Features
- Dismountable: Always detachable with the rotating lever

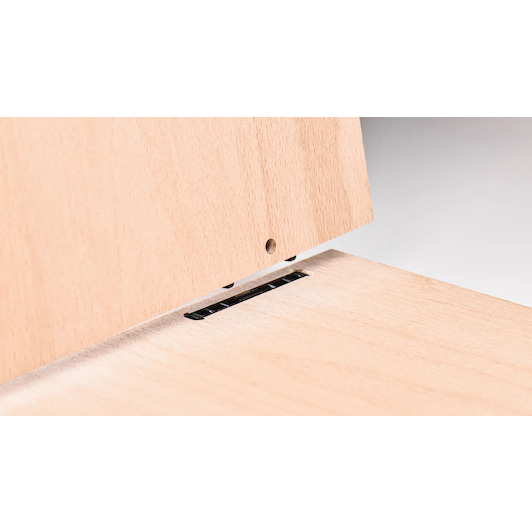

- Aesthetic: the small, barely visible opening (Ø = 6 mm) serves to open and close the connector

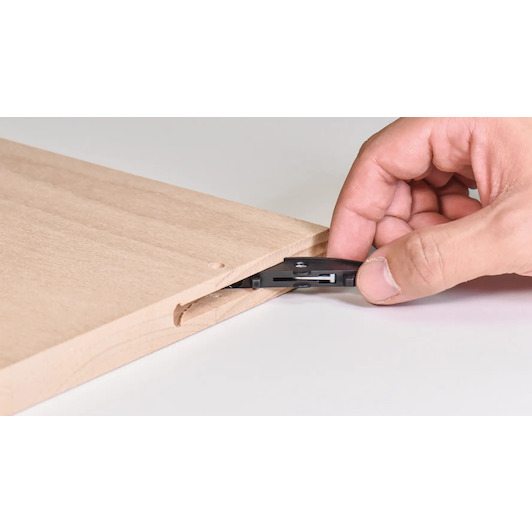

- Quick assembly: Sliding in instead of screwing or gluing, in the blink of an eye and without waiting times
- Stackable: Workpieces with pre-assembled fittings remain stackable for easy storage or transportation
- Versatile: the small depth of the connector allows mitres of 22.5 to 180°, such as for surface, corner and intermediate wall joints
