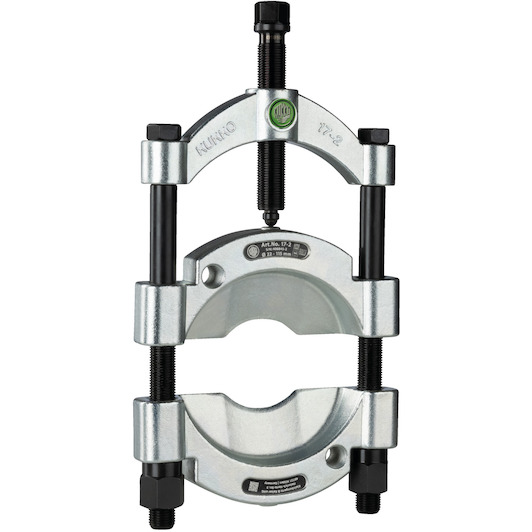

KUKKO 17-2 knife puller with quick-release spindle for use with 18-2 auxiliary puller - 22 to 115 mm

Scope of delivery

• 017235:Screw with nut for fertiliser tractors 17-B, 17-2
• 17-2-06:Spindle for agricultural tractors with quick-release spindle 17-2, 17-B
• 17-2-T:Bridge for agricultural tractors with quick-release pressure spindle 17-2, 17-B
• 616180:Double-sided spindle tip for mechanical pressure spindles M16, M16x1.5 and M18x1.5
• 618105:Spindle Ø 18 mm for spindle thread M 18x1.5, 105 mm length, 4.5 mm Screw thread

Product description

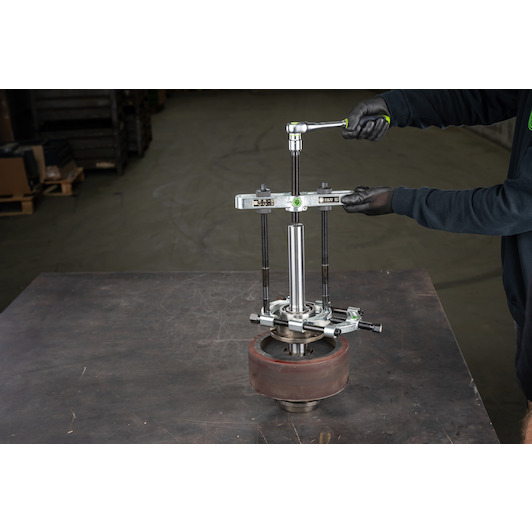

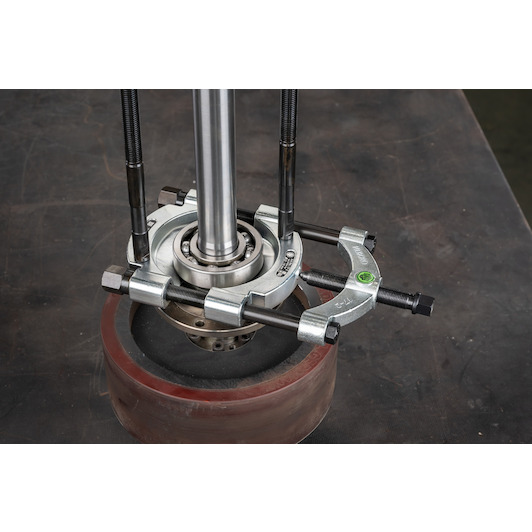

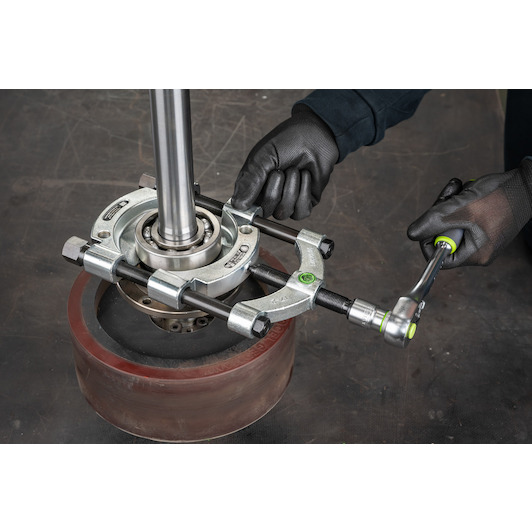

The fattening pullers of series 17 are used together with the auxiliary pullers of series 18 for pulling ball bearings, roller bearings, inner rings and other flat adjoining parts in Craft, Industry and workshop, when sufficient space is not available for towing hooks. The separating pulling process is capable of gently separating these Parts before they can be pulled externally. Compared to series 15, series 17 is particularly handy because the separation jaws are tensioned quickly and centrally via a pressure spindle.

Application

For pulling ball bearings, roller bearings, inner rings and other flush parts in craft, industry and workshop.
