Precise separation with the Kukko 17-0 separator
- Quick and centered clamping: The quick-clamping pressure spindle allows you to tighten the separating blades rapidly and evenly behind components.
- Access in tight spaces: Sharp wedge-shaped blades slide smoothly beneath flush-mounted bearings where standard pulling jaws cannot fit.
- Versatile diameter range: You can easily separate and remove inner rings and roller bearings ranging from 8 to 60 mm.

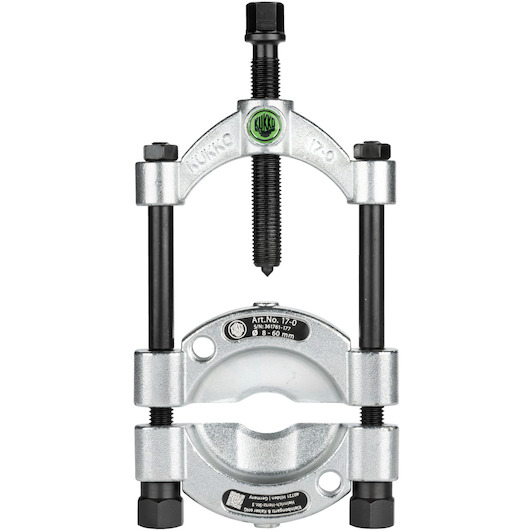

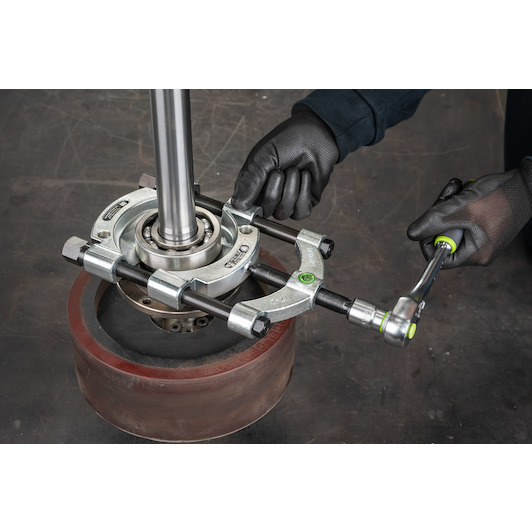

With the Kukko 17-0 bearing separator, you easily remove tightly seated, flush-mounted components where standard puller hooks cannot fit. Sharp, wedge-shaped blades slide cleanly behind bearings, gears, and inner rings without damaging shafts or surrounding housings. The integrated quick-clamping pressure spindle allows you to clamp the separator jaws quickly and concentrically around workpieces with a diameter from 8 to 60 mm. Designed for use in combination with the Kukko 18-0 pulling device, this tool delivers dependable control and speed during demanding maintenance and overhaul tasks.
Scope of delivery
- 017140:Screw with nut for fertiliser tractors 17-K, 17-0
- 17-0-06:Push spindle for combine tractors with quick-release spindle 17-0
- 17-0-T:Bridge for agricultural tractors with quick-release pressure spindle 17-K, 17-0, 17-1
Product description

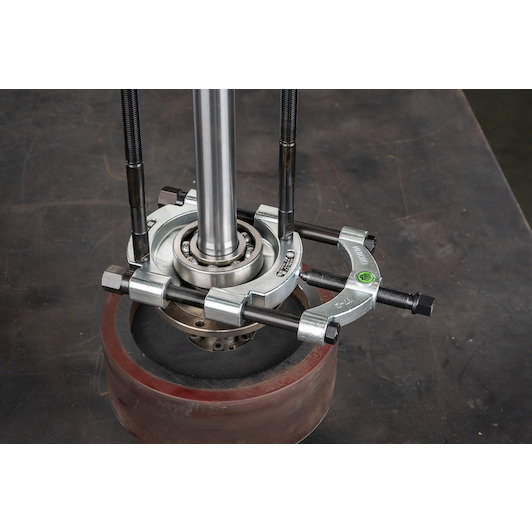

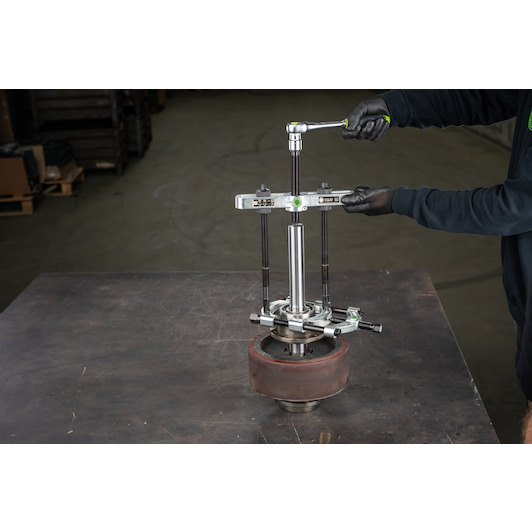

The fattening pullers of series 17 are used together with the auxiliary pullers of series 18 for pulling ball bearings, roller bearings, inner rings and other flat adjoining parts in Craft, Industry and workshop, when sufficient space is not available for towing hooks. The separating pulling process is capable of gently separating these Parts before they can be pulled externally. Compared to series 15, series 17 is particularly handy because the separation jaws are tensioned quickly and centrally via a pressure spindle.
Application
For pulling ball bearings, roller bearings, inner rings and other flush parts in craft, industry and workshop.
