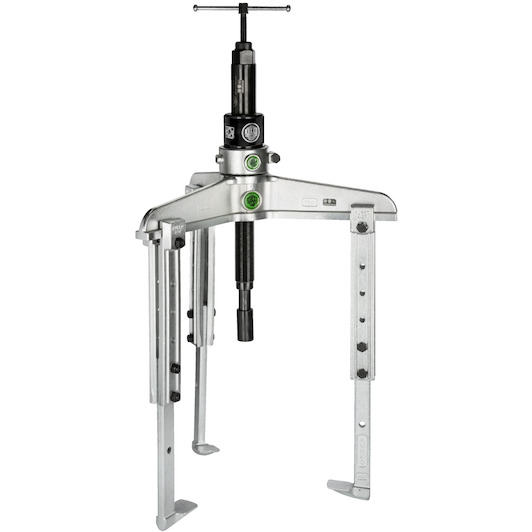

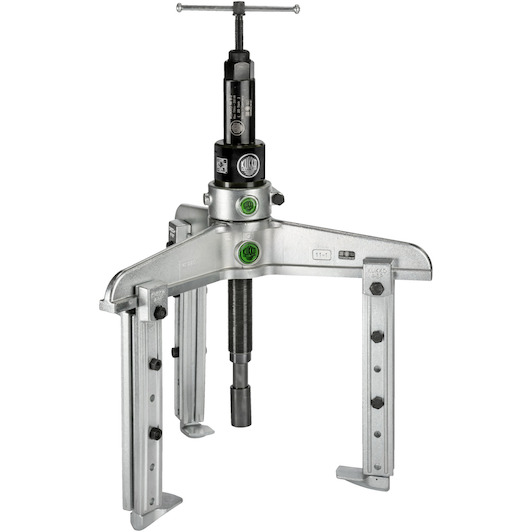

KUKKO 11-2-BV tractor hydraulic three-arm adjustable 650mm

Scope of delivery

• 11-1-20:Insert for high-performance tractors
• 11-650:3-arm bridge 30-5, 11-2-A, 11-2-A3, 11-2-A4, 11-2-A5, 11-2-AV, 11-2-B, 11-2-BV, 11-3-B

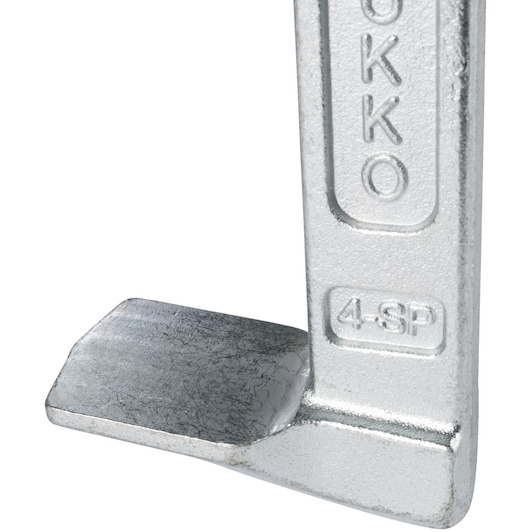

• 4-SP-S:Height-adjustable drawbar hooks (set, clamping depth 500 mm)
• 8-2-K:Long Grease hydraulic spindle, up to 20 t pulling force (thread size of spindle G 1 1/8")

Product description

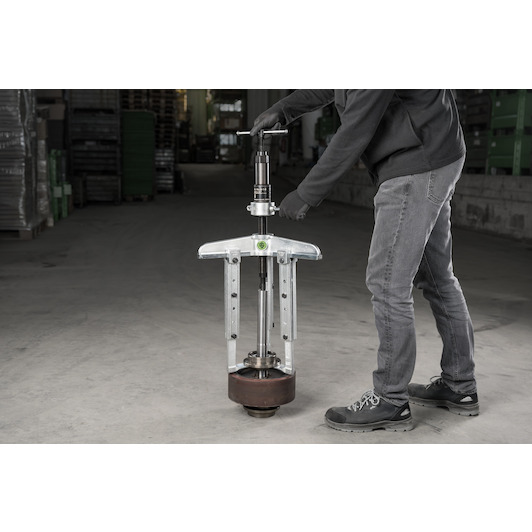

The extra powerful, 3-arm universal puller with adjustable clamping depth and Vethydraulic spindle is used for pulling heavy, particularly stuck bearings, gears and discs in all common sizes for craft, workshop and industry. The Vethydraulic spindle achieves an average pulling force of up to 20 t. This allows any part that is on a shaft and freely accessible from outside to be loosened. Thanks to the individually adjustable clamping range and clamping depth, the solid construction of the puller adapts to every pulling situation and guarantees powerful, damage-free Dismantling both when pulling out and pulling in. The 3-arm design guarantees even load distribution and thus a particularly secure hold on the part to be pulled off.

Application

For pulling heavy, particularly firmly seated bearings, gears and discs in all common sizes for trade, workshop and industry.
