Product description

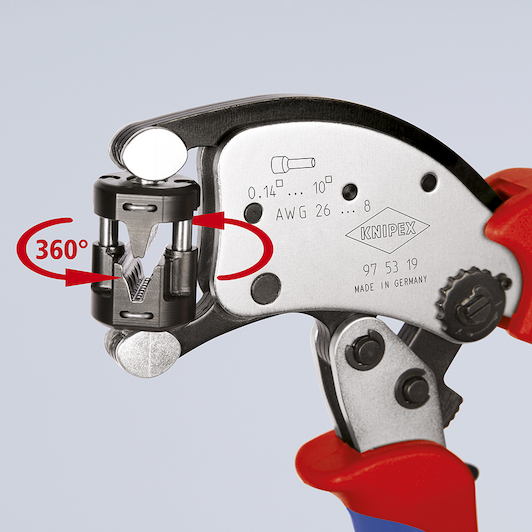

- Crimping head rotatable by 360°, with 8 insertion positions
- Crimping of end sleeves possible from virtually any working position
- Trapezförmiges Crimpprofil, hoher Kapazitätsbereich von 0,14 bis 10 mm²
- Crimping pliers adjust automatically to the various cross cuts
- Both sides have access to the crimp opening, presses up to 18 mm in length at one working step, cuts over long lengths can be trimmed
- Crimping of twin end sleeves up to 2 x 6 mm² possible
- Constant high crimp quality thanks to forced closure (cannot be locked)
- Light and handy tool, manual force strengthened by knee lever mechanism
Key features according to our expert
-
Min. wire cross-section: 0,14 mm²
-
Pliers type: Ferrule crimping pliers
-
Number of crimp profiles: 1
-
Max. wire section: 10 mm²
Specifications / All features
-
Brand:
KNIPEX
-
08093511
-
EAN:
4003773088097
-
Supplier number:
KNIPEX 97 53 19
- Min. wire cross-section
- 0,14 mm²
- Pliers type
- Ferrule crimping pliers
- Number of crimp profiles
- 1
- Max. wire section
- 10 mm²
- Weight
- 486 g
- Handle
- with multi-component handle
- Reach compliance
- contains SVHC
- Rohs compliance
- irrelevant
- Cup
- chromed
- Dimensions
- 200 x 80 x 26 mm
- Tang
- chromed
