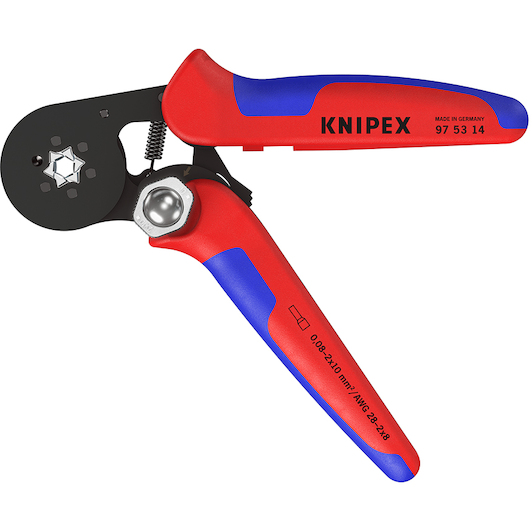

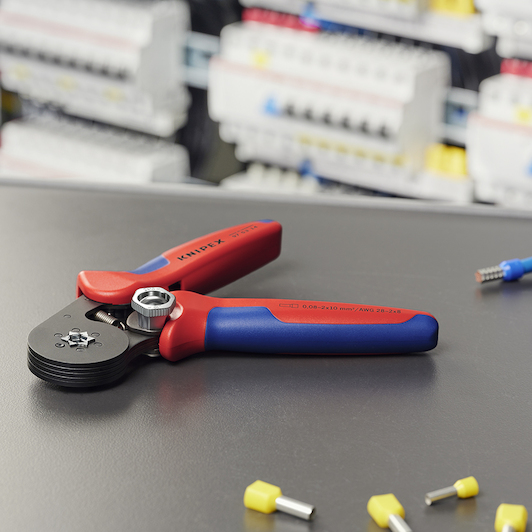

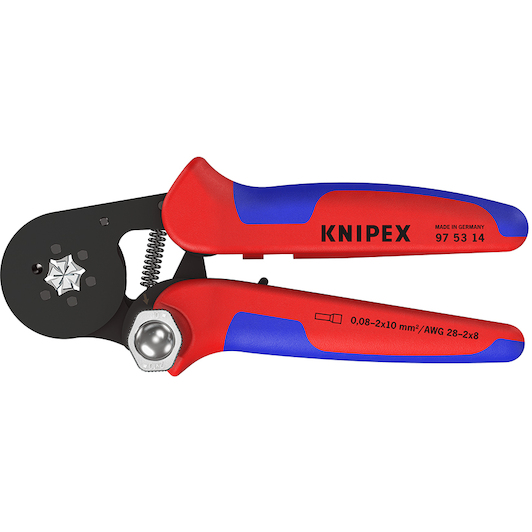

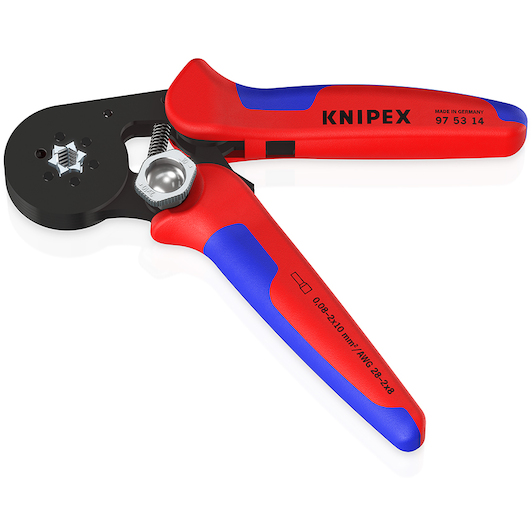

KNIPEX 97 53 14 self-adjusting crimping pliers for end sleeves with side entry with multi-component handles browned 180 mm

KNIPEX
Supplier number: KNIPEX 97 53 14 | EAN 4003773041474
7 review(s)
Recommended Retail Price €238.19
154.80 tax incl.
€127.93 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Ordered before 20:00 - delivered as of 14/11/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist

Reliable crimping by Knipex

Practical benefits

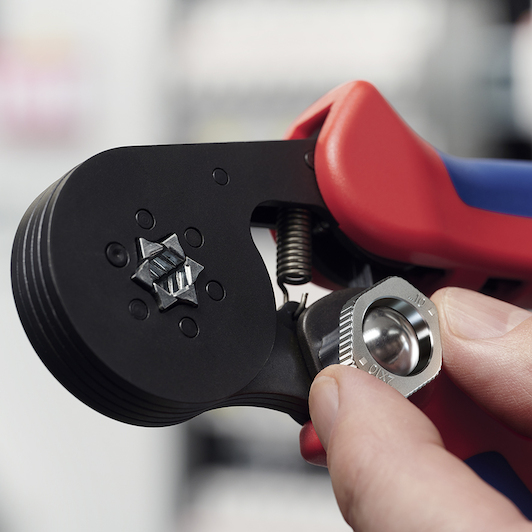

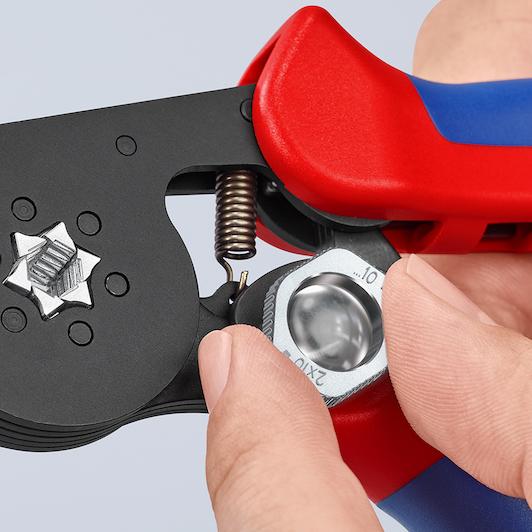

  • Automatic ferrule size adjustment: You crimp wire ferrules from 0.08 to 16 mm² without manual adjustments or incorrect crimp profiles.

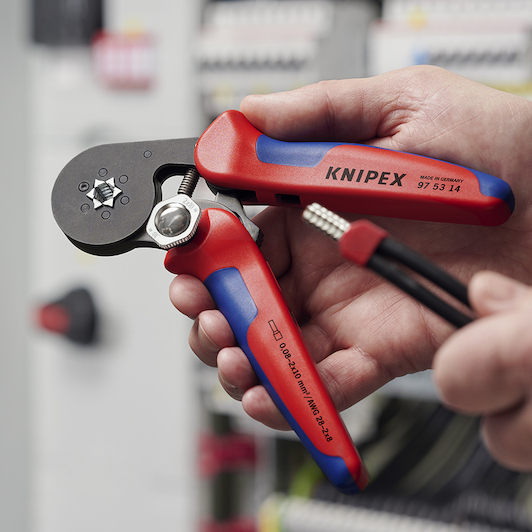

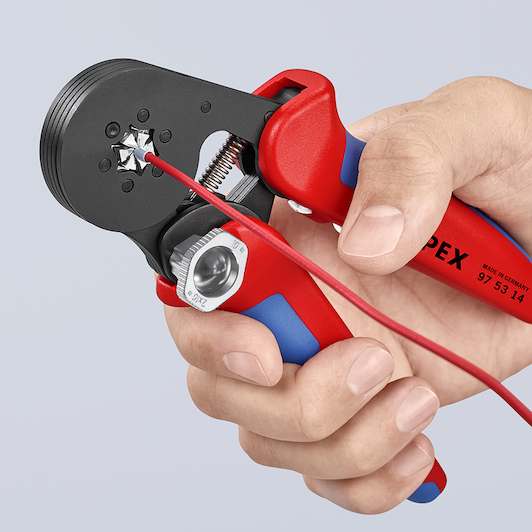

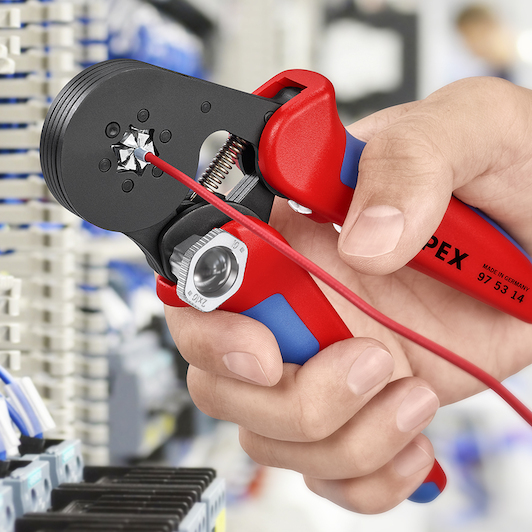

  • Ergonomic lateral access design: The side-loading access and toggle lever mechanism allow you to work with reduced hand fatigue in tight spaces.

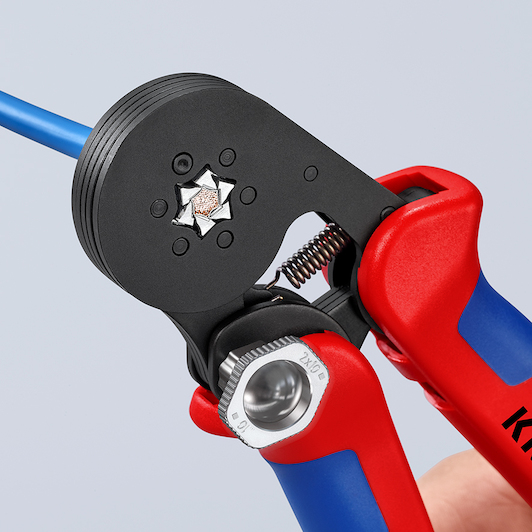

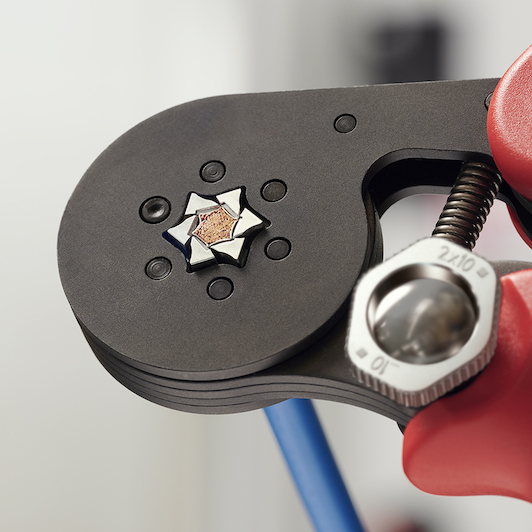

  • Consistent hexagonal compression: An unlockable integral lock ensures factory-calibrated crimping pressure for secure and compact electrical connections every time.

In a nutshell

The right choise for

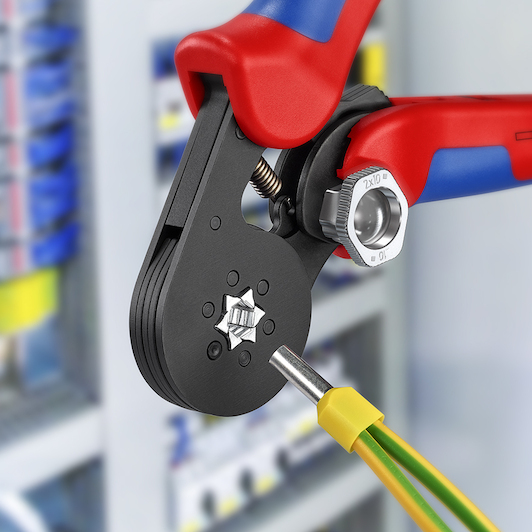

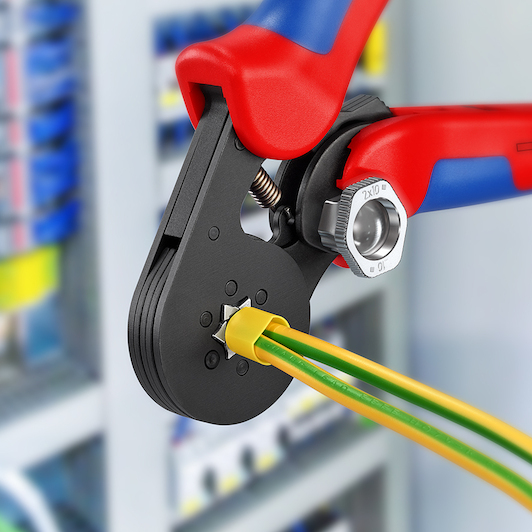

With the Knipex 97 53 14 self-adjusting crimping pliers, you can crimp wire ferrules from 0.08 to 16 mm² and twin ferrules up to 2 x 10 mm² quickly and accurately. The automatic adjustment mechanism and lateral access eliminate the need to switch dies manually, saving valuable time when wiring control cabinets and terminal blocks. Its integral ratchet lock ensures factory-calibrated hexagonal crimping for compact and secure electrical connections every time. Combined with an efficient toggle lever transmission and ergonomic multi-component grips, this tool reduces hand fatigue during repetitive installation work.



Product information FAQ Reviews
€154.80
In stock - tax incl.

Product information

Key features according to our expert

  • Min. conductor cross-sectional area: 0,08 mm²
  • Pliers type: Ferrule crimping pliers
  • Number of crimping profiles: 1
  • Surface treatment (pliers): Blackened
  • Overall length: 180 mm
  • Hydraulical: No
  • Weight: 445 g
  • Max. conductor cross-sectional area: 6 mm²

Product description

  • For end sleeves up to 16 mm²
  • Automatic adjustment to the required end sleeve size for precise and fast crimping
  • Standard-compliant crimping of end sleeves according to DIN 46228 parts 1 + 4
  • UL certification in combination with Knipex end sleeves 97 99 330 - 399
  • Consistently high crimp quality thanks to forced closure (unlockable)
  • Shrink pressure is set accurately at the factory (calibrated)
  • Increased power transmission thanks to knee lever design for effortless operation
  • Small footprint
  • Ergonomic, handy design, smooth running and low weight
  • Special chrome vanadium electric steel, oil-hardened
  • Mit Sechskant-Pressung

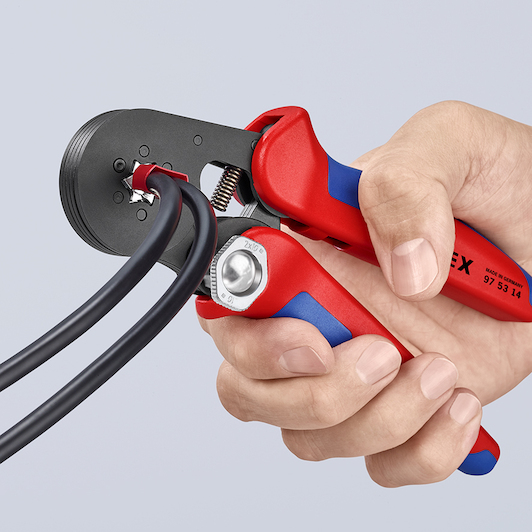

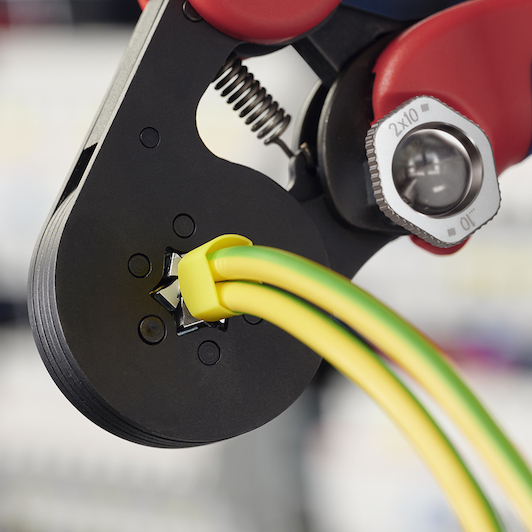

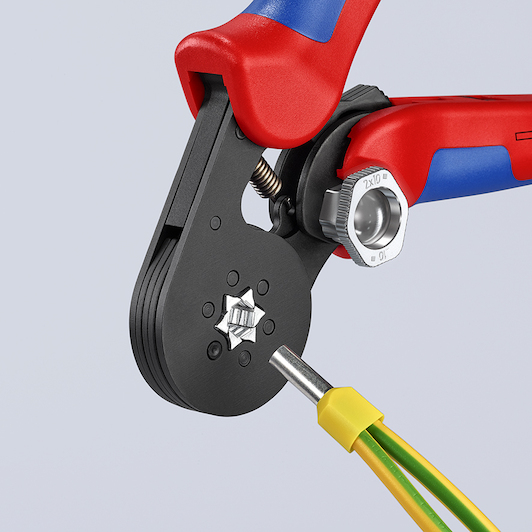

  • Auch für alle Twin-Aderendhülsen bis 2 x 10 mm² oder 2 x AWG 8

Documents

⤓ Product sheet PDF

All Features

Min. conductor cross-sectional area
0,08 mm²
Pliers type
Ferrule crimping pliers
Number of crimping profiles
1
Surface treatment (pliers)
Blackened
Overall length
180 mm
Hydraulical
No
Weight
445 g
Max. conductor cross-sectional area
6 mm²
Dimensions
180 x 75 x 21 mm
Handle
with multi-component handle
Reach compliance
contains SVHC
Rohs compliance
irrelevant
Weight
445 g
Tang
burnished
  • Brand KNIPEX
  • EAN 4003773041474
  • Supplier number KNIPEX 97 53 14

Frequently asked questions about this product

Answered by specialists
Which ferrule sizes are compatible with these crimping pliers?
They are suitable for wire ferrules from 0.08 mm² to 16 mm² and twin ferrules up to 2 x 10 mm².
What crimp profile does this tool create?
It creates a hexagonal crimp profile, which is ideal for tight spaces and narrow connection dimensions.
How do you adjust the tool for different ferrule sizes?
The pliers adjust automatically to the required ferrule size and ensure consistent crimping with an integral ratchet lock.
How are the wire ferrules inserted into the tool?

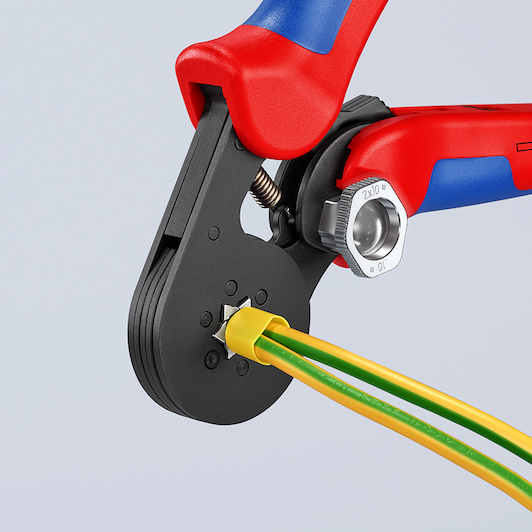

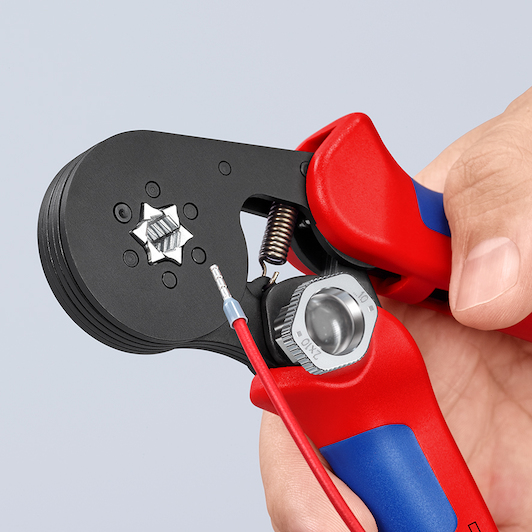

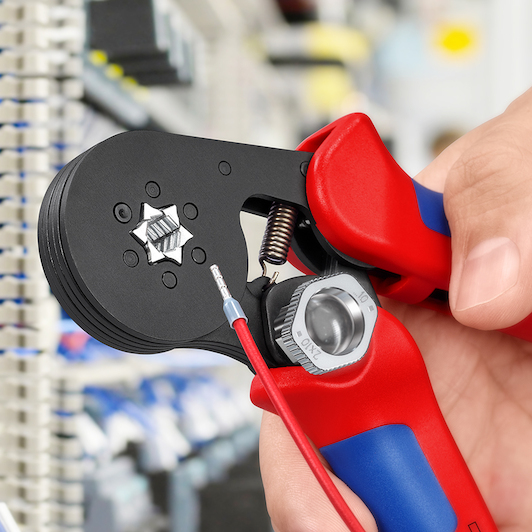

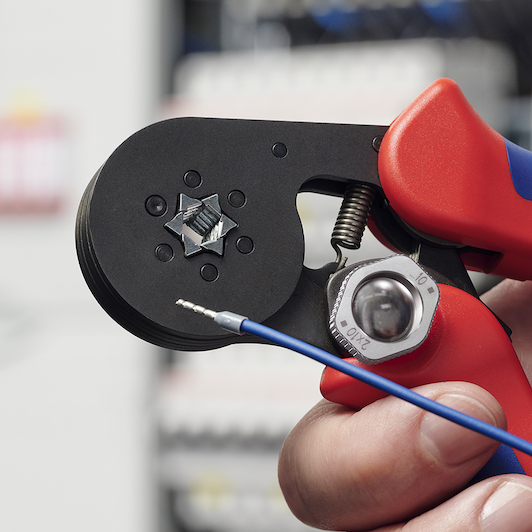

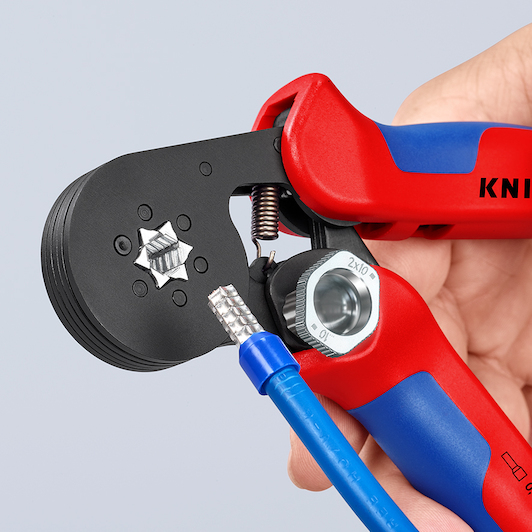

Wire ferrules are inserted conveniently from the side (lateral access) of the crimping head.
Is this tool insulated for live electrical work?
No, the multi-component grips provide comfort and secure handling, but they are not insulated for live working.
Questions about this product?

Our product specialists are happy to help with any questions about this range. Call, email or chat with us!

Chat with us
0800 0226 945 [email protected]

Reviews about KNIPEX 97 53 14 self-adjusting crimping pliers for end sleeves with side entry with multi-component handles browned 180 mm

9,3 op 10
7 review(s)
5 stars
(5)
4 stars
(1)
3 stars
(1)
2 stars
(0)
1 stars
(0)
Review Terms and Conditions Klium
10/10

Goede kwaliteit en fijn om mee te werken

Arno
22/07/2023
10/10

Werkt uitstekend

Aart
16/12/2020
10/10

-

Robin
21/05/2019
10/10

Knipex levert gewoon prima producten, dat is de reden waarom ik gekozen heb voor de krimptang van dit merk. Een soort zekerheid een goed werkend tool te kopen.

Kleine Klus Tak
02/05/2019
10/10

Werkt perfect. Had niet anders van Knipex verwacht. Tang koppelt precies op het goede moment los ongeacht diameter eindader-huls.

Rob Strik/Dominicus College
14/10/2017
8/10

-

20/06/2017
7/10

werkt goed

chris heijt
20/05/2017
