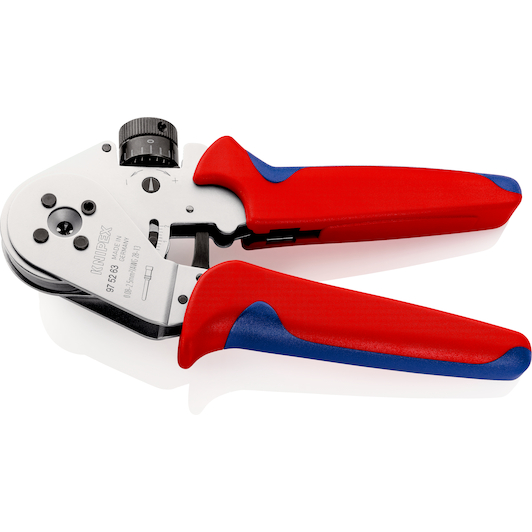

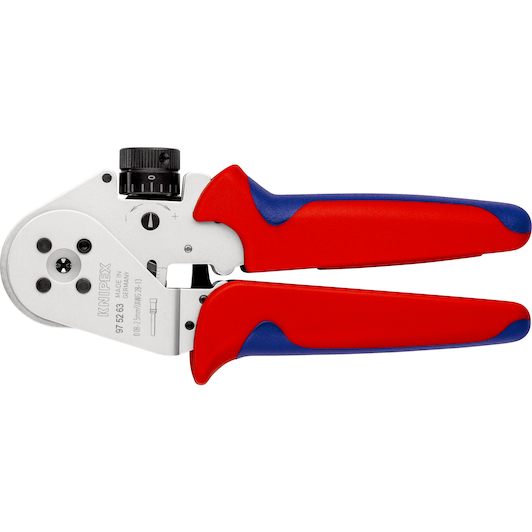

Product description
- With mounted contact holder for crimping turned pin and socket contacts from Phoenix Contact for plug series RC/SC/SI

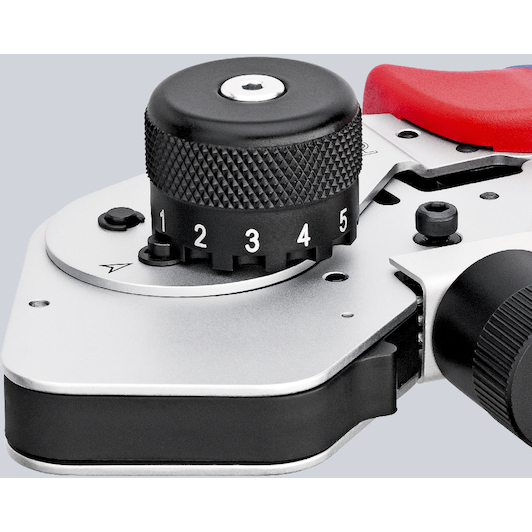

- Shrink mandrel feed adjustable in 0.01 mm steps using the setting wheel
- Reliable crimp connection thanks to synchronised crimp mandrel feed
- Quality assurance for consistently high-quality crimp joints thanks to locking mechanism in accordance with IEC 60352 (forced locking, unlockable)
- With recalibration function; verification of basic setting with supplied test pin
- The application range of the crimping pliers can be extended by changing the contact fittings of different plug manufacturers
- High operating comfort thanks to handy design

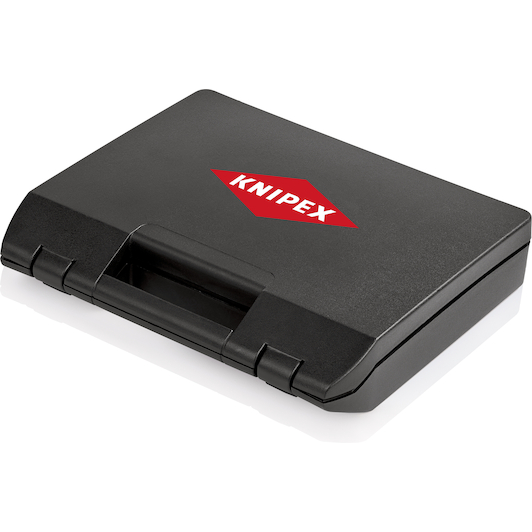

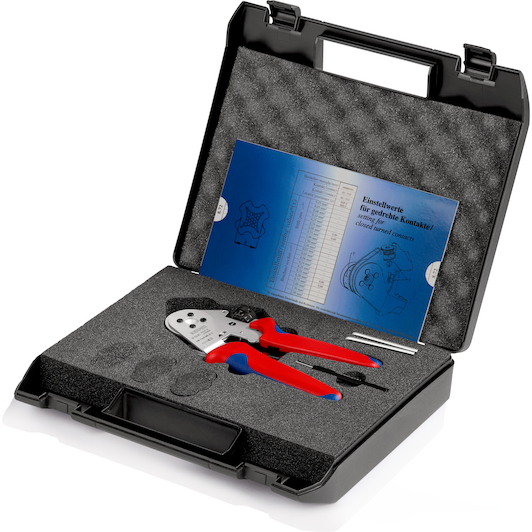

- Pliers in plastic case with foam insert and fitted (exchangeable) contact holder
- Fine and precise crimp pressure adjustment on different cable diameters using an adjustable wheel
- Pliers in plastic case with foam lining and positioning aid for contact take-up
Key features according to our expert
-
Min. wire cross-section: 0,08 mm²
-
Pliers type: Ferrule crimping pliers
-
Number of crimp profiles: 1
-
Length: 180 mm
-
Max. wire section: 25 mm²
Specifications / All features
-
Brand:
KNIPEX
-
41191598
-
EAN:
4003773050148
-
Supplier number:
KNIPEX 97 52 63
- Min. wire cross-section
- 0,08 mm²
- Pliers type
- Ferrule crimping pliers
- Number of crimp profiles
- 1
- Length
- 180 mm
- Max. wire section
- 25 mm²
- Cup
- chromed
- Handle
- with multi-component handle
- Reach compliance
- contains SVHC
- Contact diameter max.
- 5 mm
- Rohs compliance
- irrelevant
- Weight
- 388 g
- Use
- twisted contacts
- Dimensions
- 180 x 67 x 37 mm
- Tang
- chromed
