What types of connectors are these crimping pliers designed for?

They are designed for solder-free crimping of non-insulated cable lugs and connectors.

Which cable cross sections does this tool accommodate?

The pliers feature 2 crimping positions suitable for conductor capacities of 16 mm² and 25 mm².

How does the tool reduce the required physical effort?

The toggle lever transmission reduces hand force by up to 30% and allows for effective two-hand operation.

How does the tool ensure reliable crimping quality?

Factory-calibrated crimp pressure and an unlockable ratchet mechanism ensure the pliers release only after full crimping.

Are the crimping dies interchangeable on this model?

No, the crimping dies are fixed into the plier head and are not exchangeable.

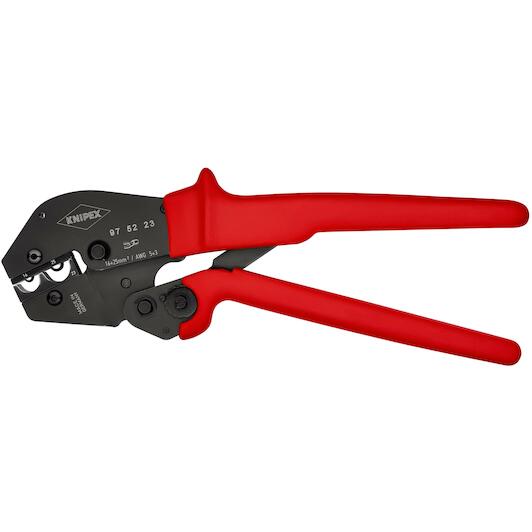

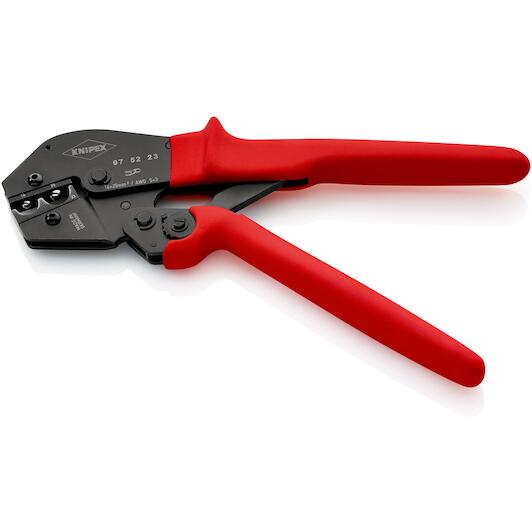

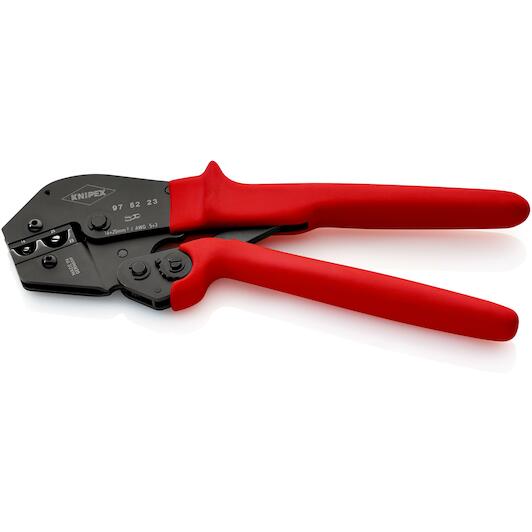

KNIPEX 97 52 23 crimping pliers also double-handed with non-slip plastic coating browned 250 mm

Name: KNIPEX 97 52 23 crimping pliers also double-handed with non-slip plastic coating browned 250 mm
Brand: KNIPEX
SKU: 41191601
Price: 134.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 52 23 | EAN 4003773052159

Recommended Retail Price €200.50

134.80 tax incl.

€111.40 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

Ordered before 20:00 - delivered as of 21/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Effortless crimping with Knipex reliability

Practical benefits

Reduced manual crimping effort: High-ratio lever transmission significantly lowers the hand force you need when crimping heavy-gauge terminals.
Comfortable two-handed operation: The extended non-slip handles allow you to use both hands easily for large cable cross-sections.
Consistently accurate connection results: An unlockable integral ratchet mechanism ensures the pliers open only after achieving full crimping pressure.

In a nutshell

The right choise for

With the Knipex 97 52 23 crimping pliers, you achieve reliable, solder-free electrical connections on heavy-gauge cables. Designed for non-insulated cable lugs and connectors with cross sections of 16 to 25 mm², this tool features two precision crimping positions. The toggle lever transmission reduces the required hand force by up to 30%, while the 250 mm long handles with non-slip plastic grips allow comfortable two-handed operation for thicker conductors. An unlockable ratchet mechanism combined with factory-calibrated pressure ensures the pliers release only when the full crimp cycle is complete. This gives you consistent, secure results during panel building and industrial maintenance work.

Product information FAQ

€134.80

tax incl.

Key features according to our expert

Min. wire cross-section: 16 mm²
Pliers type: Cable lug crimping pliers
Number of crimping profiles: 2
Overall length: 250 mm
Max. wire section: 25 mm²

Product description

For solder-free electrical connections
Up to 30% less hand force required compared to common crimping pliers thanks to lever transmission
Consistently high crimp quality thanks to precision jaws and forced-closure (unlockable)
Crimp pressure is set accurately at the factory (calibrated)
Two-handed operation for easy crimping of large cable diameters
Good handling thanks to balanced centre of gravity, curved head and ergonomically shaped handles
Crimping insert is not interchangeable

Documents

⤓ Product sheet PDF

All Features

Min. wire cross-section: 16 mm²
Pliers type: Cable lug crimping pliers
Number of crimping profiles: 2
Overall length: 250 mm
Max. wire section: 25 mm²
Weight: 565 g
Handle: with non-slip plastic covering
Capacity square millimetres: 16 / 25 mm²
Number of crimp profiles: 2
Reach compliance: contains SVHC
Rohs compliance: irrelevant
Cup: burnished
Dimensions: 250 x 79 x 24 mm
Use: non-insulated cable lugs + cable connectors
Awg: 6 / 4
Tang: burnished

Brand KNIPEX
41191601
EAN 4003773052159
Supplier number KNIPEX 97 52 23

Frequently asked questions about this product

Answered by specialists

What types of connectors are these crimping pliers designed for?: They are designed for solder-free crimping of non-insulated cable lugs and connectors.
Which cable cross sections does this tool accommodate?: The pliers feature 2 crimping positions suitable for conductor capacities of 16 mm² and 25 mm².
How does the tool reduce the required physical effort?: The toggle lever transmission reduces hand force by up to 30% and allows for effective two-hand operation.
How does the tool ensure reliable crimping quality?: Factory-calibrated crimp pressure and an unlockable ratchet mechanism ensure the pliers release only after full crimping.
Are the crimping dies interchangeable on this model?: No, the crimping dies are fixed into the plier head and are not exchangeable.
